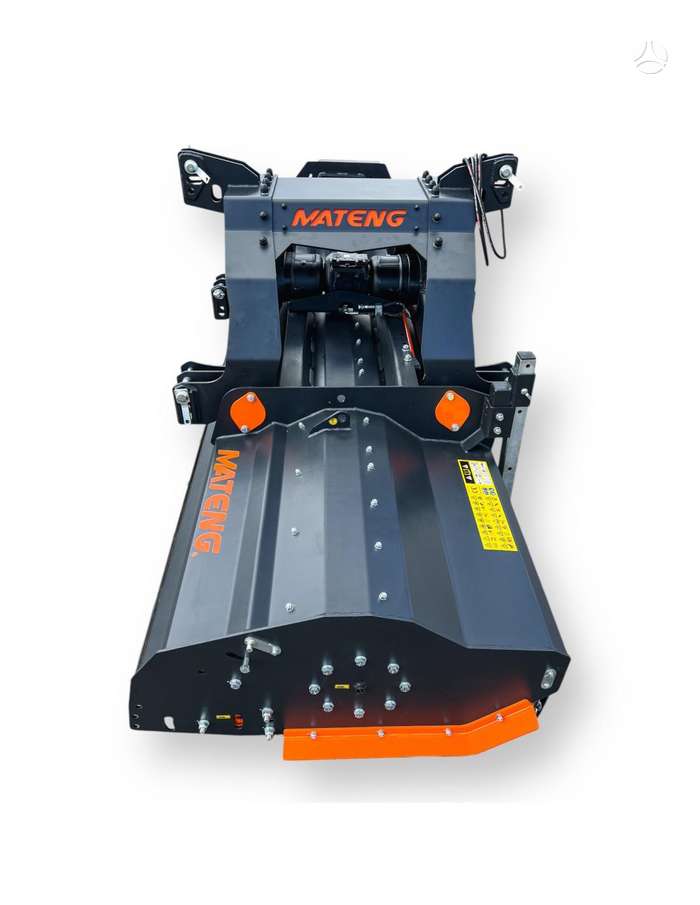

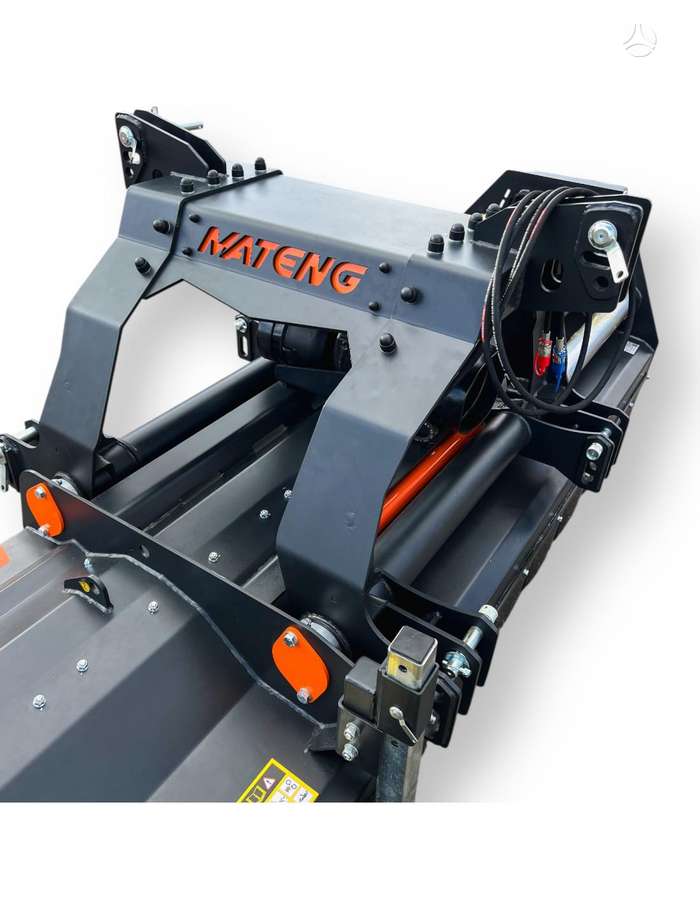

MATENG RFMax 280 - sunki, tvirtos konstrukcijos plaktukinė žoliapjovė (mulčeris) su hidrauline pastūma į šoną, skirta profesionaliam naudojimui, pjauti-mulčiuoti aukštą ir netvarkingą žolę, smulkius krūmus ir šakas. Šis mulčeris tinka traktoriams nuo 185AG (arklio galių). Žoliapjovė tvirtinama traktoriaus gale prie trijų taškų prikabinimo sistemos, varoma 1000 aps./min greičiu nuo darbinio veleno (PTO) sujungtu kardanu. RFMax 280 žoliapjovę galima kabinti ir ant traktoriaus priekinės pakabos. Reduktorius perduoda sukimą per 5 trapecinius diržus į horizontaliai sumontuotą pjovimo veleną, ant kurio pritvirtinti pjovimo plaktukai. RFMax 280 žoliapjovė komplektuojama su tvirtais ir sunkiais “T” formos plaktukais, kurio vieno svoris - 1,200 Kg. Hidraulinio cilindro pagalba galima keisti žoliapjovės padetį - pastumti ją į šoną, horizontalia kryptimi (pajungimui reikalingos dvi hidraulikos jungtys). Pjovimo aukštis reguliuojamas trimis padėtimis, gale žoliapjovės esančiu volu. Nupjautos žolės išmetimo srautą galima nukreipti už galinio veleno arba prieš jį, tokiu būdų žolė dar labiau susmulkinama (sumulčiuojama).
Modelis: RFMax 280
Rekomenduojama traktoriaus galia (AG): nuo 185
Darbinis plotis (cm): 280
Plaktukų kiekis (vnt.): 24
Plaktuko svoris (kg): 1,2
Peilių veleno skersmuo (mm): 205
Darbinio veleno - PTO greitis (aps./min.): 1000
Prikabinimo tipas: Trijų taškų sistema
Prikabinimo kategorija: 2 ir 3
Hidraulinė pastūma į šonus: Yra
Diržų kiekis (vnt.): 5
Svoris (kg): 1570
Kardaninis velenas: Yra komplekte, 6-ių išdrožų abiejuose galuose
Prekės būklė: Nauja
Garantija: 12 mėnesių
Gamintojas: "MATENG", Kinija
Kaina su mokesčiais: 7200 Eur.
www.litechnija.lt

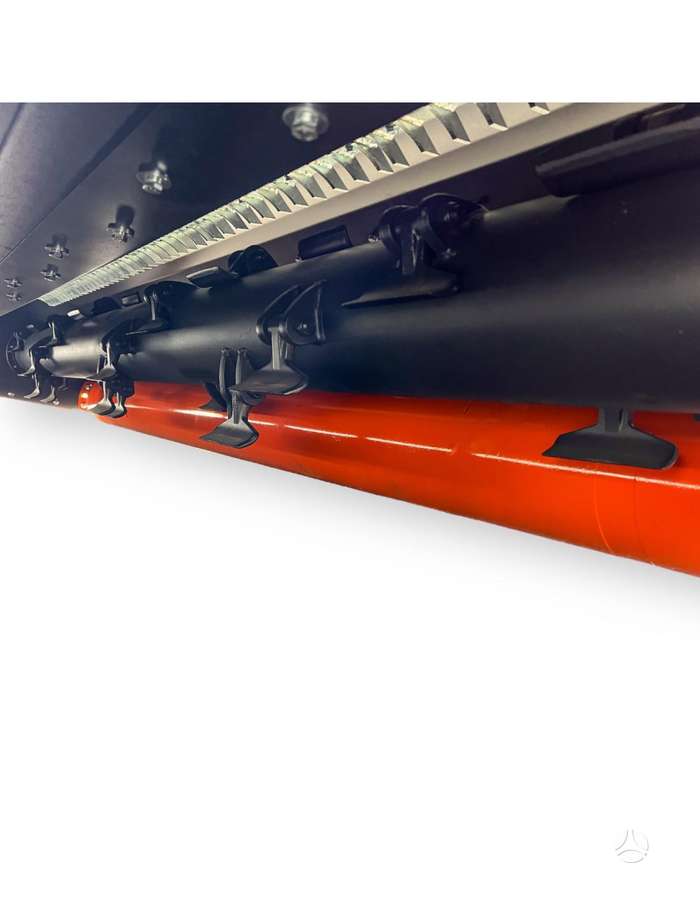

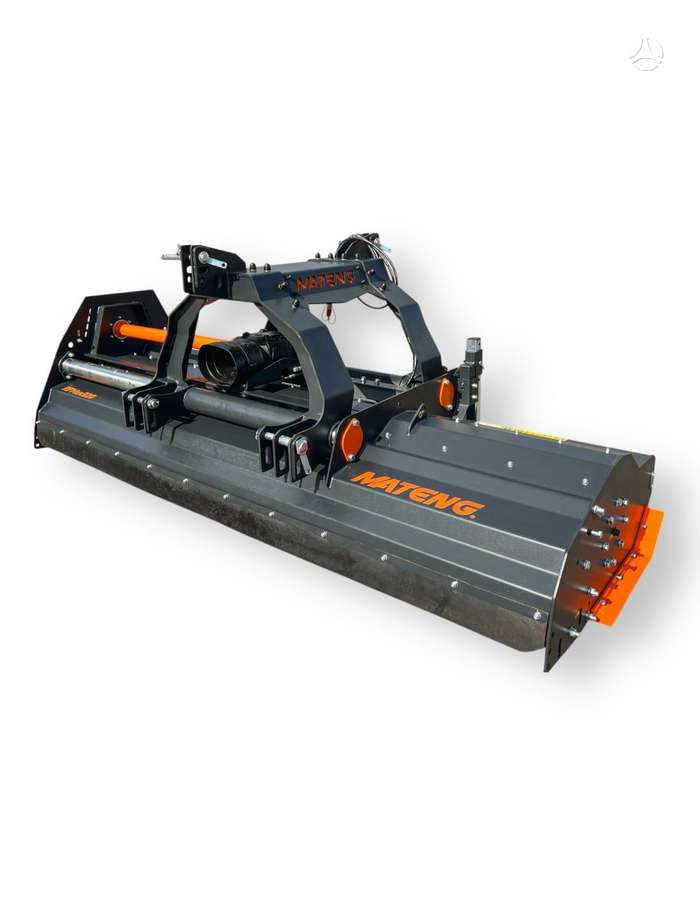

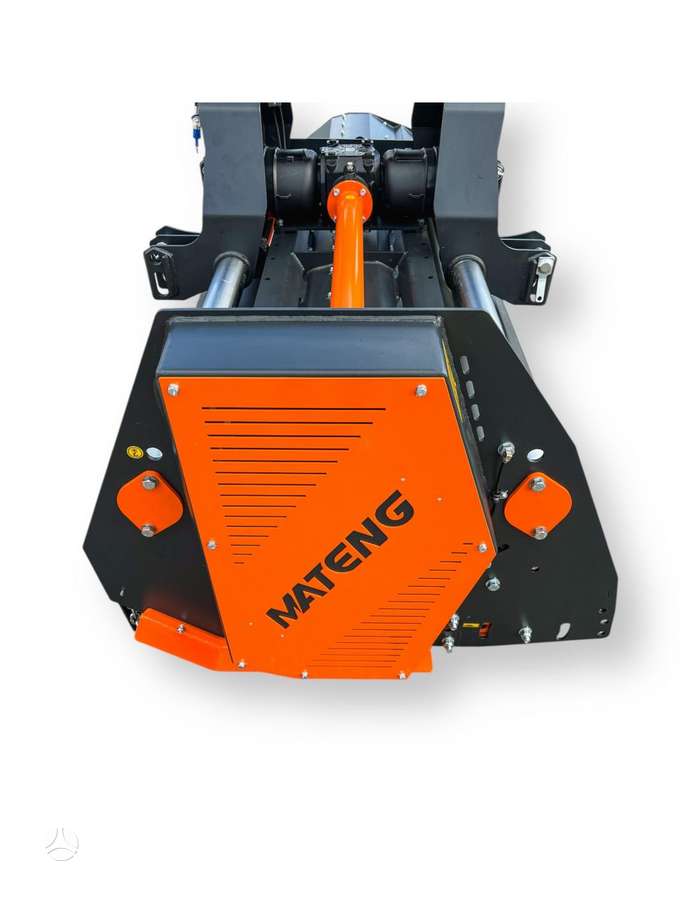

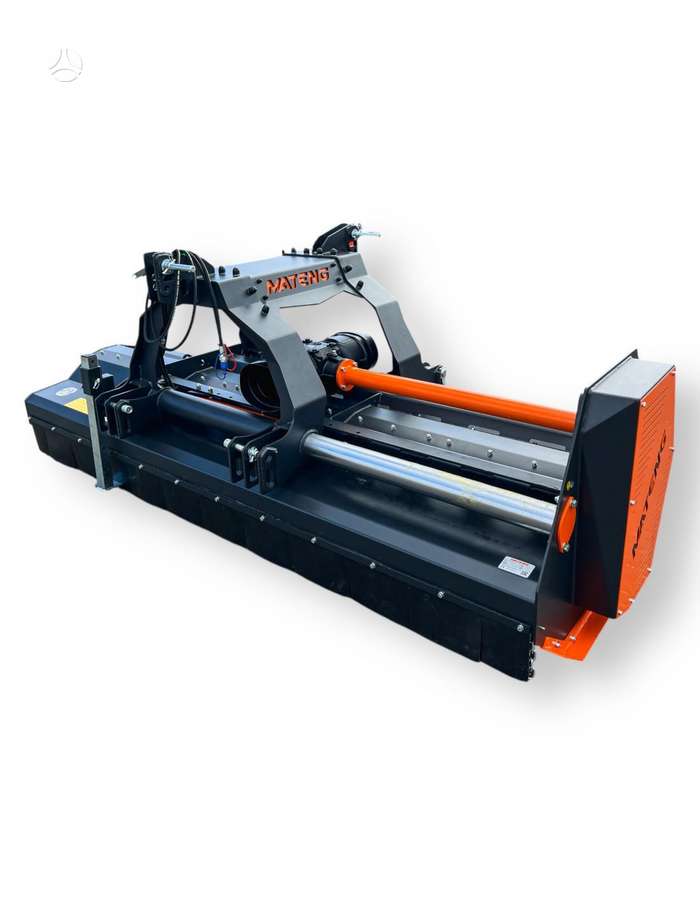

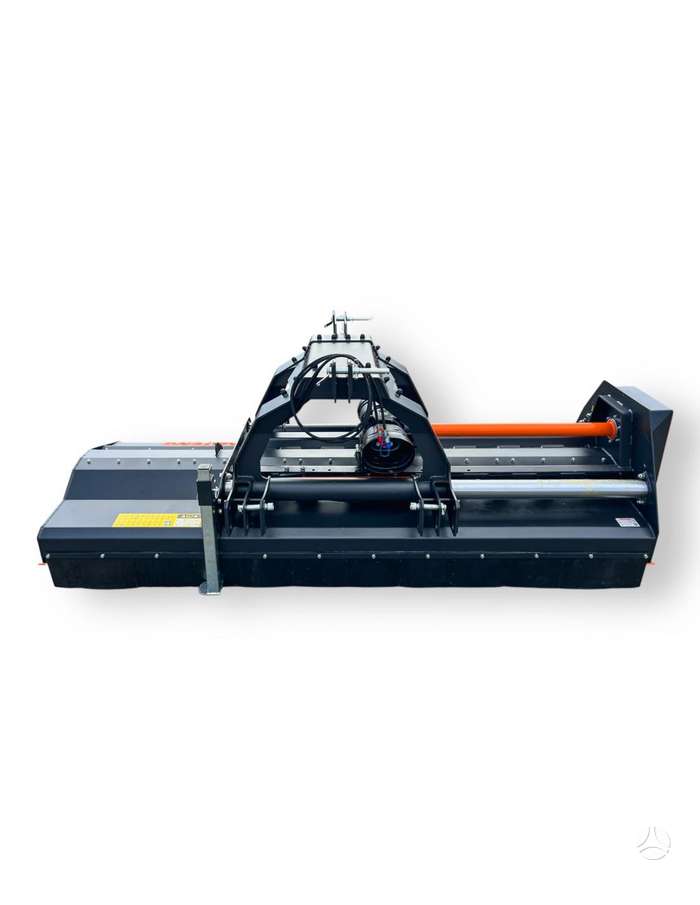

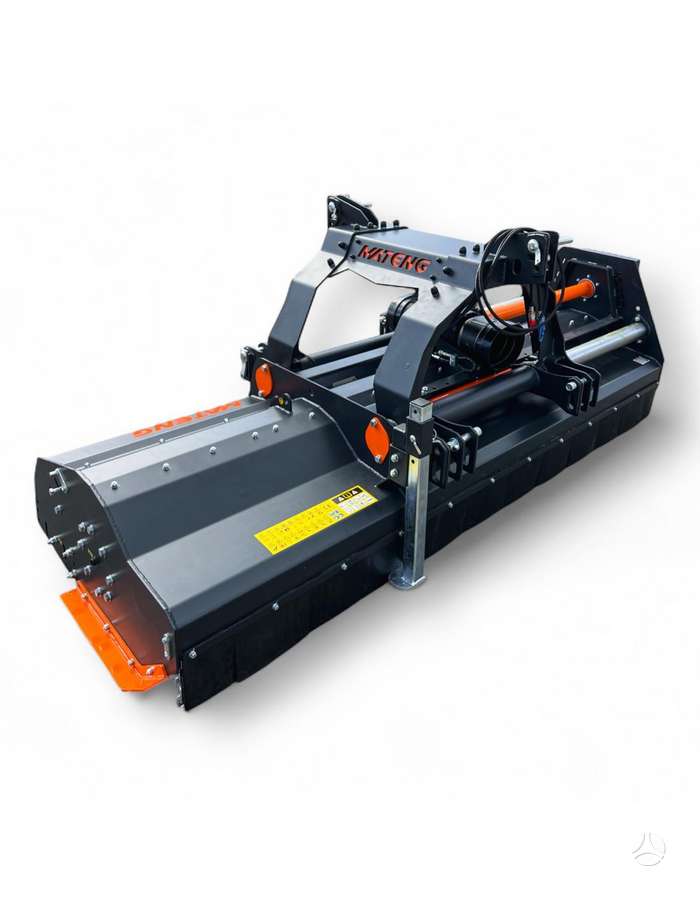

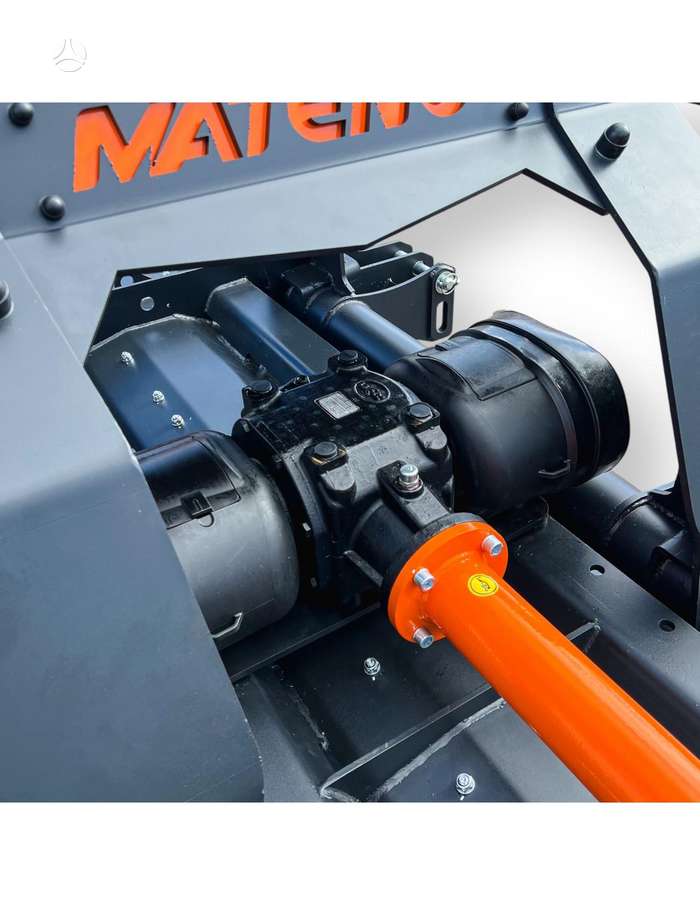

MATENG RFMax 280 - a heavy, robustly constructed flail mower (mulcher) with hydraulic side shift, designed for professional use to cut and mulch tall and unkempt grass, small bushes, and branches. This mulcher is suitable for tractors from 185HP (horsepower). The mower is mounted at the rear of the tractor to a three-point hitch system, driven at 1000 rpm from the power take-off (PTO) via a connected PTO shaft. The RFMax 280 mower can also be mounted on the tractor's front linkage. The gearbox transfers rotation through 5 V-belts to a horizontally mounted cutting rotor, on which the cutting hammers are attached. The RFMax 280 mower is equipped with strong and heavy "T" shaped hammers, each weighing 1.200 kg. With the help of a hydraulic cylinder, the position of the mower can be changed - shifted sideways in a horizontal direction (two hydraulic connections are required for connection). The cutting height is adjustable in three positions using the roller located at the rear of the mower. The discharge flow of the cut grass can be directed behind the rear roller or in front of it, in which way the grass is shredded (mulched) even more.
Model: RFMax 280
Recommended tractor power (HP): from 185
Working width (cm): 280
Number of hammers (pcs.): 24
Hammer weight (kg): 1.2
Blade rotor diameter (mm): 205
PTO speed (rpm): 1000
Hitch type: Three-point system
Hitch category: 2 and 3
Hydraulic side shift: Yes
Number of belts (pcs.): 5
Weight (kg): 1570
PTO shaft: Included, 6-spline at both ends
Condition: New
Warranty: 12 months
Manufacturer: "MATENG", China
Price including taxes: 7200 Eur.
www.litechnija.lt
