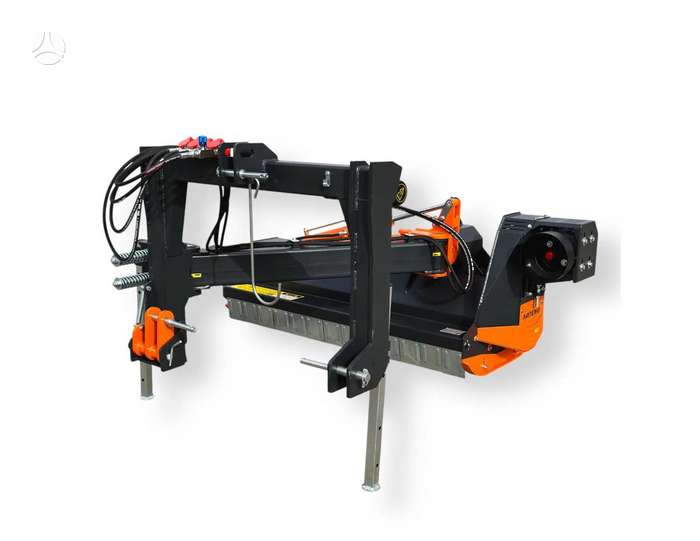

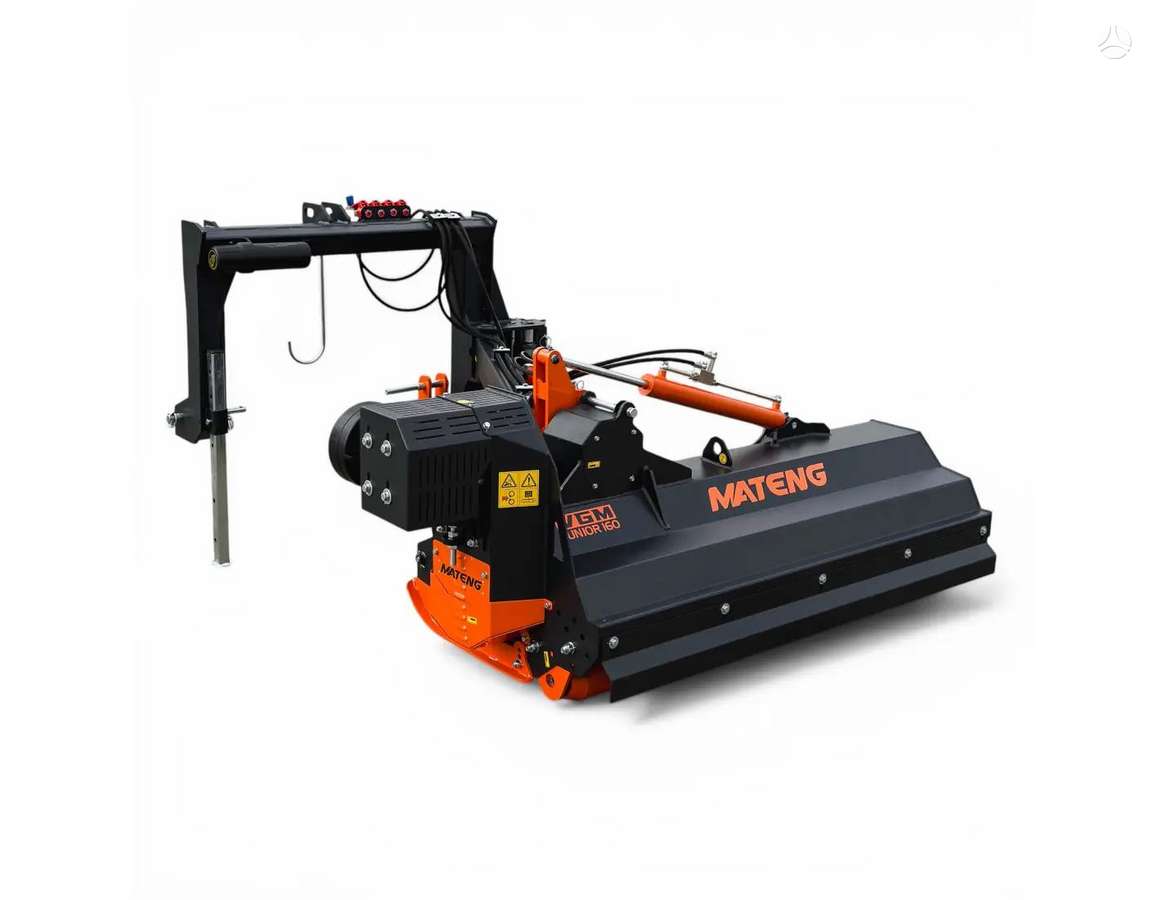

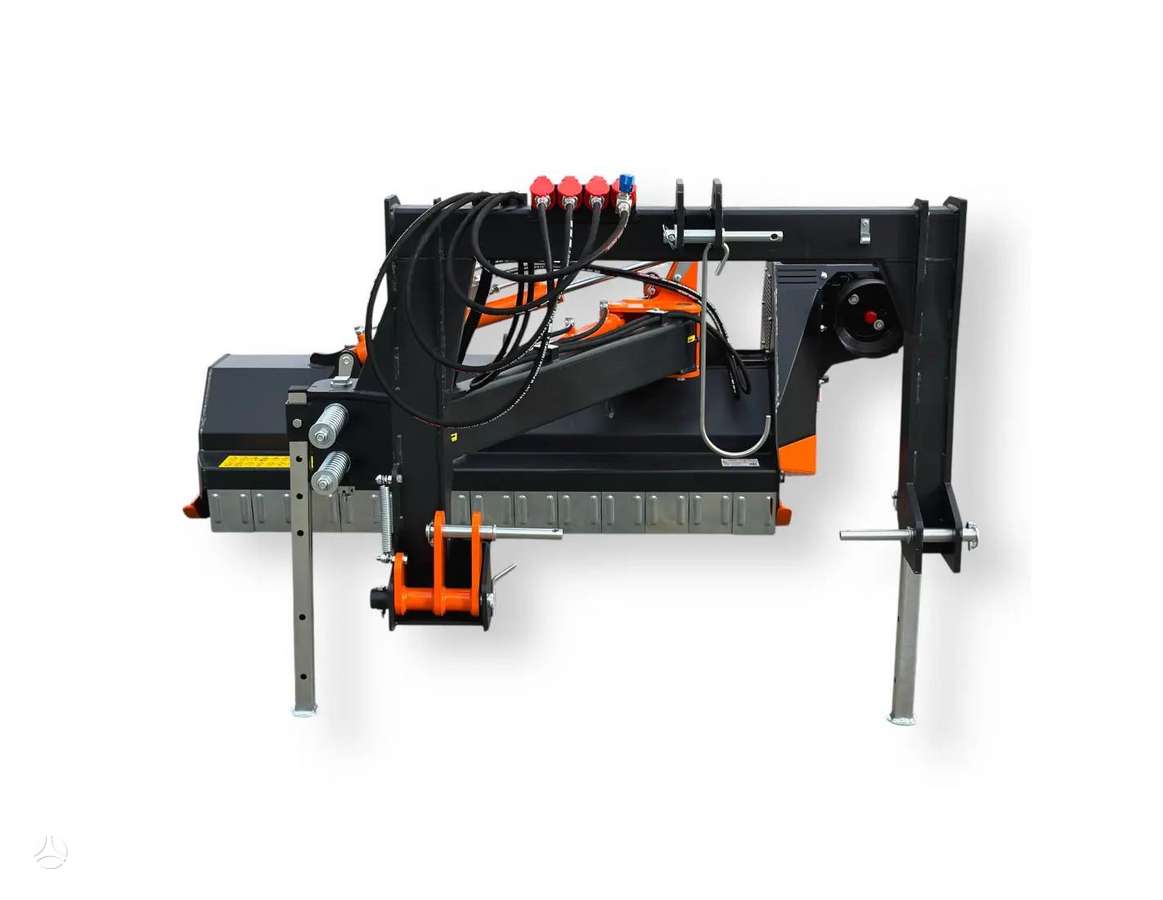

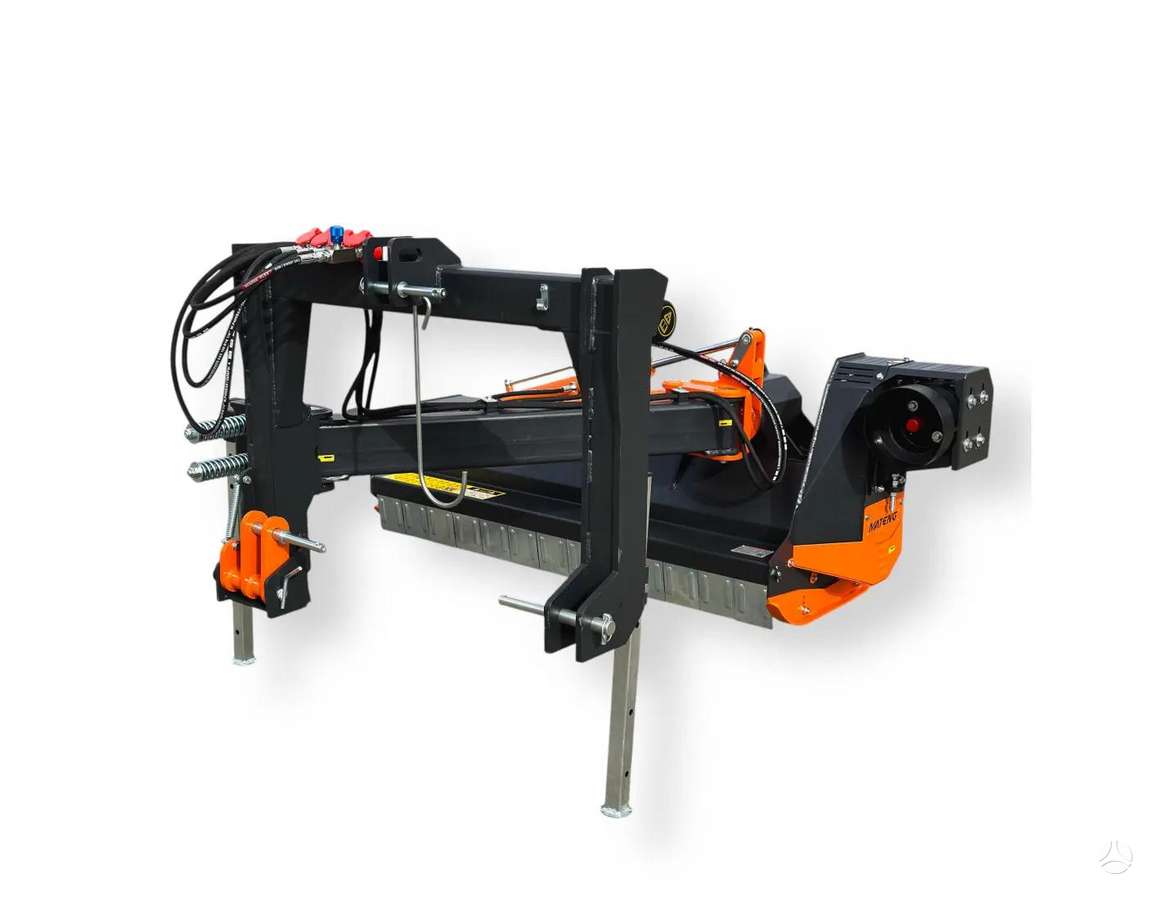

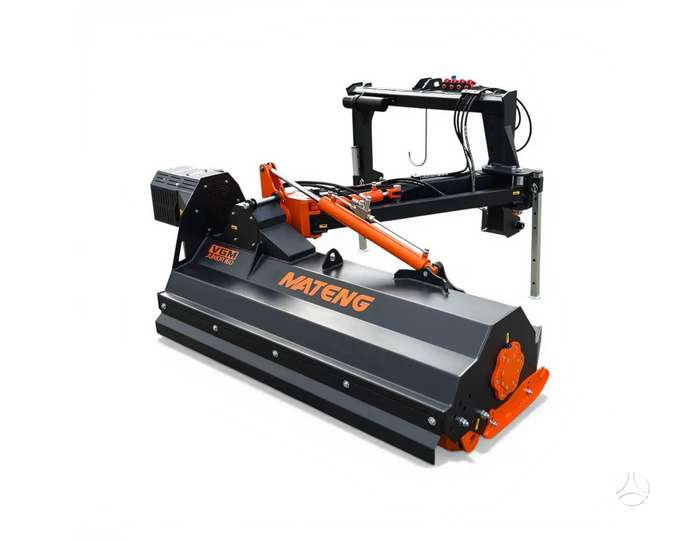

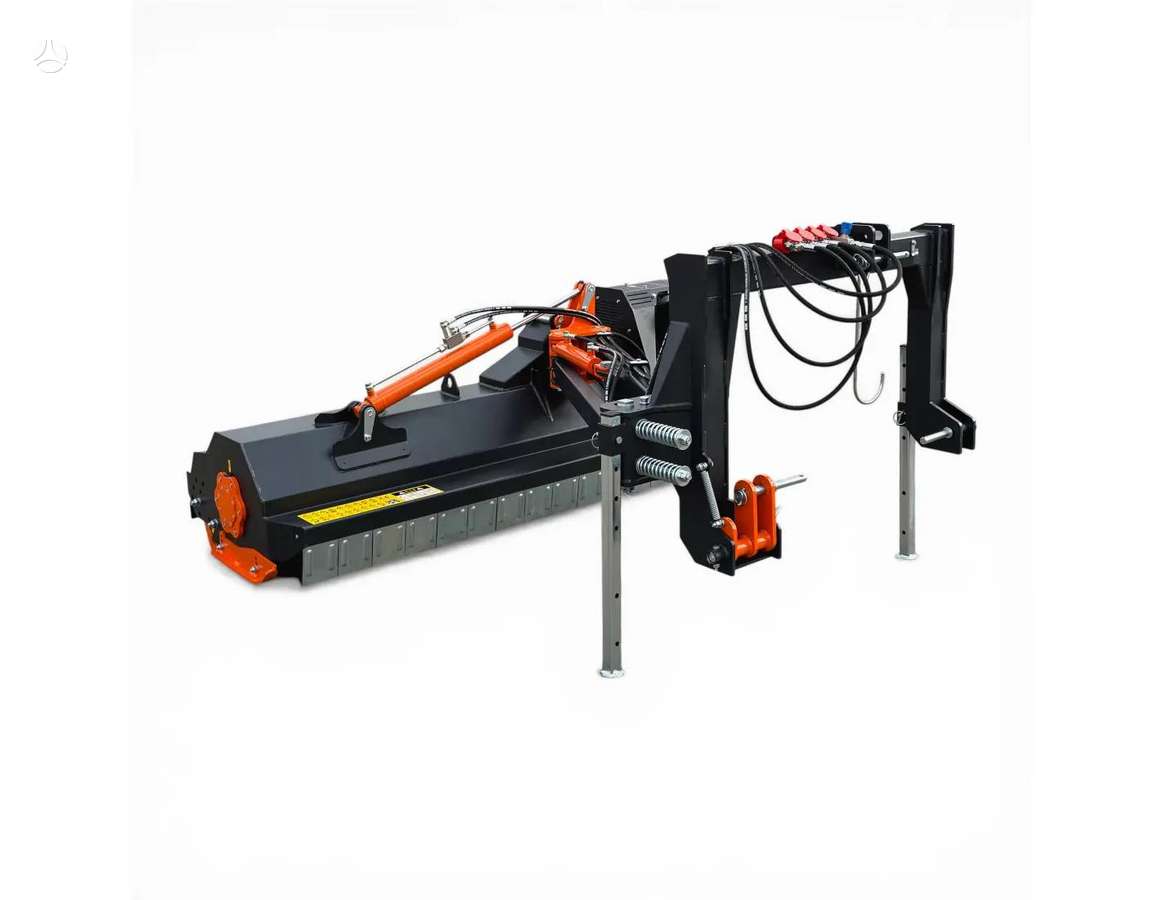

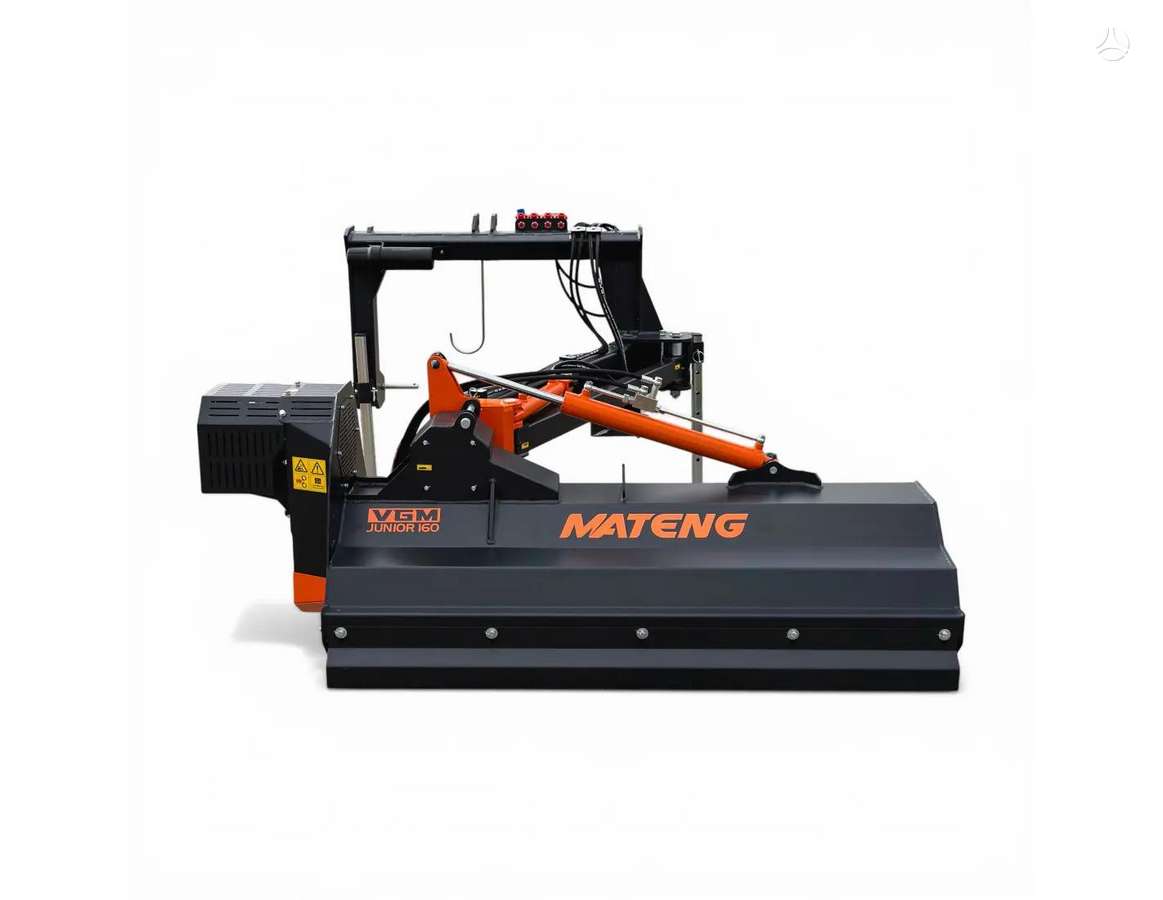

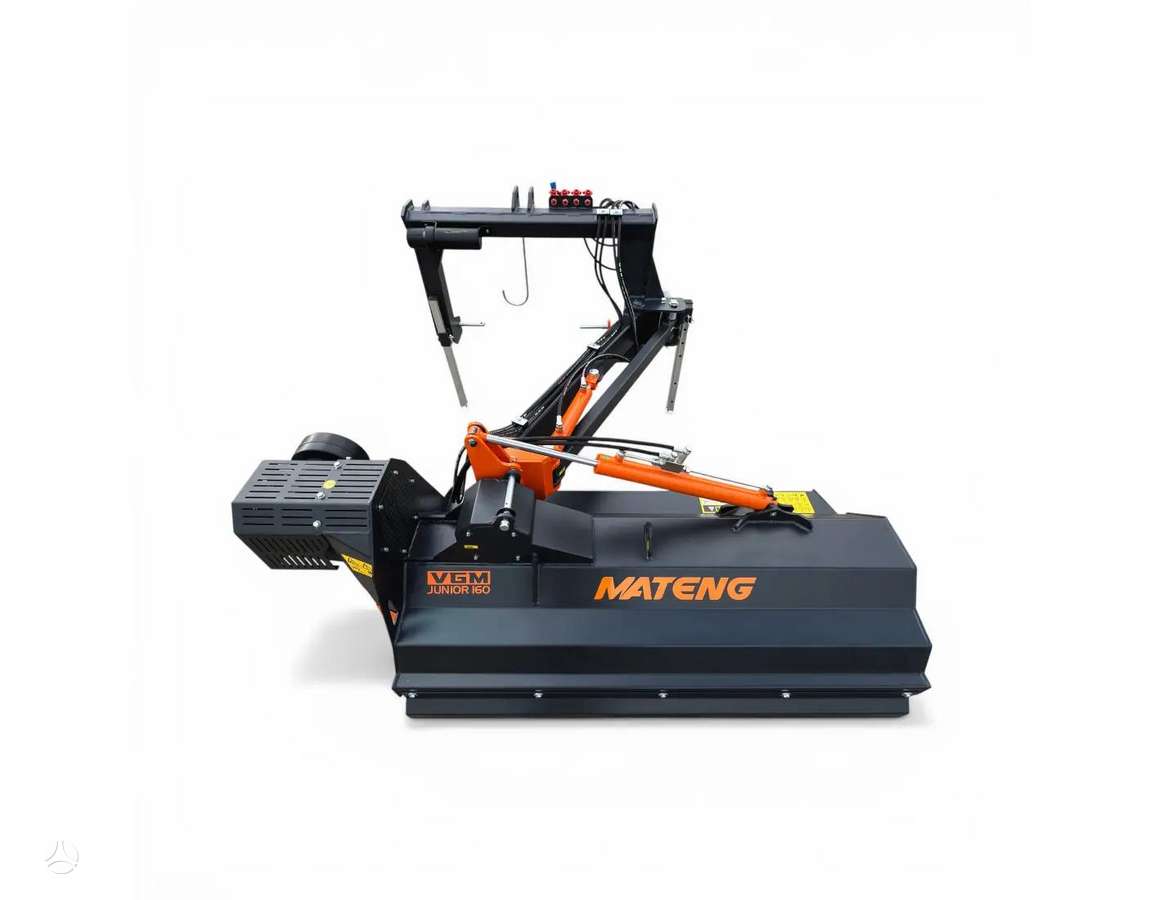

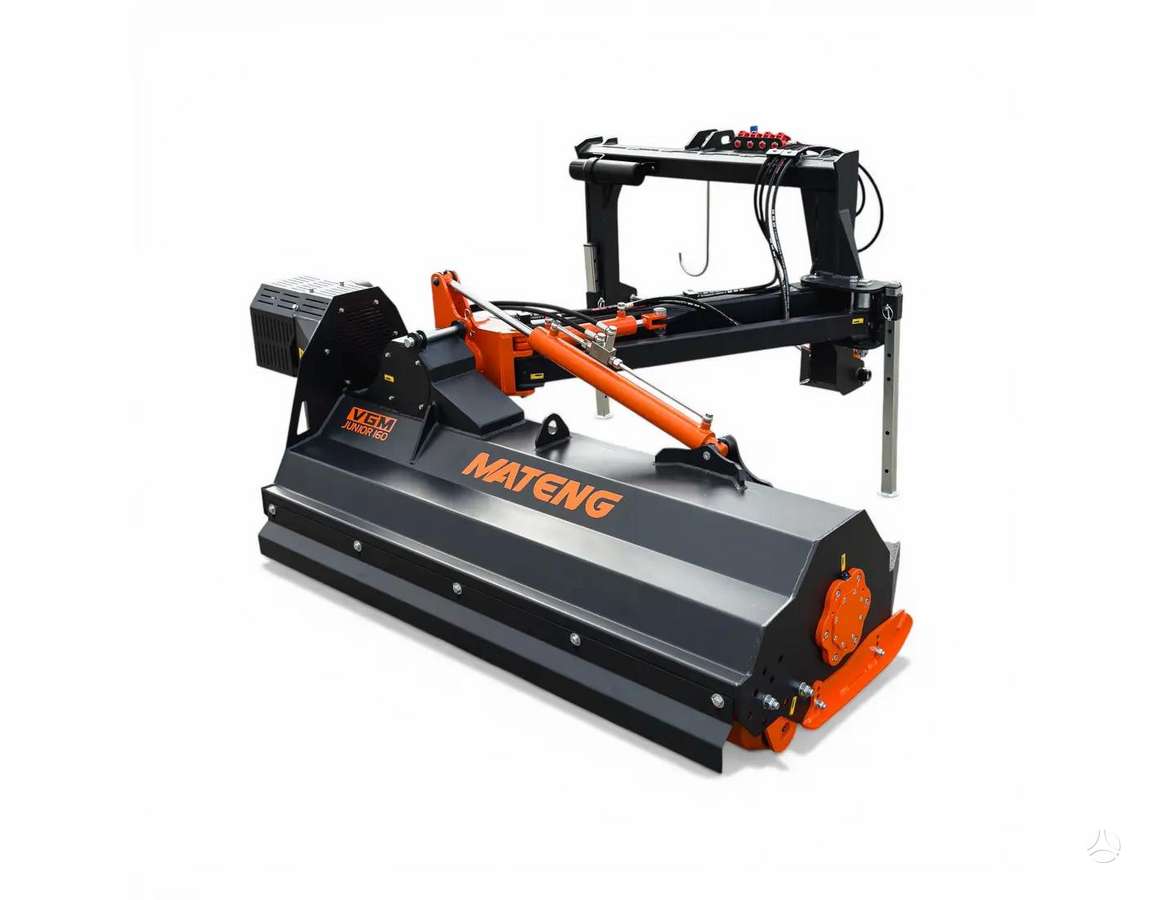

Flail mower MATENG VGM JUNIOR180

Model: VGM JUNIOR-160;
Recommended tractor power (HP): 70-100;
Working width (cm): 180;
Number of hammers (pcs.): 24;
Hammer weight (kg): 0.750;
Blade shaft diameter (mm): 127;
Hydraulic tilt: down to 50°, up to 90°;
Hitch type: Three-point system;
Hitch category: 1 and 2;
Weight (kg): 551;
PTO shaft: Included, 6-spline on both ends;
Item condition: New;
Warranty: 12 months;
Manufacturer: "MATENG", China.

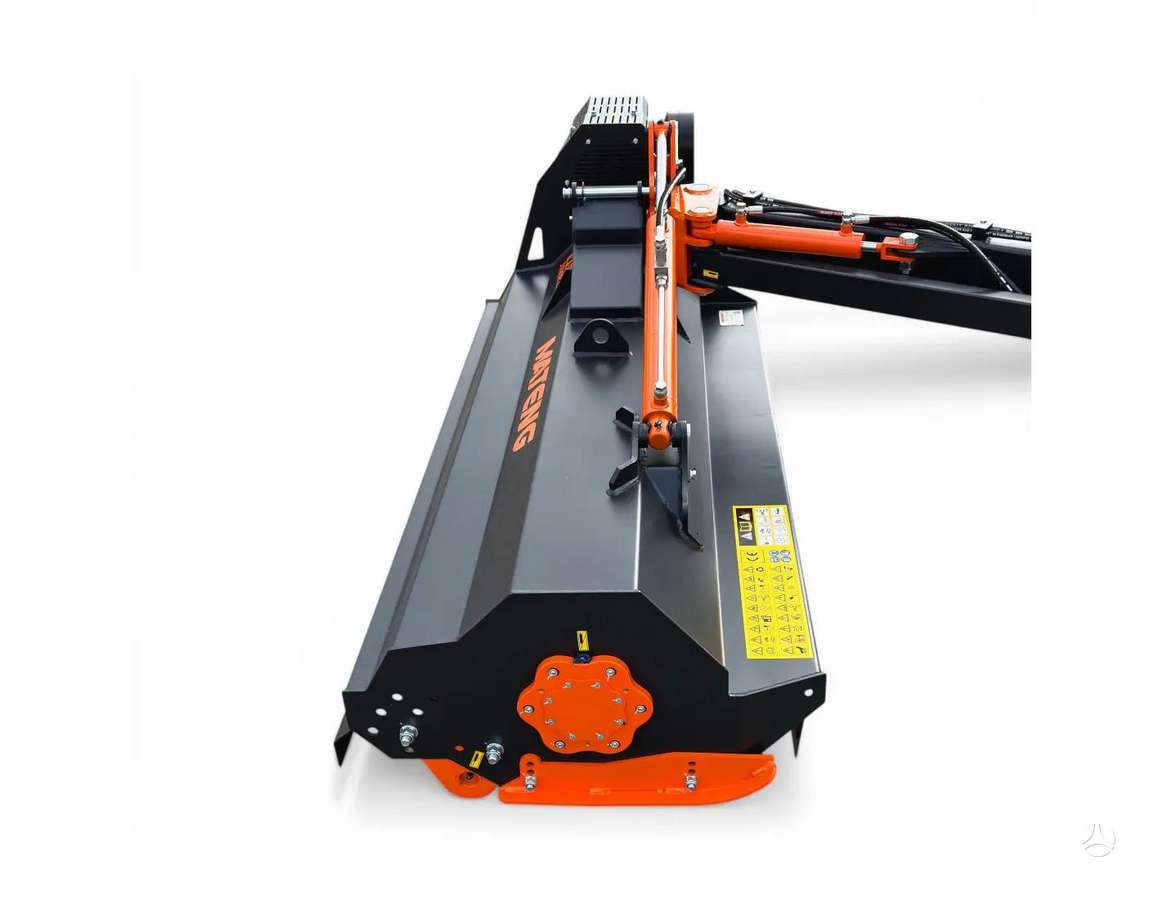

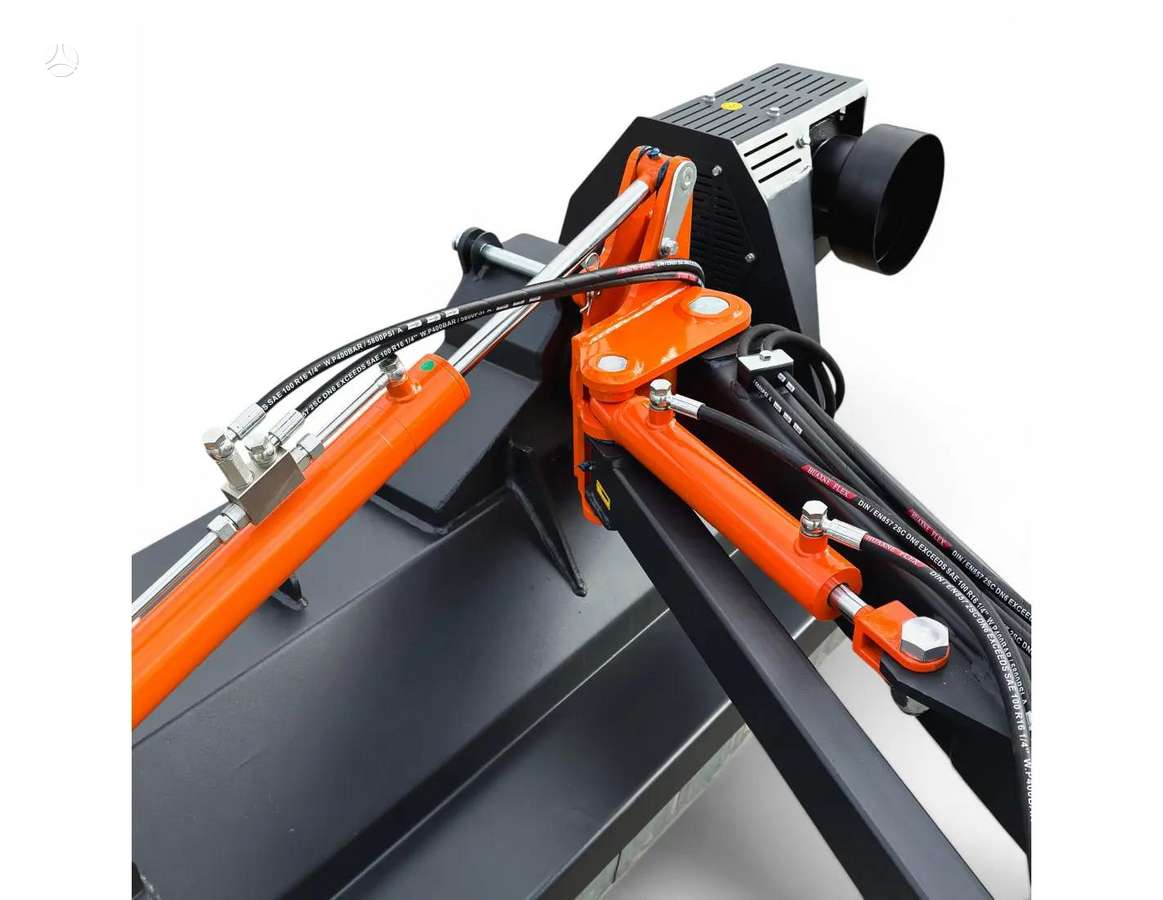

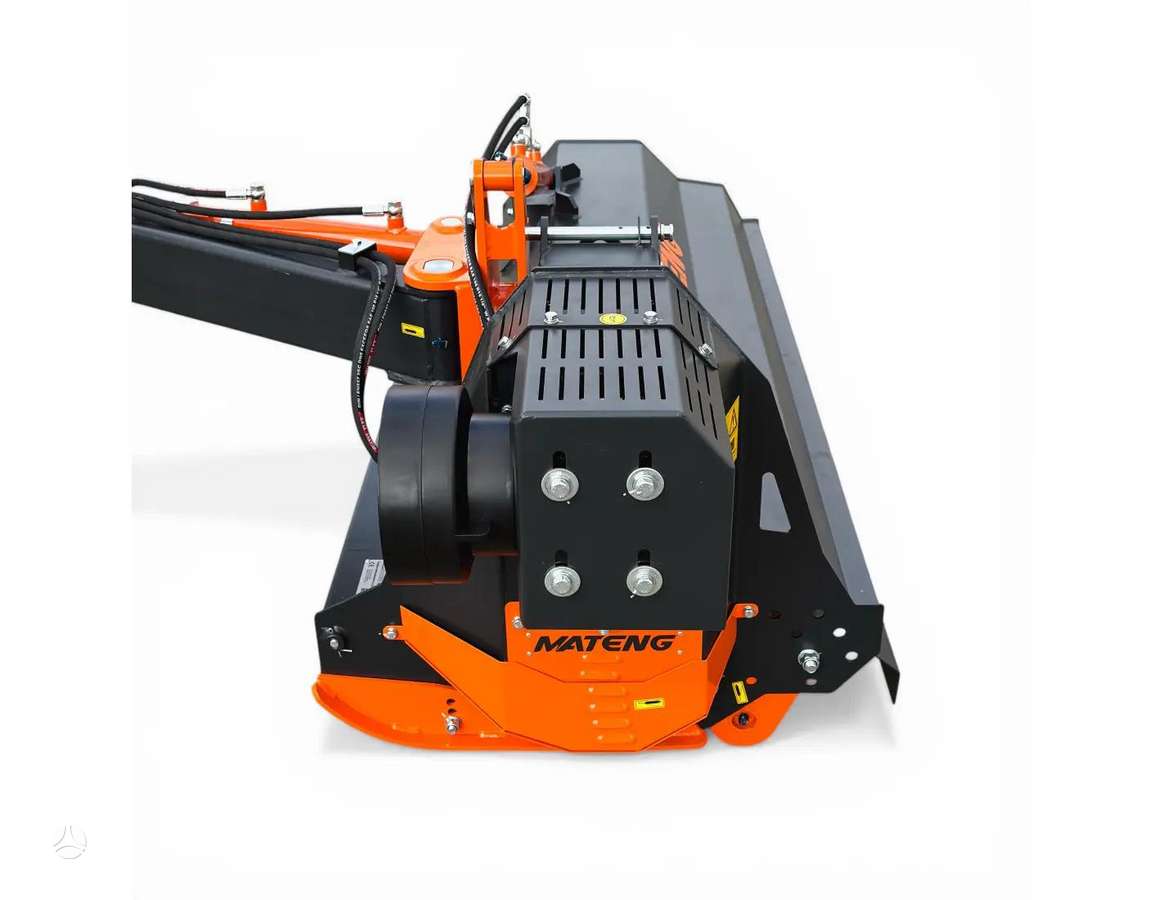

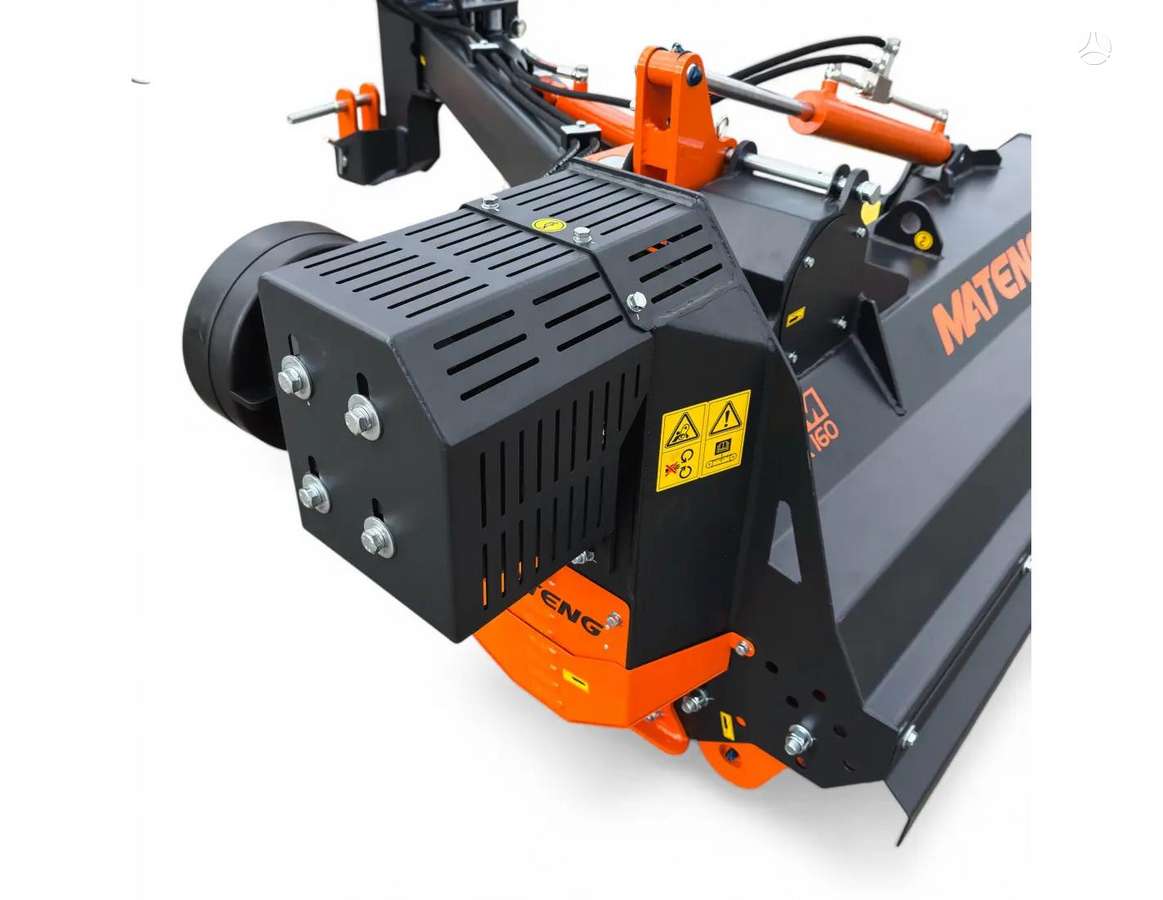

MATENG VGM JUNIOR180 - a robust, heavy-duty series, verge mower (mulcher). This mower is designed for professional use, for cutting and mulching tall and untidy grass, as well as small branches on slopes, roadsides, water body banks, and uneven surfaces. VGM JUNIOR180 is suitable for tractors from 70 HP (horsepower). The mower is mounted at the rear of the tractor to the three-point hitch system, driven at 540 rpm from the power take-off (PTO) connected by a PTO shaft. The gearbox transfers rotation through 4 V-belts to the cutting shaft on which the cutting hammers are mounted. The blade shaft bearings with housings are conveniently and easily maintained and replaced if necessary. The VGM JUNIOR180 mower is equipped with sturdy "T" shaped hammers, each weighing 0.750 kg. The cutting height is adjusted using the support roller and side support skids. The support roller has two operating positions: the cut grass is thrown behind the roller or the cut grass is thrown in front of the roller (compressed). In VGM JUNIOR models, the support roller bearings are mounted inside it, which extends their service life. With the help of the hydraulic arm, the position of the mower can be changed in certain directions - horizontally and vertically to the surface being cut (four hydraulic connections at the rear of the tractor are required for connection). The tilt angle downwards is up to 50°, upwards up to 90°.
