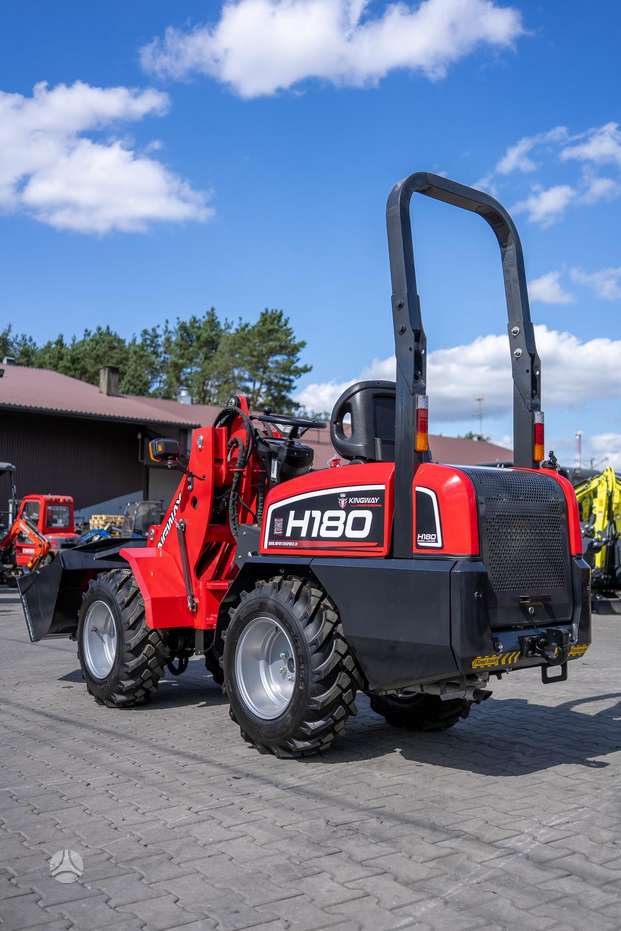

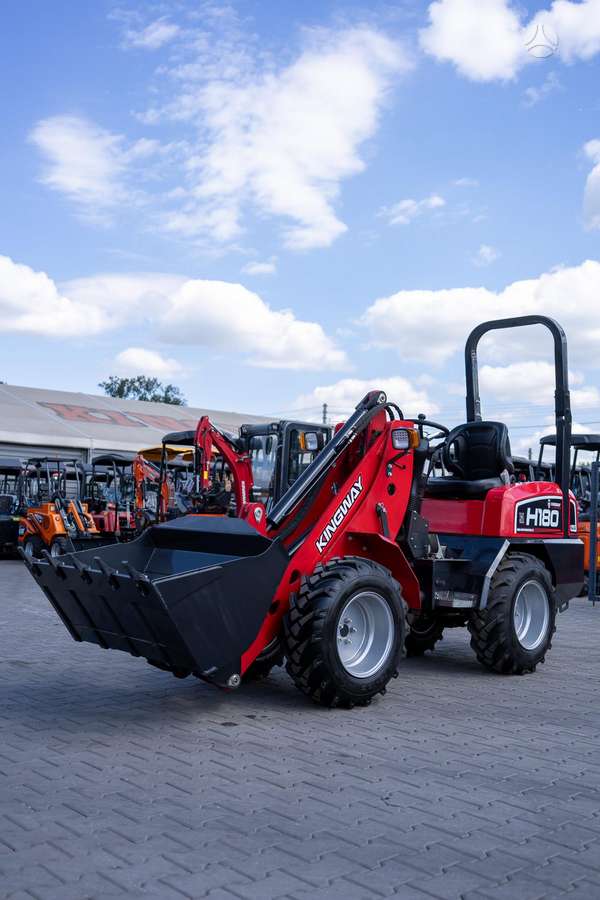

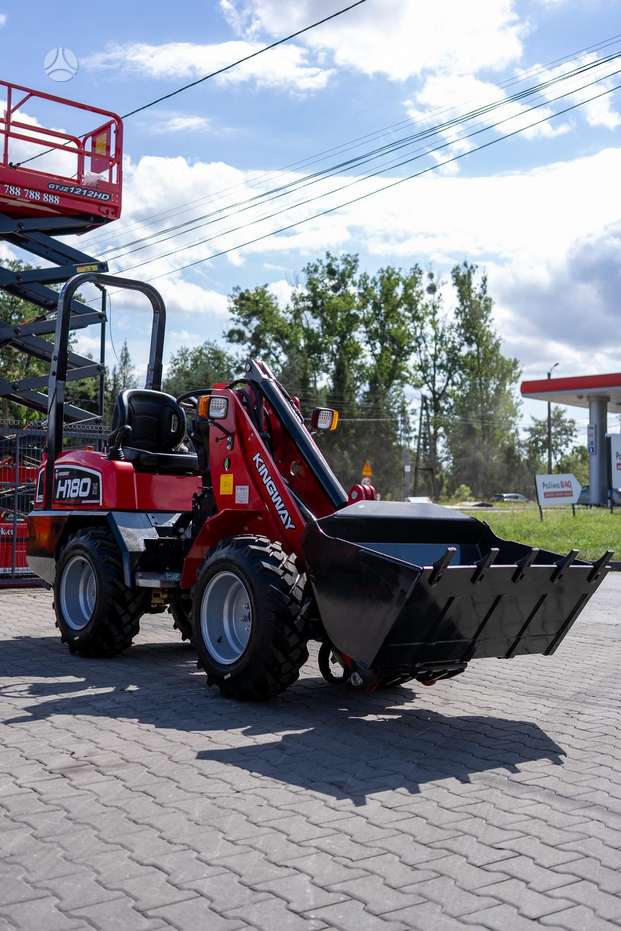

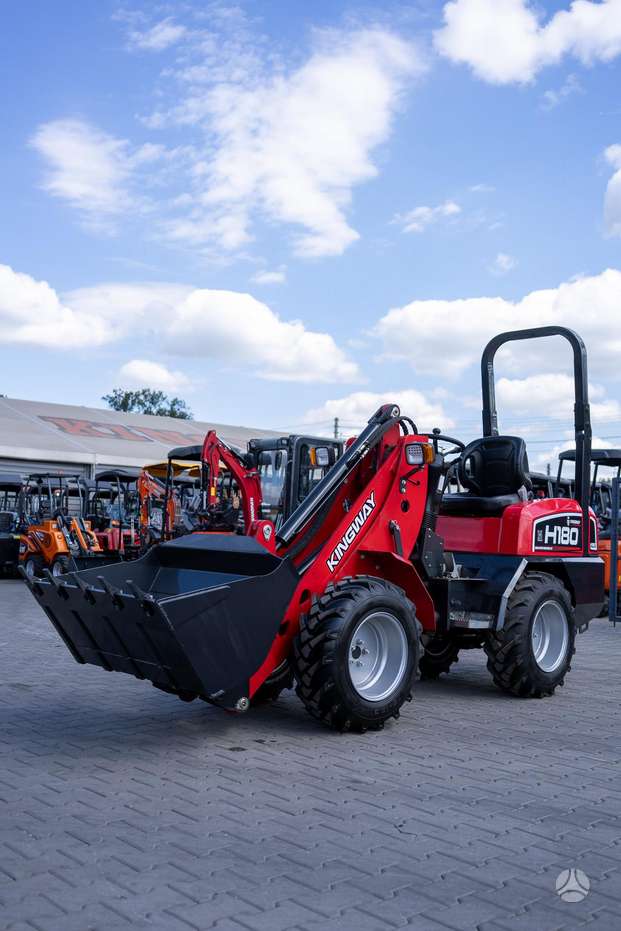

Mini loader H180 (Kubota 24.5 HP) – technical data

• Kubota 3-cylinder diesel engine
• Power: 24.5 HP (18.2 kW)
• Lifting capacity: 600 kg
• Operating weight: 2000 kg
• Bucket capacity: 0.3 m³
• Bucket width: 1100 mm

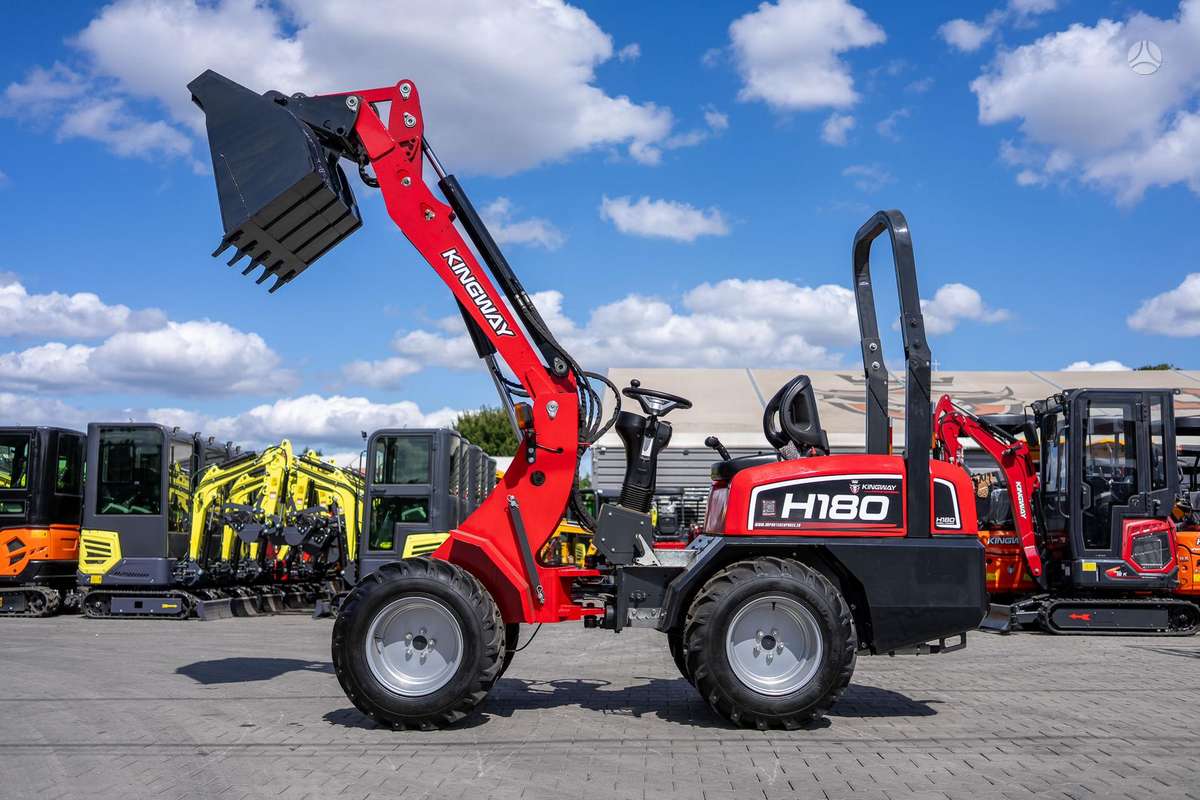

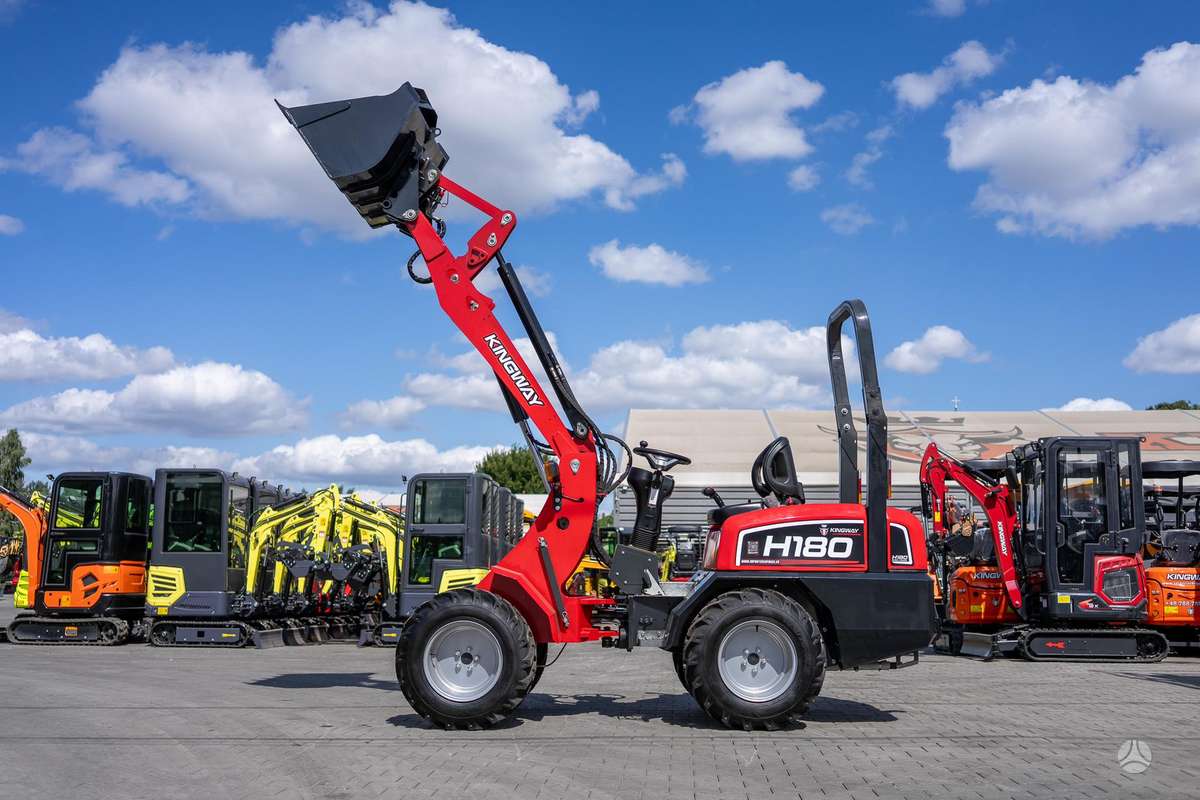

• Maximum lifting height: 2618 mm
• Maximum dumping height: 2167 mm
• Dumping distance: 1132 mm
• Hydraulic pump capacity: 42 l/min
• Hydraulic system pressure: 200 bar
• Driving speed: up to 20 km/h
• Minimum ground clearance: 200 mm
• Maximum steering angle: ±49°
• Minimum turning radius: 2691 mm
• Fuel tank capacity: 45 l
• Hydraulic tank capacity: 40 l

Dimensions

• Length: 3820 mm
• Width: 1050-1350 mm (depending on tires)
• Height: 2310 mm
• Wheelbase: 1540 mm

Advantages

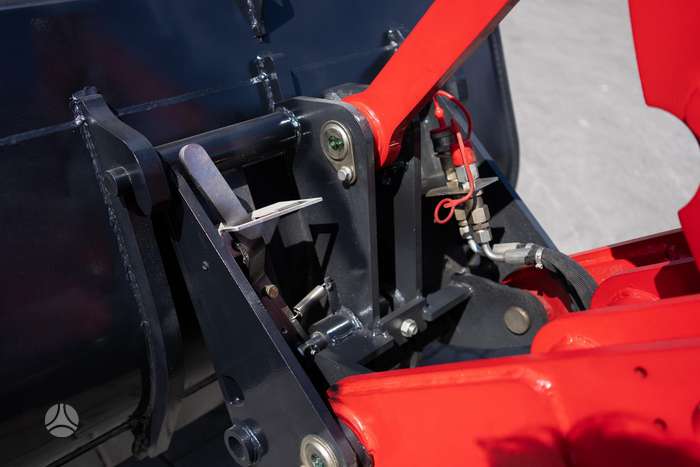

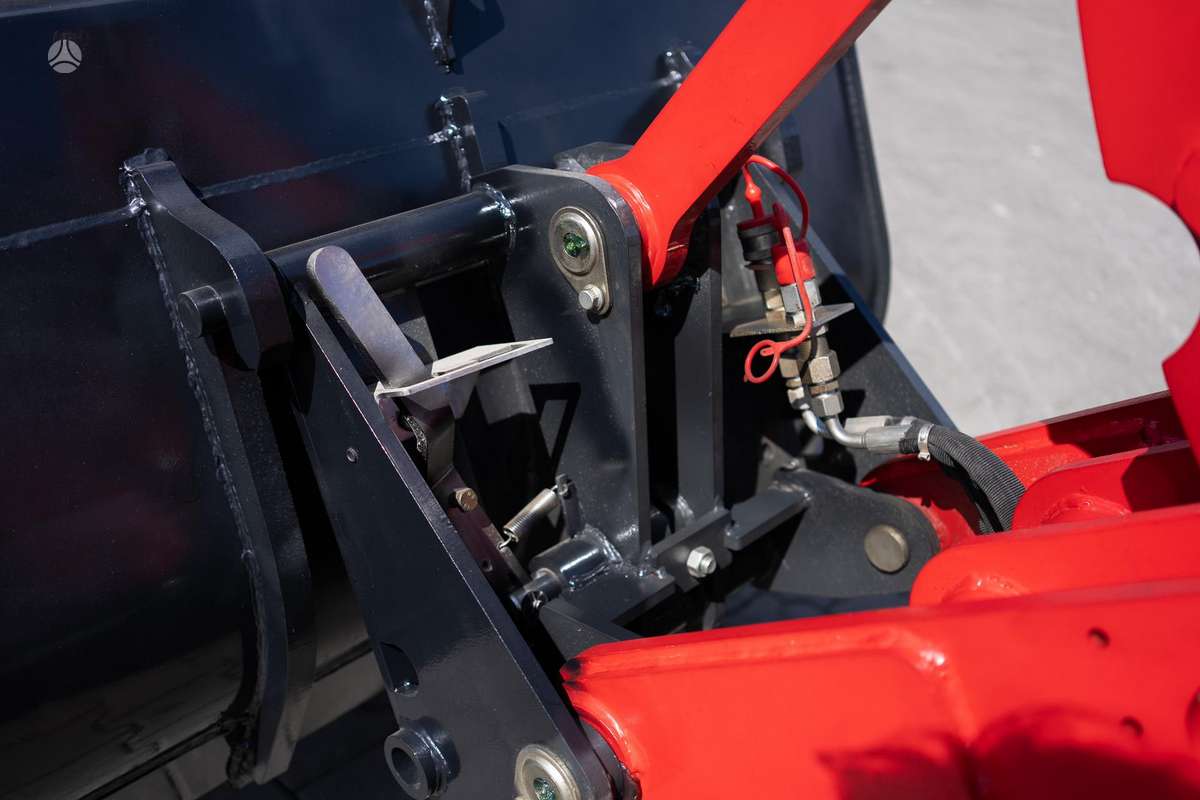

• The set includes a quick coupler, pallet forks, and a bucket
• Reliable Kubota engine
• Compact dimensions and small turning radius
• 42 l/min hydraulic flow allows the use of various attachments
• Suitable for farming, construction, warehousing, and landscaping work
• Can be equipped with a bucket, pallet forks, and other attachments.

Warranty up to 24 months.*

We have various models and configurations, so the machinery can be adapted to specific tasks and needs.

Spare parts – delivery within a few working days.
Standard machinery delivery – about 1 week.
