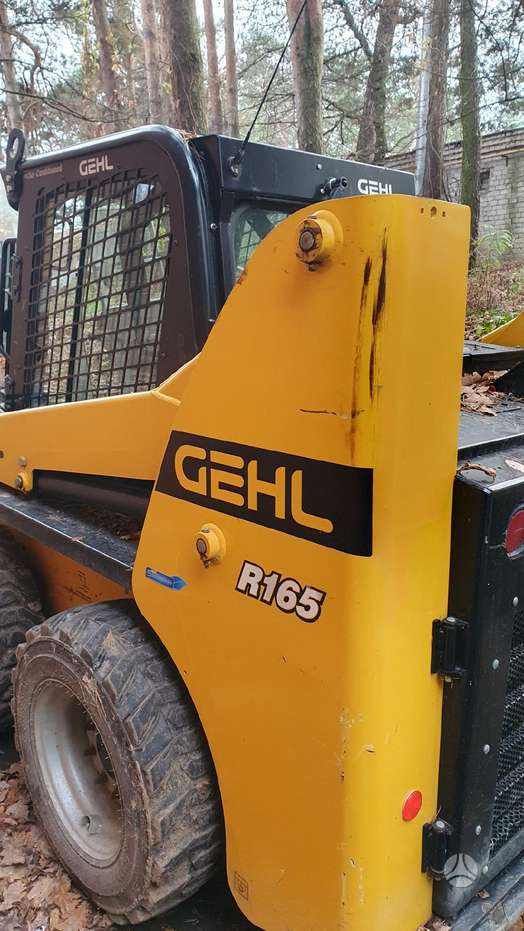

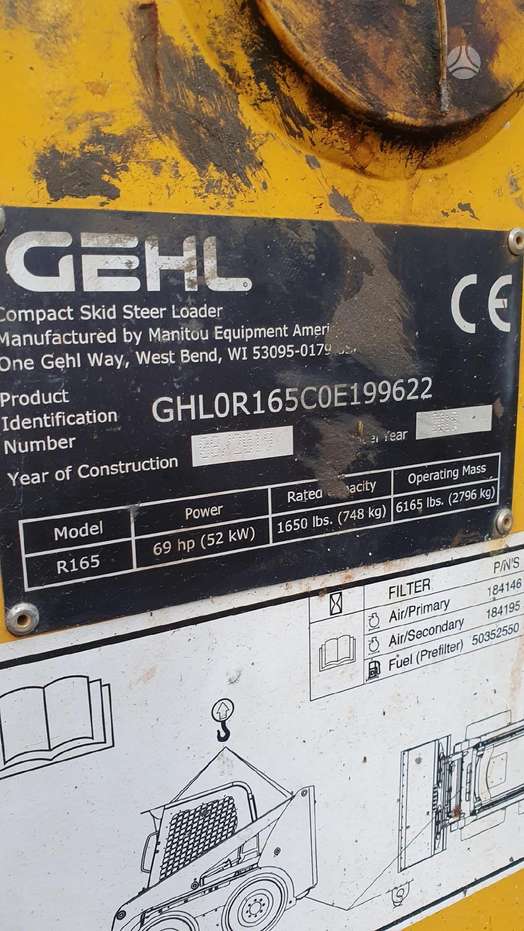

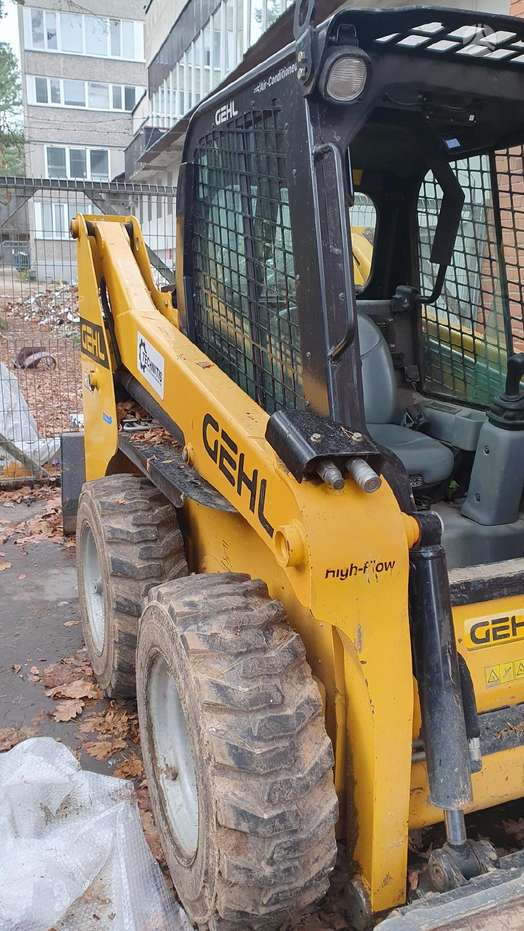

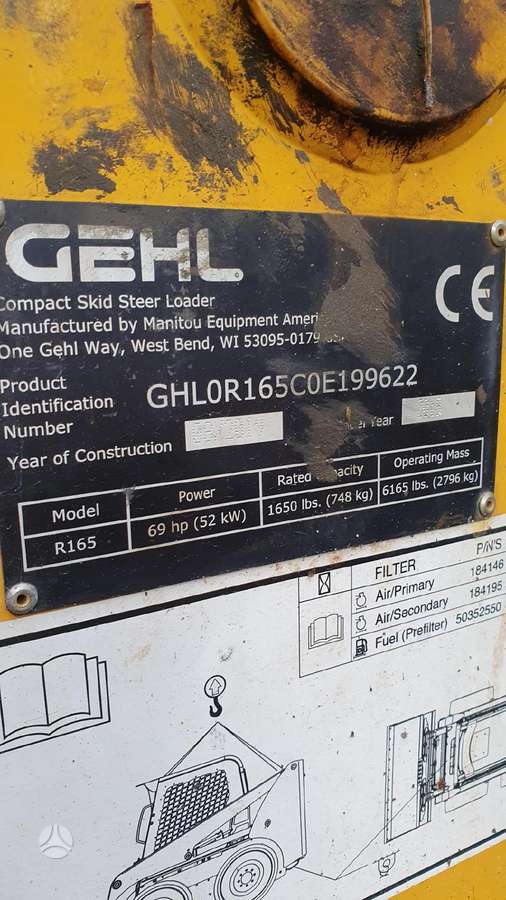

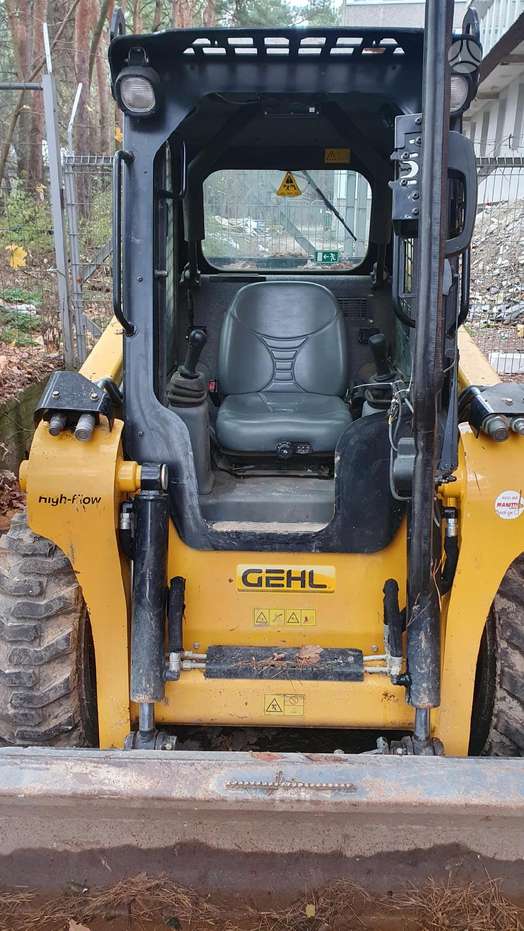

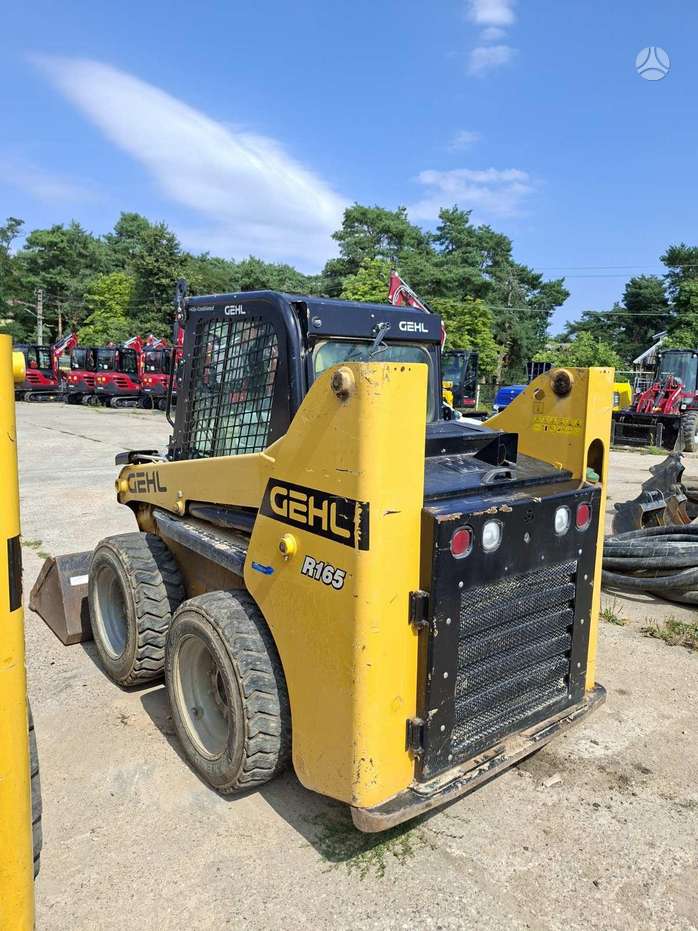

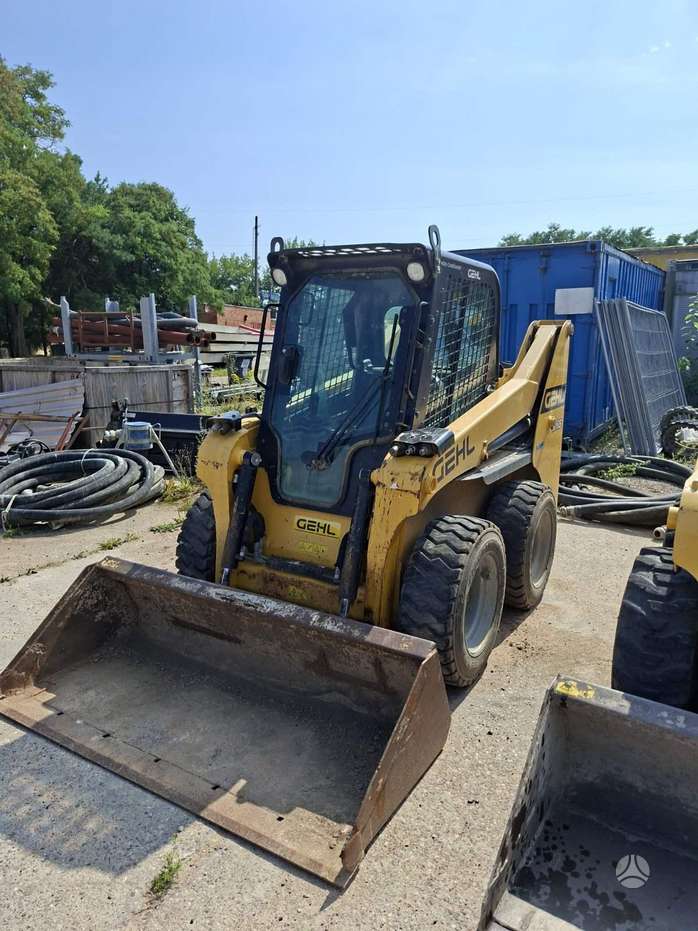

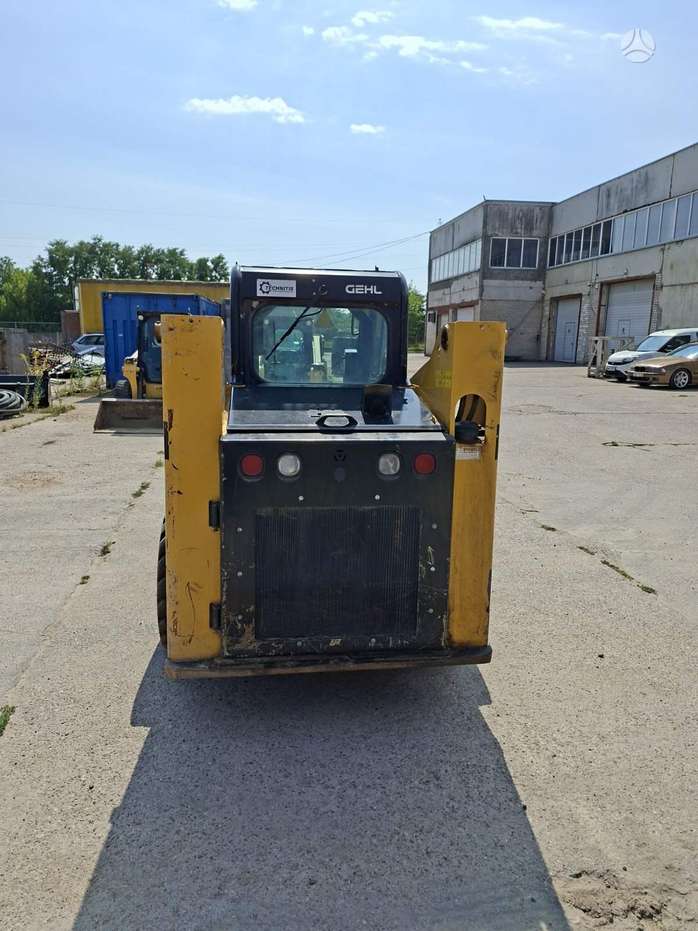

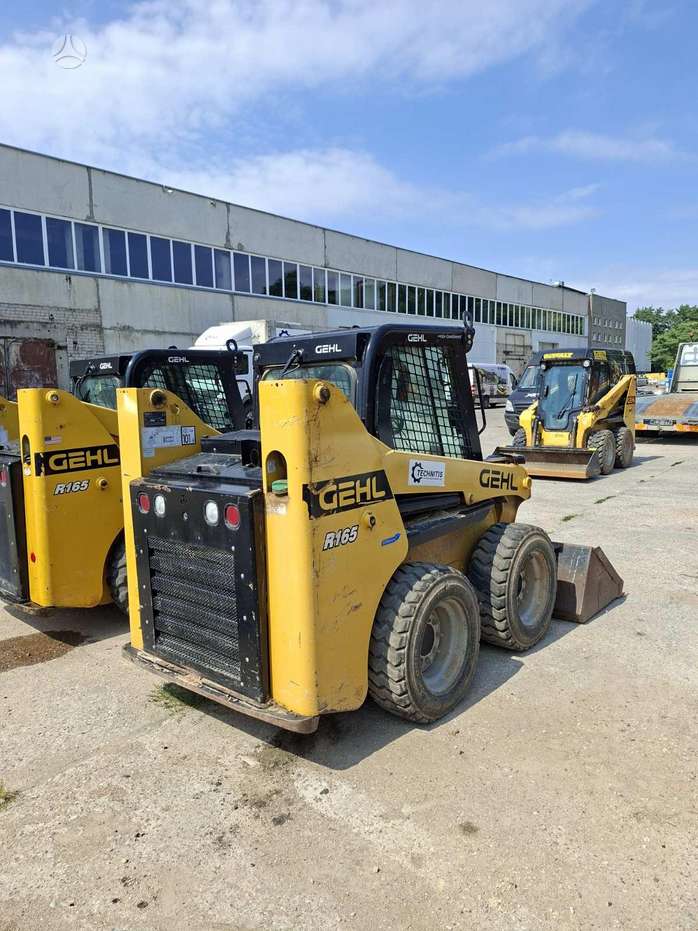

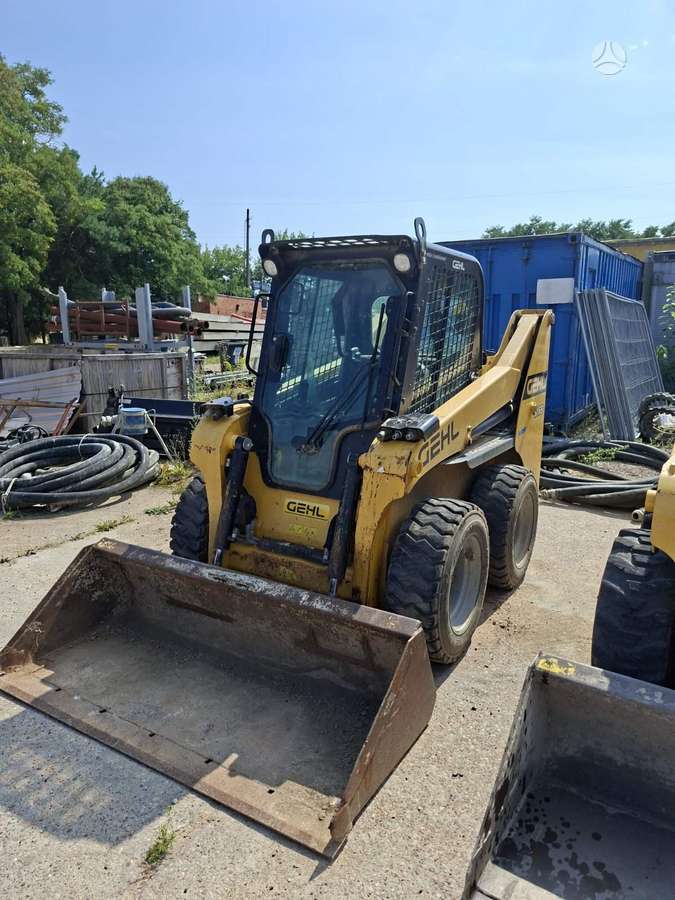

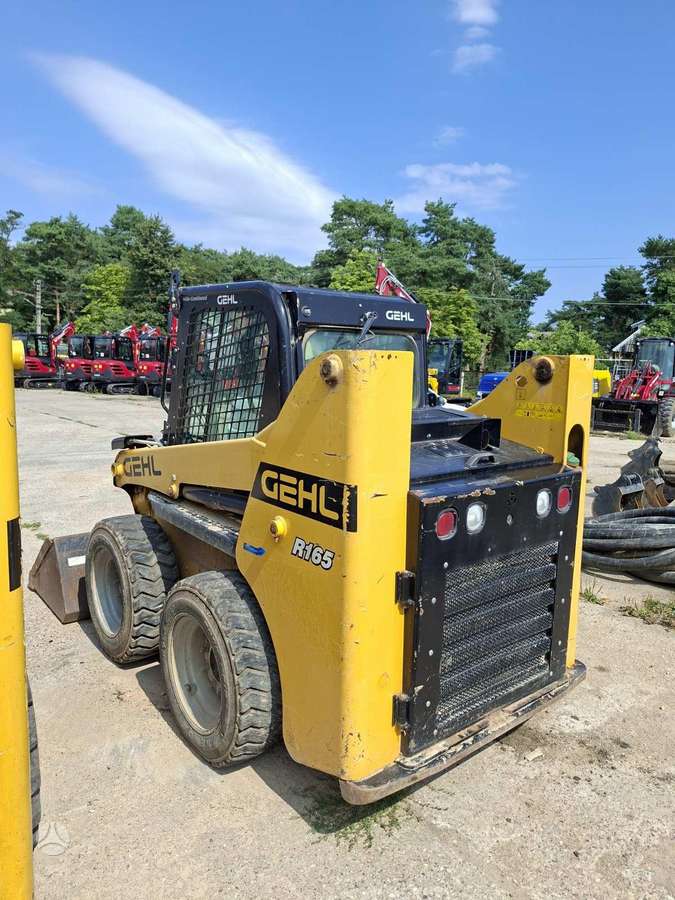

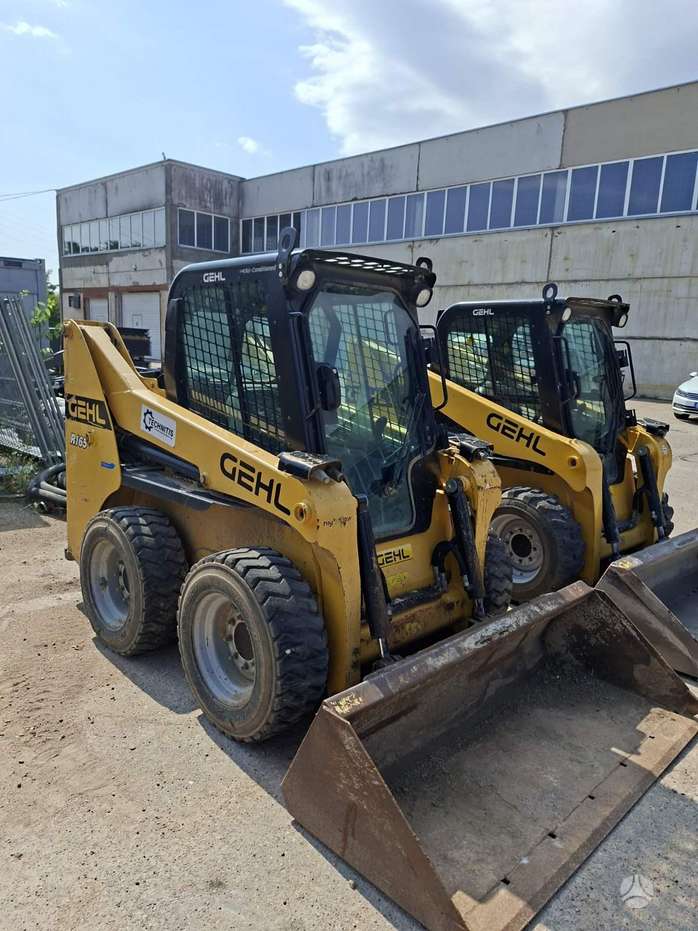

GEHL WHEEL LOADER R165
 Rated operating capacity (50%) – 748 kg
 Rated operating capacity WITH protective bumper/counterweight (50%) – 816.5 kg
 Overall height to top of ROPS cab – 1956 mm
 Max. power – 51.7 kW (69.3 HP) @ 2500 rpm
 Diesel engine Yanmar / 4TNV98C-NMS2V / Stage V
 Max. torque 241 Nm @ 1625 rpm
 Max. lift height 3018 mm
 Max. bucket discharge height 2379 mm
 Machine width without bucket 1580 mm
 Operating weight 2769 kg

Offered configuration
• 68.4 HP / 51.0 kW, 4-cyl. diesel, liquid-cooled engine YANMAR 4TNV98-ZNMS3R Stage V
• Wheel tire set 10x16.5 for intensive use
• Cab ROPS/FOPS protection level II (tested by dropping a 227 kg metal cylinder onto the roof 3 times)
• Side sliding windows
• Front door with panoramic glass, front and rear window wipers and washers

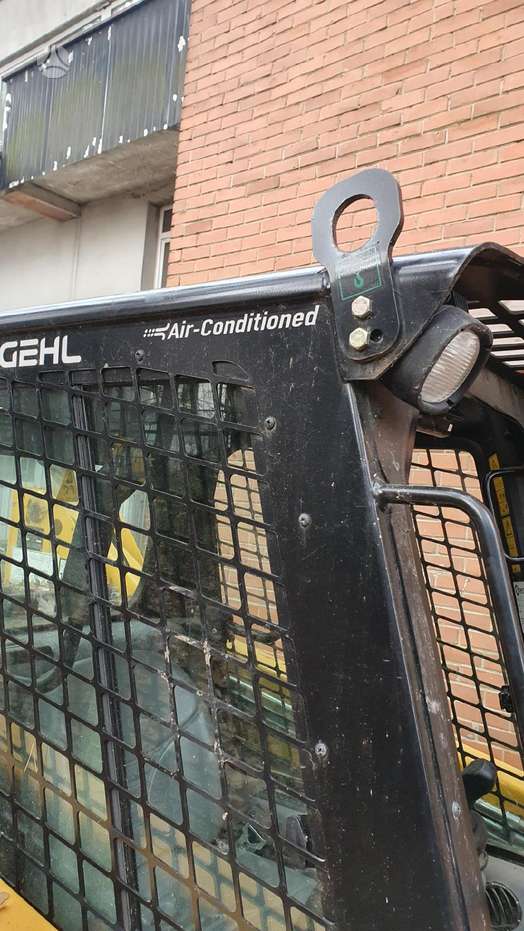

• Cab heating and ventilation system WITH AIR CONDITIONING
• Deluxe adjustable operator seat
• Lap safety belts

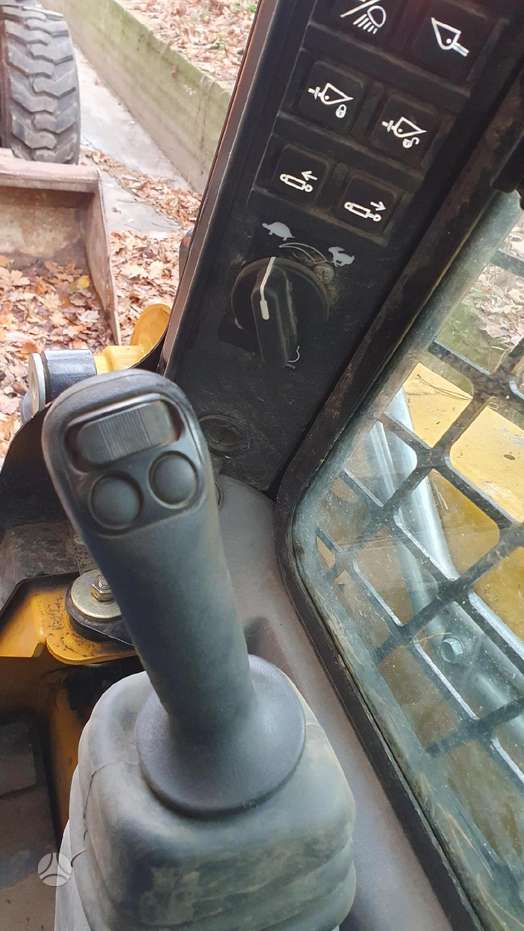

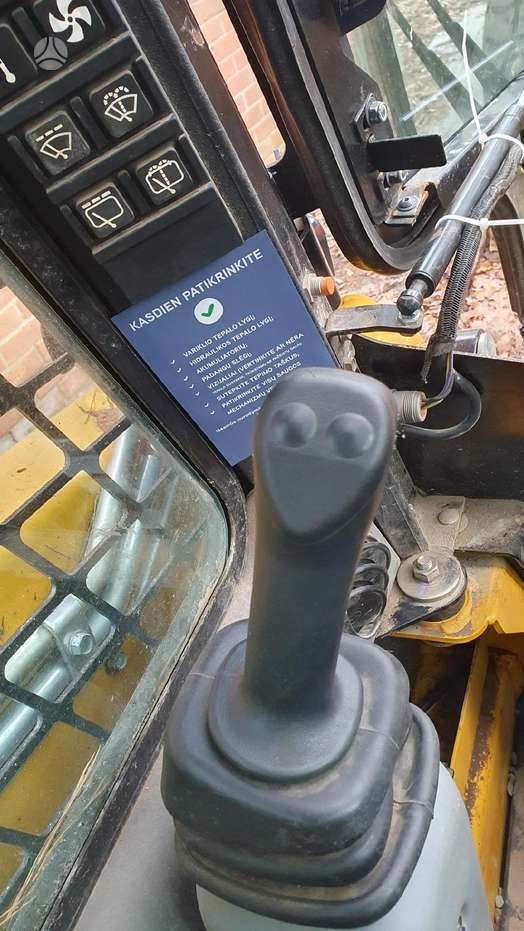

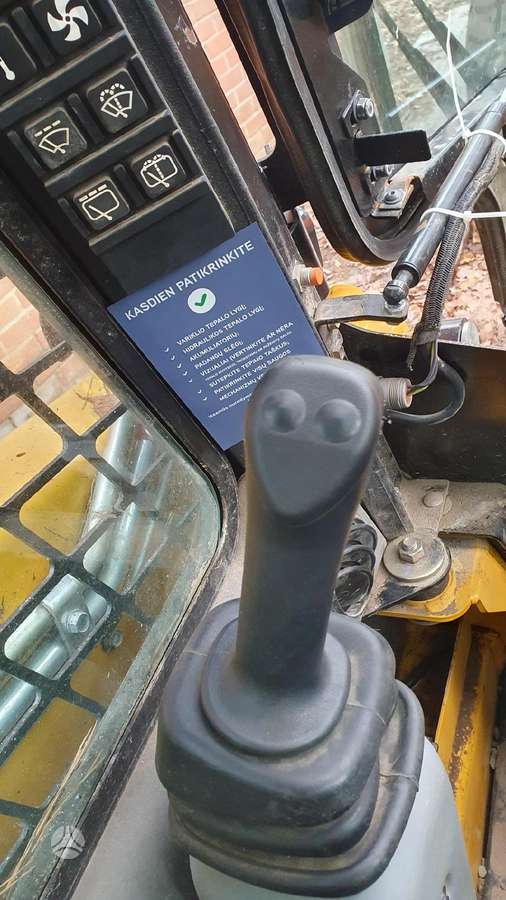

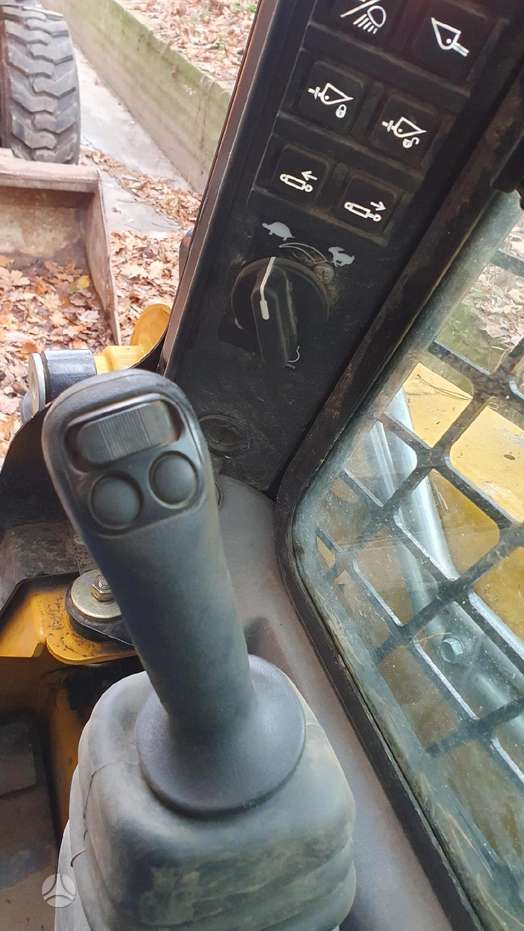

• 2 JOYSTICK control (1st Joystick controls the boom with bucket, 2nd Joystick controls driving. Operator's feet are free)
• Hand and foot engine speed control (can use either, optional)
• Boom vibration damping system HYDRAGLIDE. Nitrogen accumulators installed in the lift cylinders dampen vibrations and shocks to the boom during travel. This ensures a longer service life.
• Bucket float position
• Hydraulic self-leveling (can be switched on/off in the operator's cab)

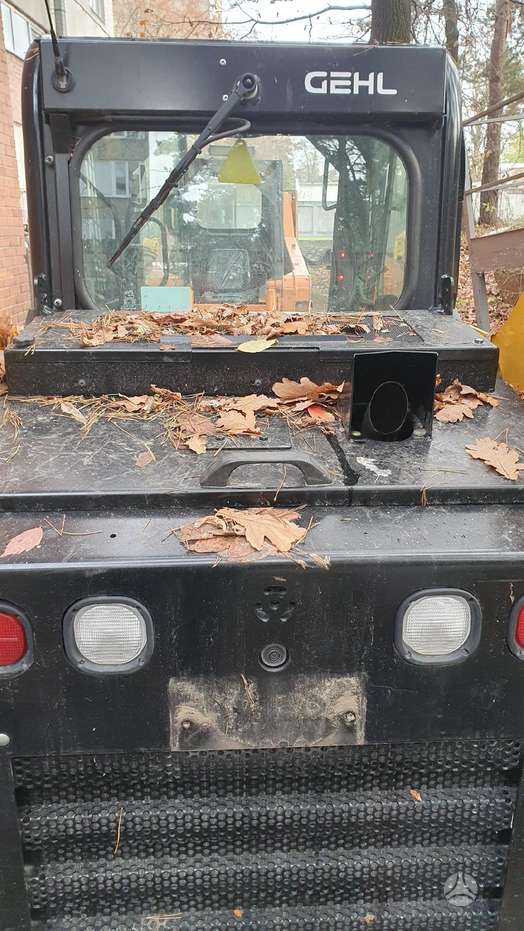

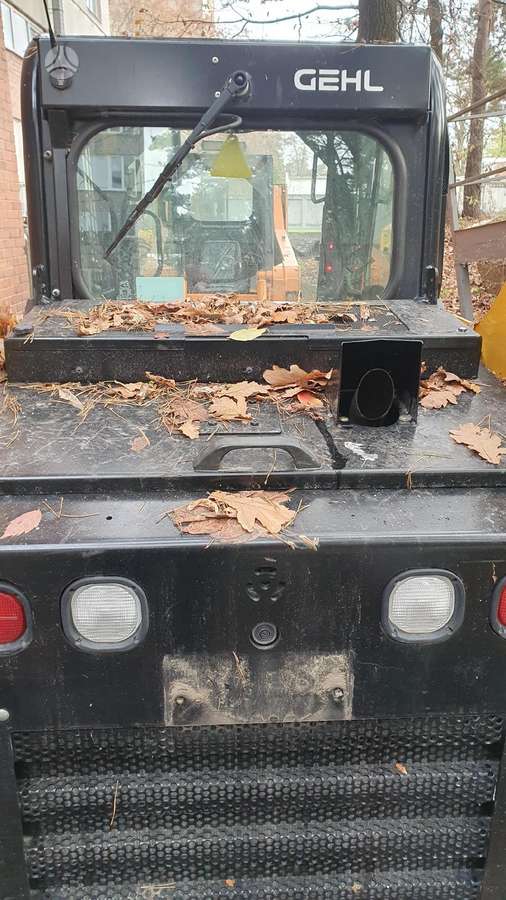

• Protective bumper/counterweight (protects the rear of the loader and increases lifting capacity)
• 1-speed travel system 0-12.6 km/h

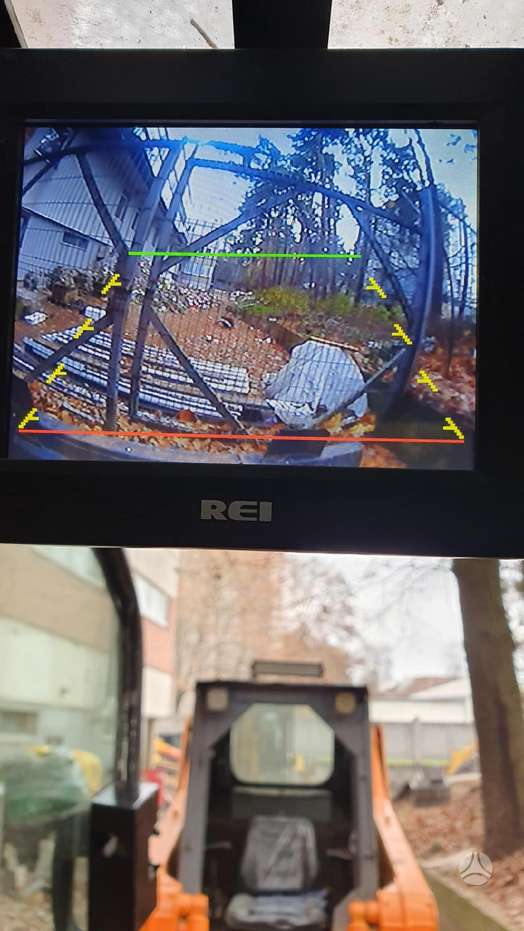

• Rear view CAMERA
• Reverse acoustic signal
• HIGH FLOW hydraulic system 94.6 l/min

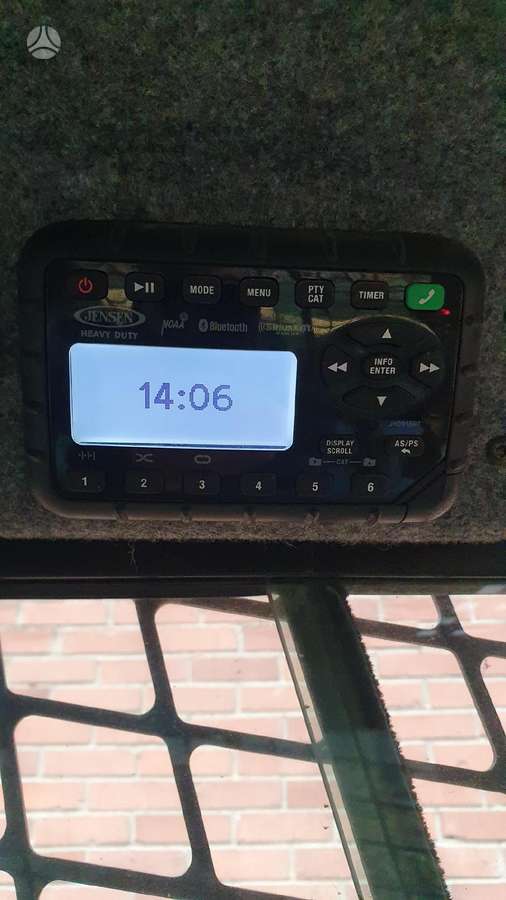

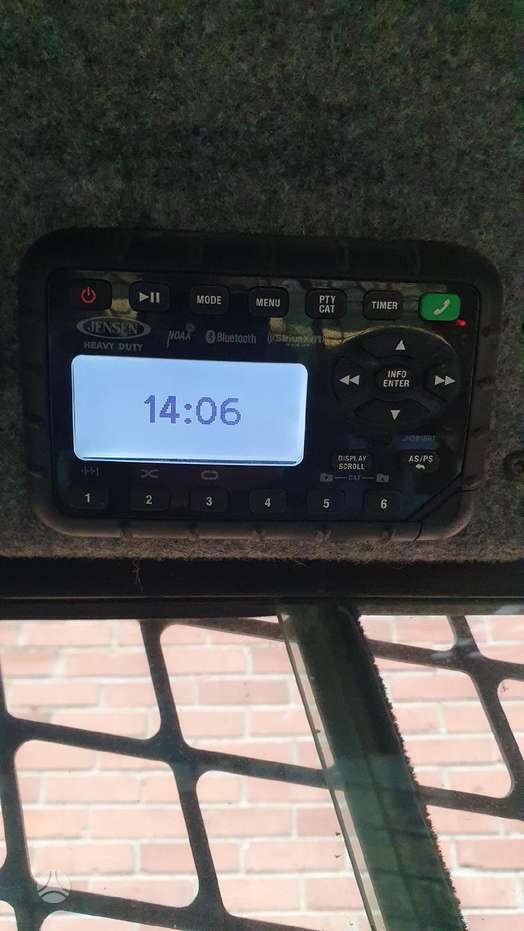

• RADIO with Bluetooth
• GPS preparation (activated at the customer's request)
