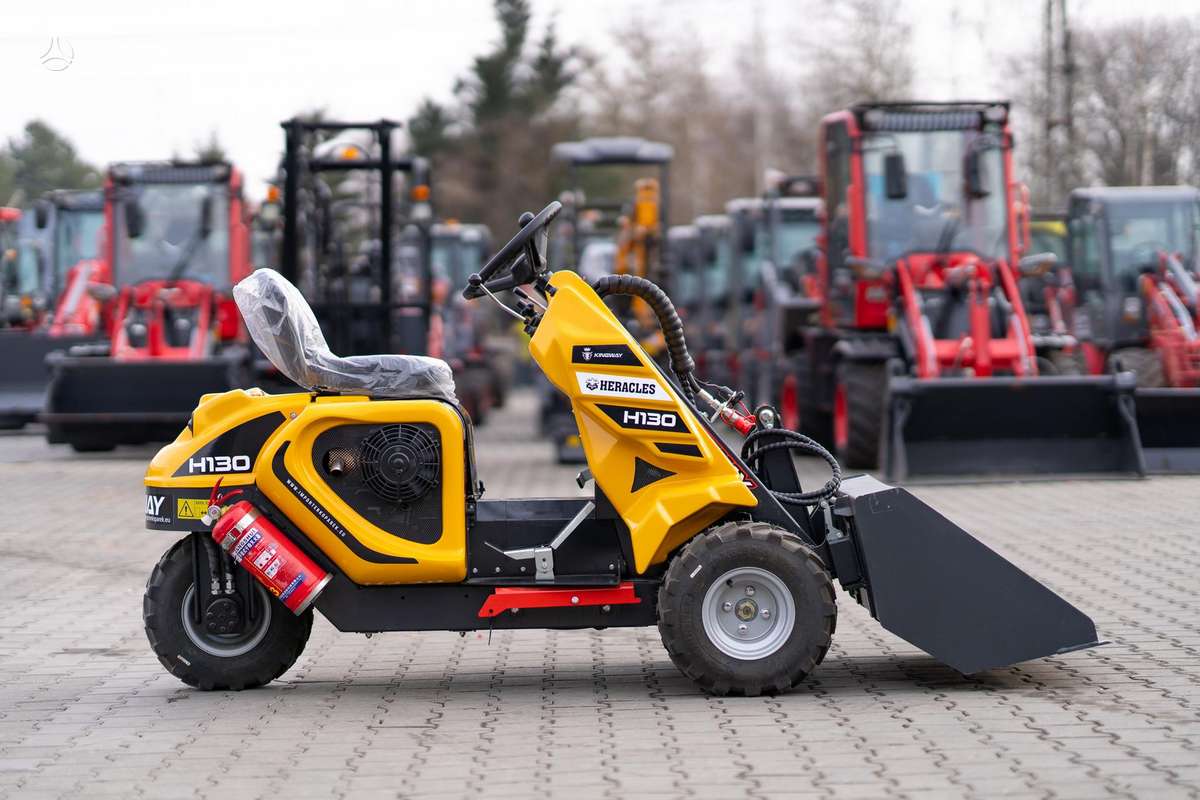

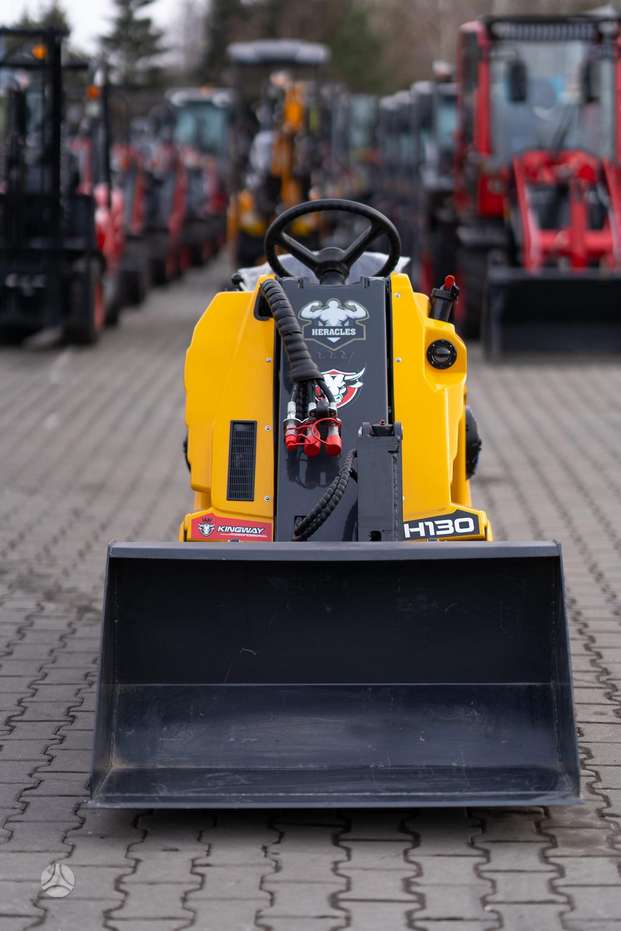

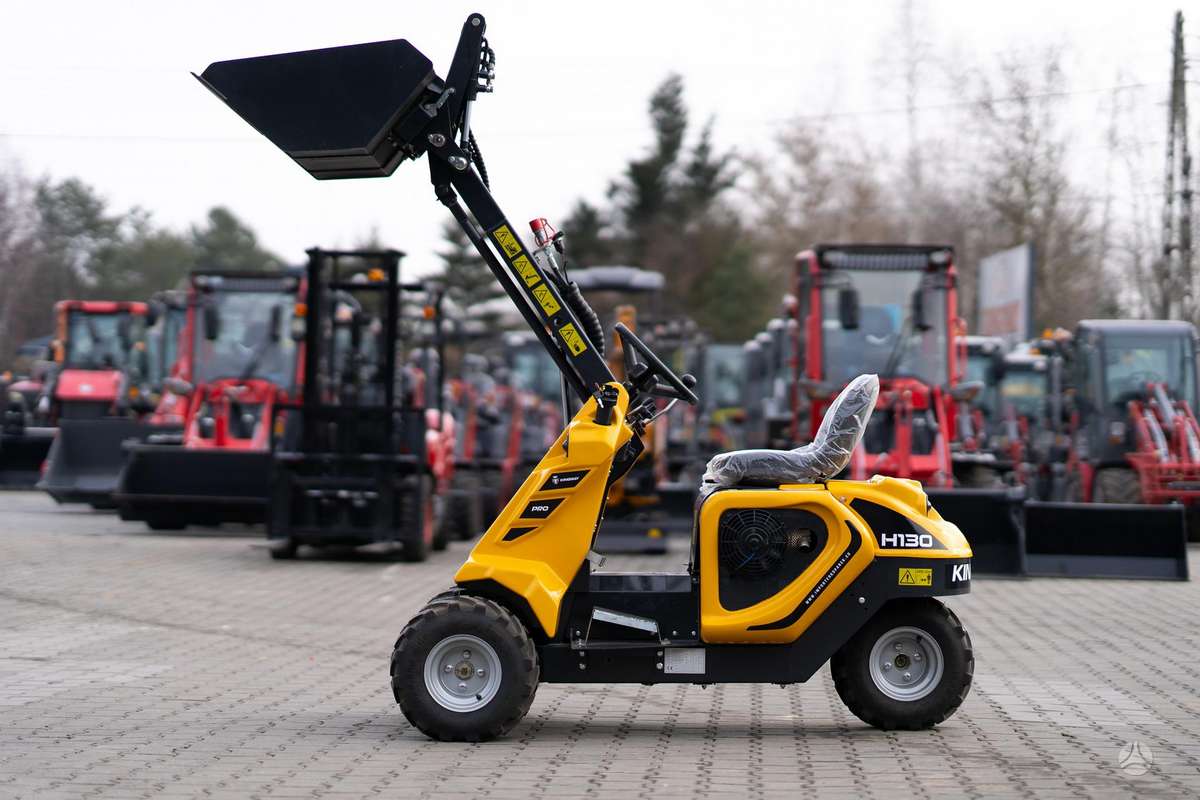

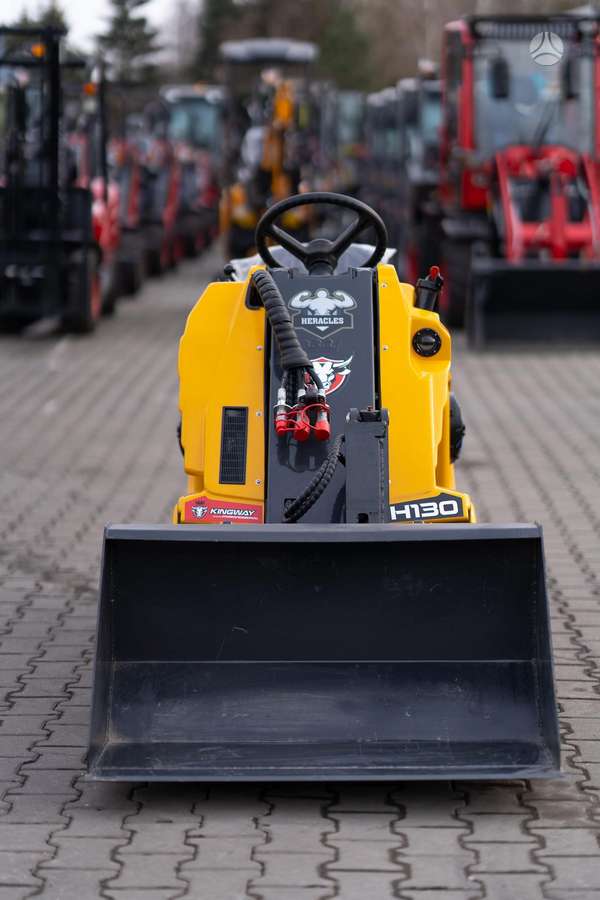

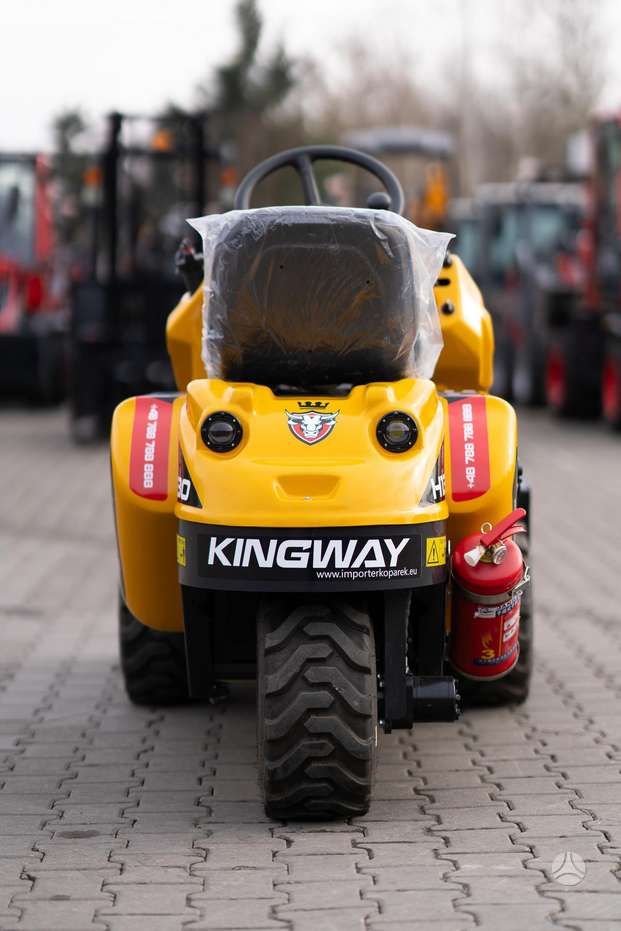

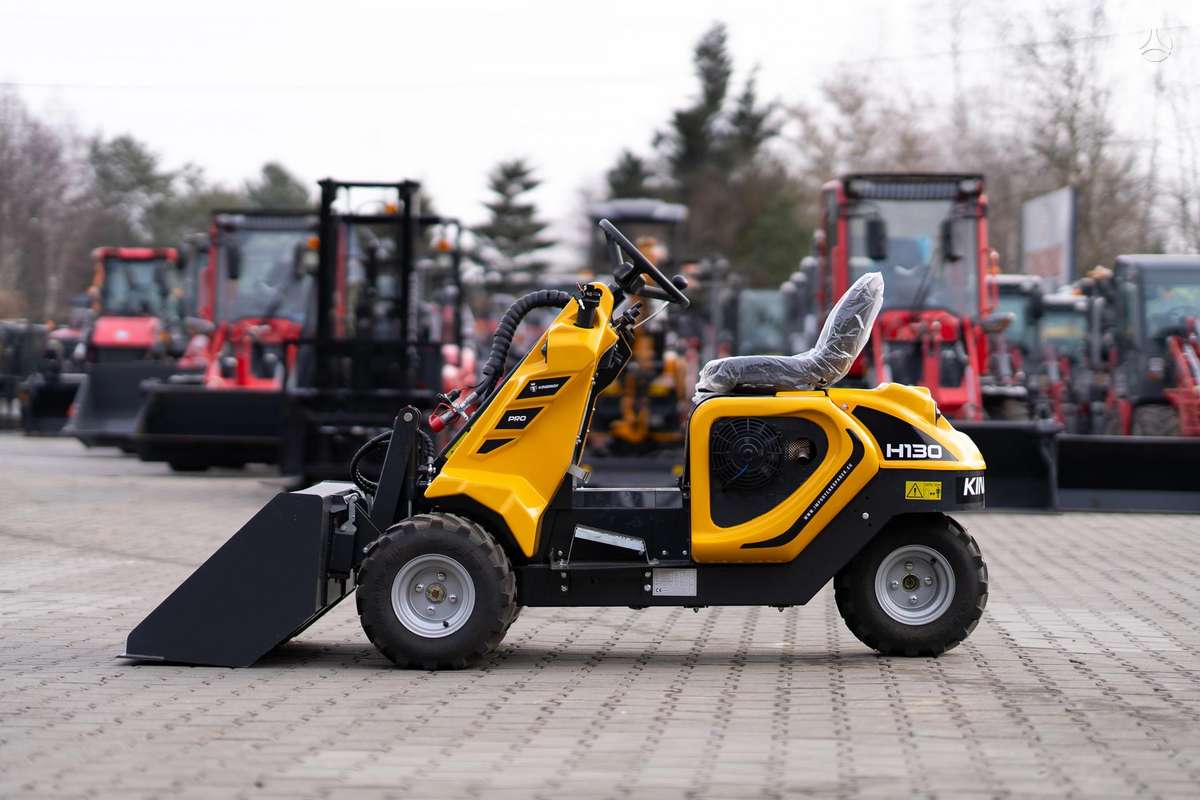

A compact mini wheel loader designed for work in narrow spaces where maneuverability and efficiency are essential. Thanks to its zero-turn radius, the HERACLES H130 can turn practically on the spot, making it perfectly suited for farms, warehouses, construction sites, and municipal work.

Hydrostatic transmission ensures smooth control, precise movement, and reduced wear on mechanical components.
An operating weight of just 500 kg allows the loader to be easily transported on a light trailer.
Compatibility with the Avant-type quick-attach system provides the ability to use more than 200 different attachments.
Low operating costs and simple maintenance.
Supervision and quality control by European technicians, ensuring higher assembly and component reliability.
Fast spare parts supply and professional service in Europe.
Stage V emission standard compliant engine, suitable for use throughout the European Union.

Technical Specification
Engine
Manufacturer: RATO
Model: R740D
Power: 16.8 kW (22.5 HP)
Displacement: 740 cm³
Maximum torque: 47 Nm at 2500 rpm
Fuel type: gasoline
Cooling: air-cooled
Emission standard: EU Stage V / EPA Tier 4 Final

Performance Characteristics
Maximum lifting capacity: 350 kg
Maximum tipping load: 400 kg
Maximum lifting height: 1600 mm
Travel speed: 0-15 km/h
Operating weight: 500 kg

Hydraulic System
Hydraulic system flow: 29 l/min
Operating pressure: 160 bar
Hydraulic oil tank capacity: 10 l

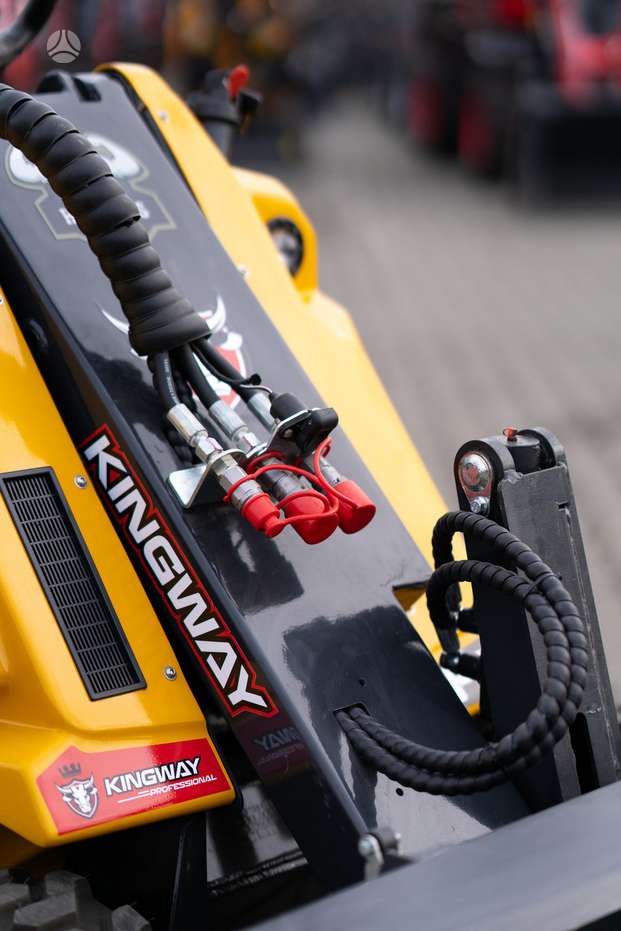

Free hydraulic return line for connecting additional equipment.

Chassis and Maneuverability
Drive: 3WD
Transmission: hydrostatic
Steering angle: 0-360°
Inner / outer turning radius: 0 / 993 mm
Tires: 18×9.50-8

Dimensions
Length: 1854 mm
Width: 993 mm
Height: 1304 mm
Bucket width: 1000 mm

Capacities
Fuel tank capacity: 10 l
Hydraulic oil tank capacity: 10 l
Battery: 20 Ah
Operating voltage: 12 V

Included in the set
Bucket
Pallet forks
Quick coupler
Additional equipment

Various additional attachments are available according to needs: brooms, snow plows, augers, mowers, grapples, buckets, and other equipment.

Applications
Farms and livestock facilities
Stables
Construction and renovation work
Landscaping
Municipal work
Warehouses and production premises
Snow removal
Material loading and transport in narrow spaces
