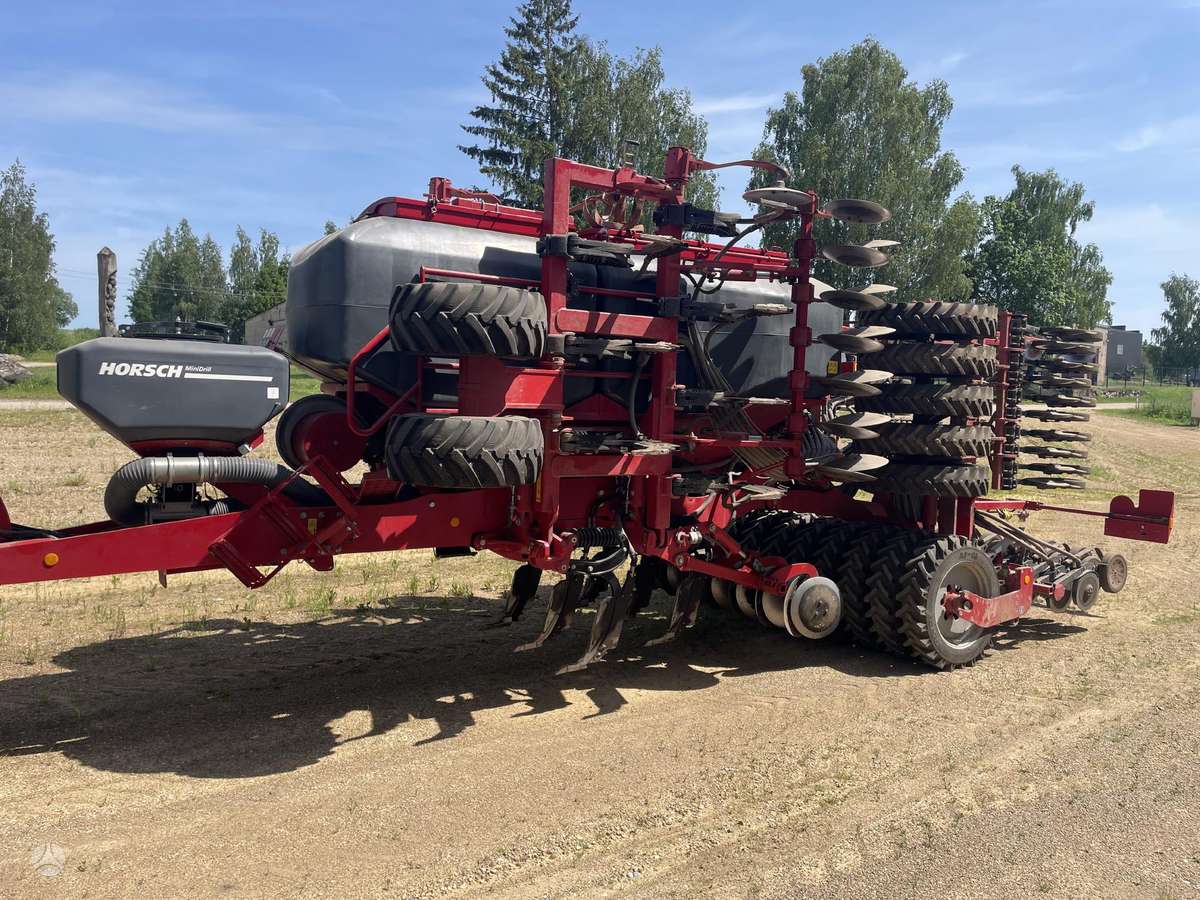

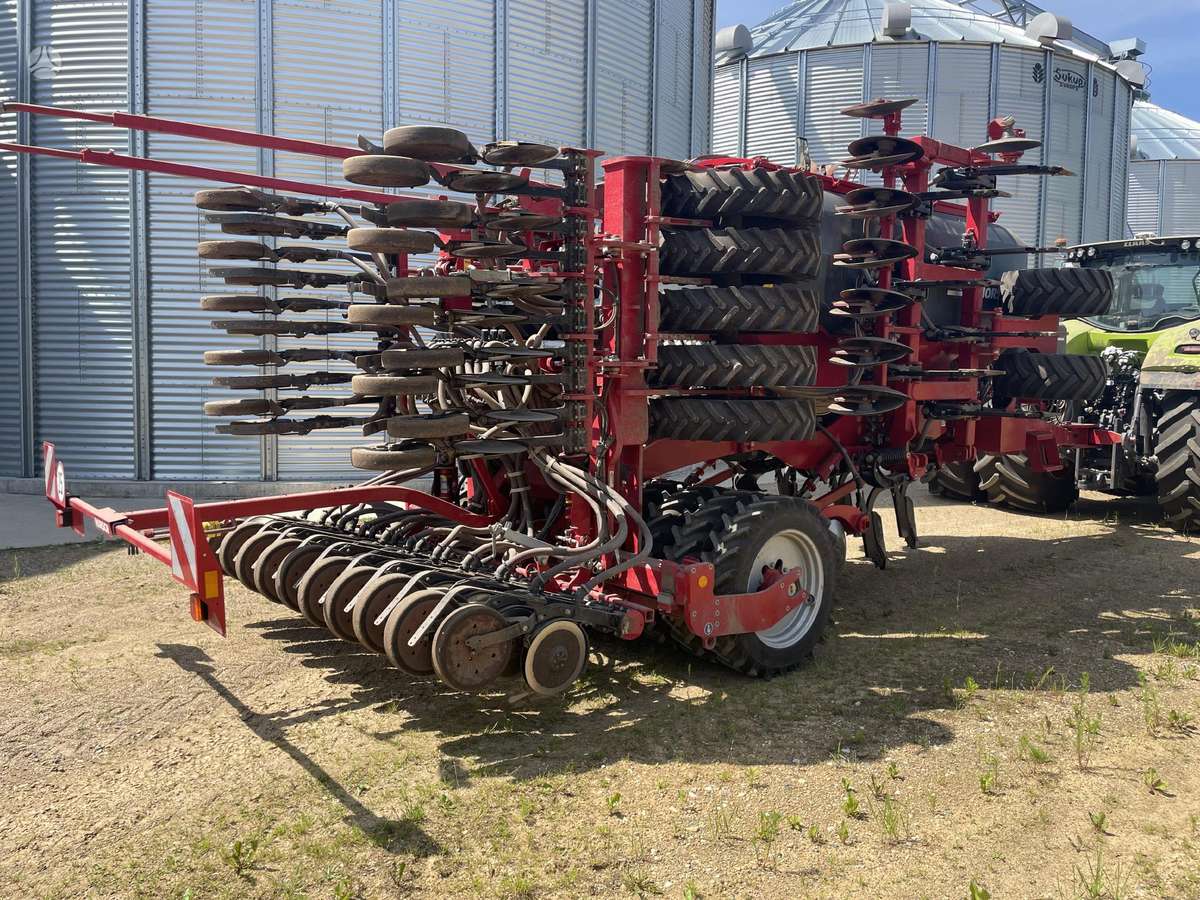

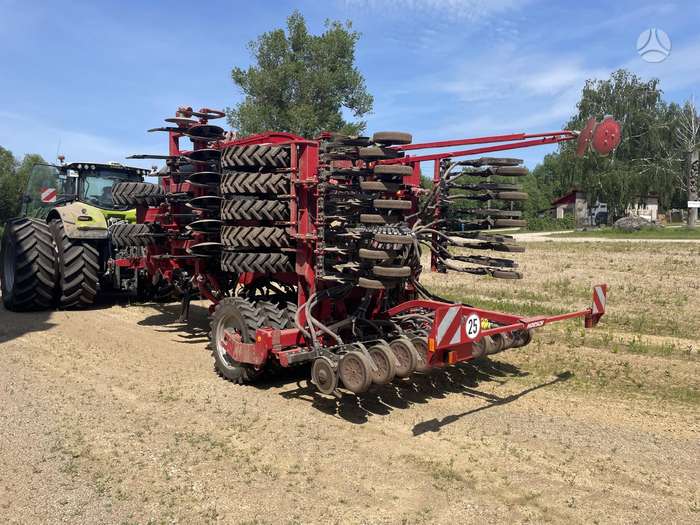

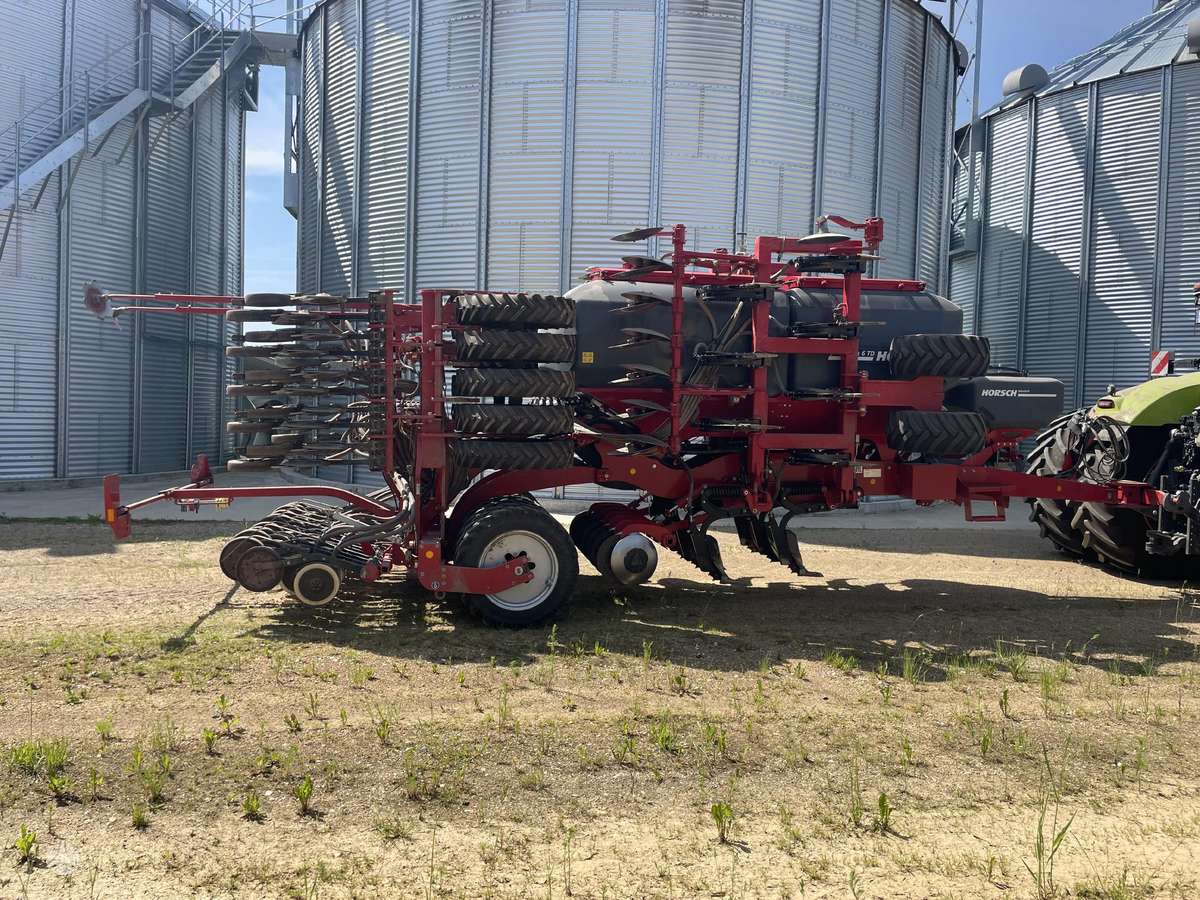

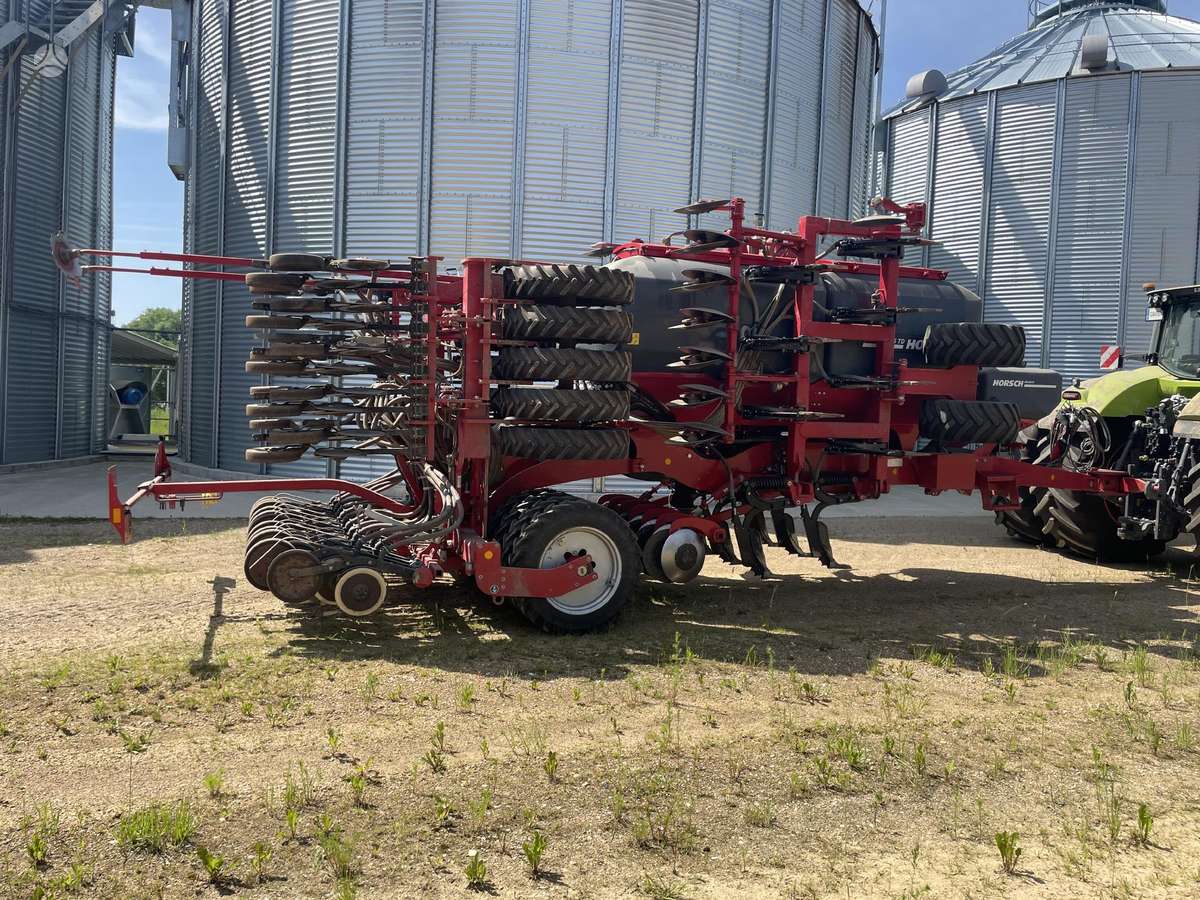

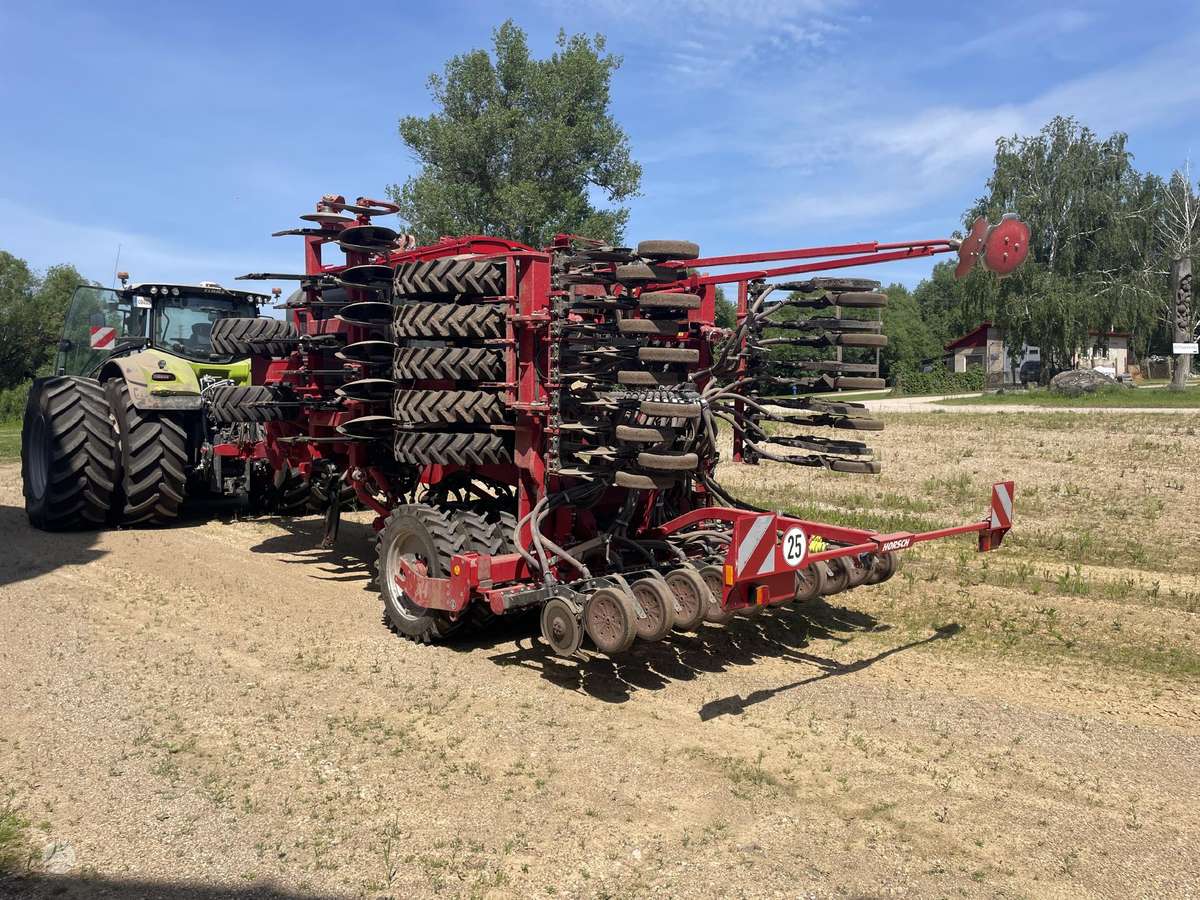

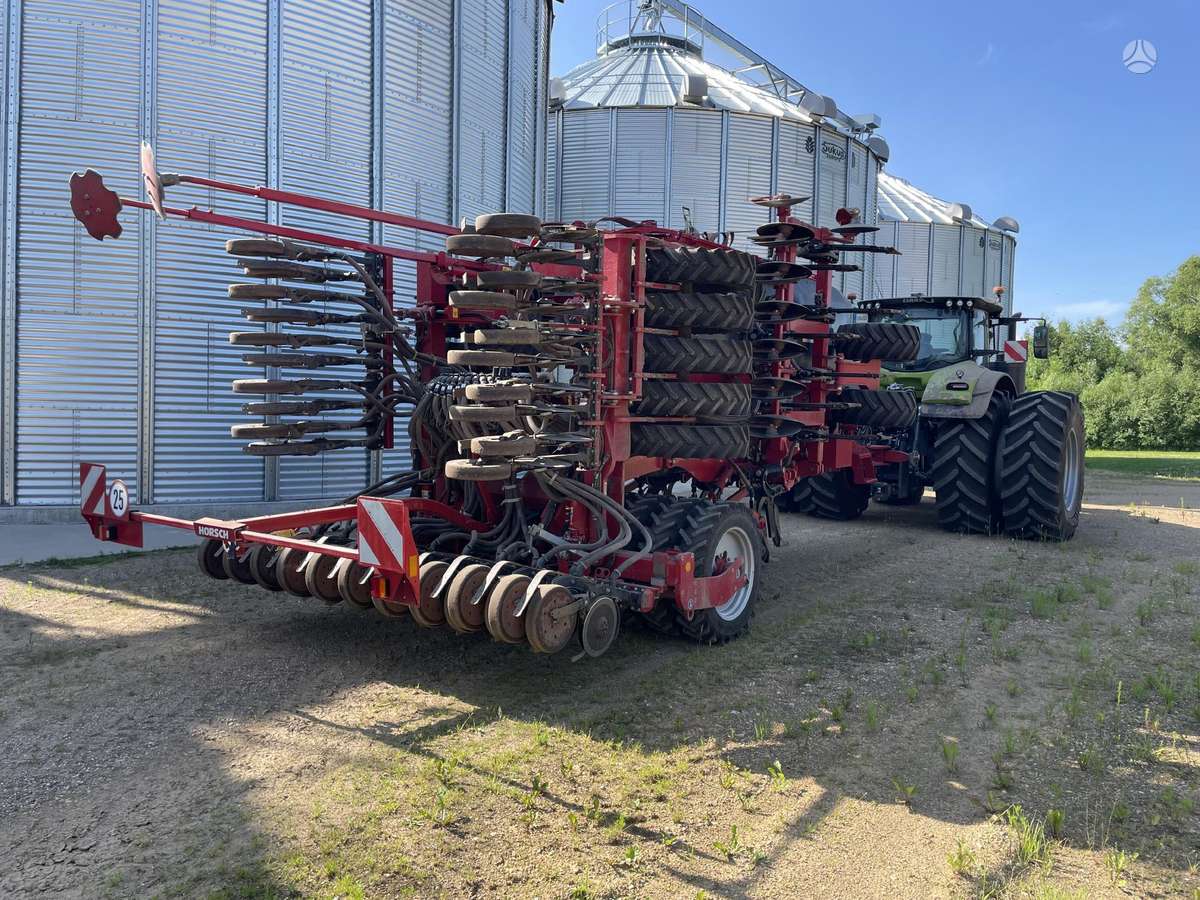

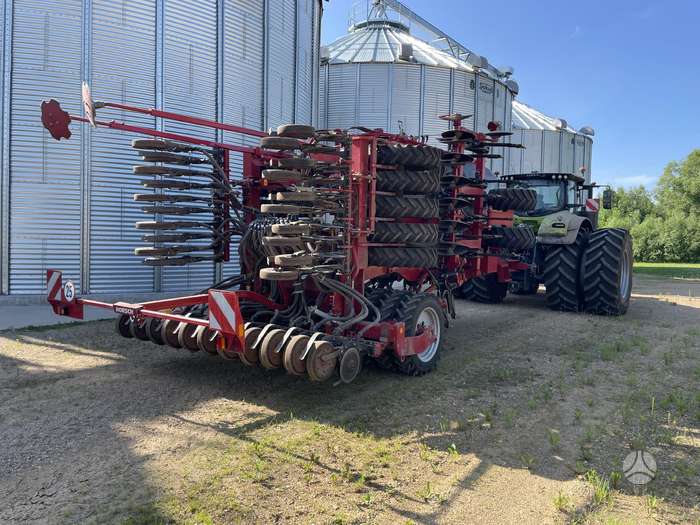

Seeder „HORSCH Focus 6TD“
Working width 6.00 m;
Transport height 3.70 m;
Transport width 3.00 m;
Transport length 9.77 m;
Weight 10,000 kg;
Hopper filling height 2.95 m;
Hopper filling opening 0.66x1.22/0.66x1.68;
Hitch to eyelet;
Ladder with platform on the left side;
Support wheels 15.055-17;
1 row of leveling discs for soil surface leveling;
Seed/fertilizer hopper 5,000 ltr divided into two parts at a 40:60 ratio;

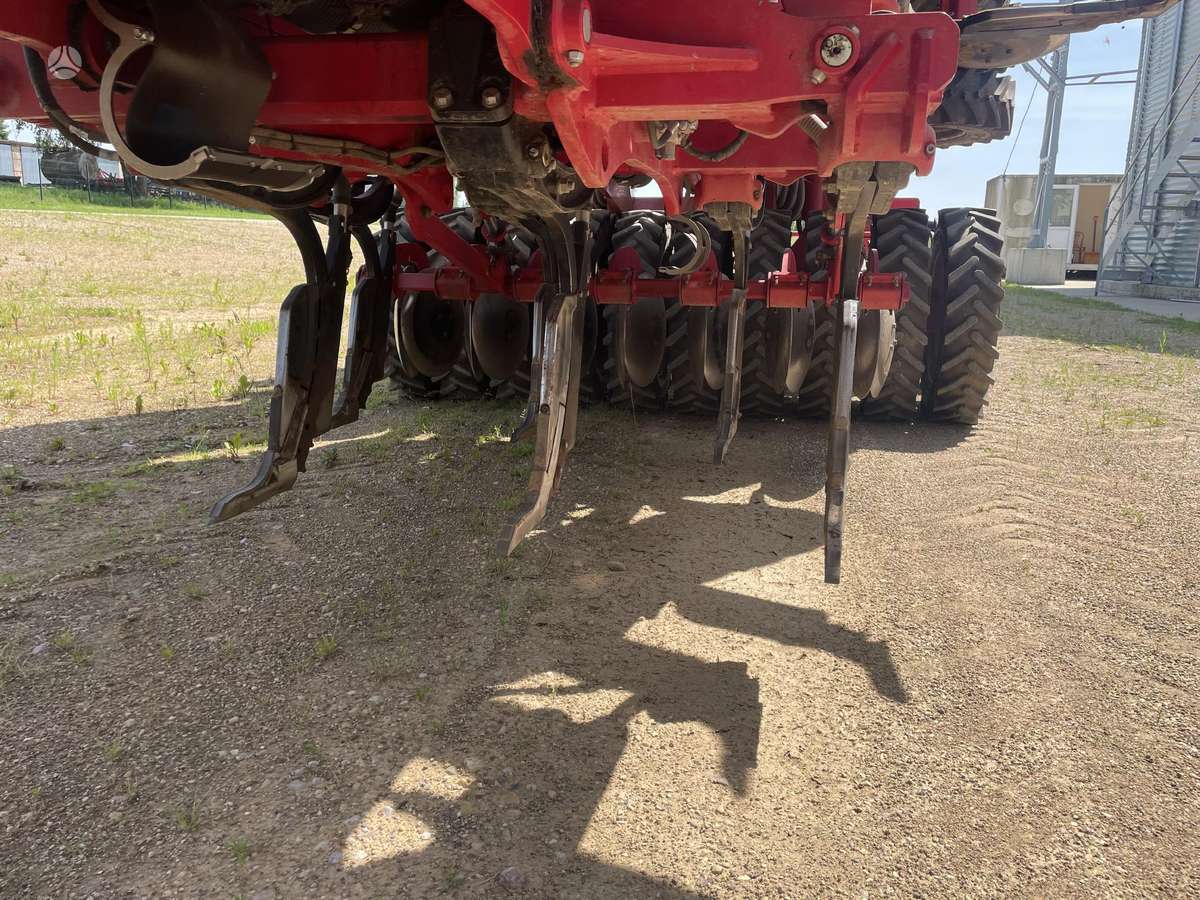

2 rows of fertilizer placement/tillage tines, 20 units;
Fertilizer placement in 3 types:
1. Fertilizer placed 100% at 0-5 cm depth,
2. Fertilizer placed 100% at the working depth of the fertilizer placement/tillage tines,
3. Fertilizer placed at two levels, 50/50% ratio at 0-5 cm depth and at the working depth of the fertilizer placement/tillage tines;
Frame clearance 75.0 cm;
Tine spacing in a row 60.0 cm;
Tine working depth up to 30 cm;
TerraGrip maintenance-free spring leg protection;
TerraGrip spring leg protection with 630 kg release force;
TerraGrip spring leg protection with 30 cm travel;
TerraGrip spring tine protection;

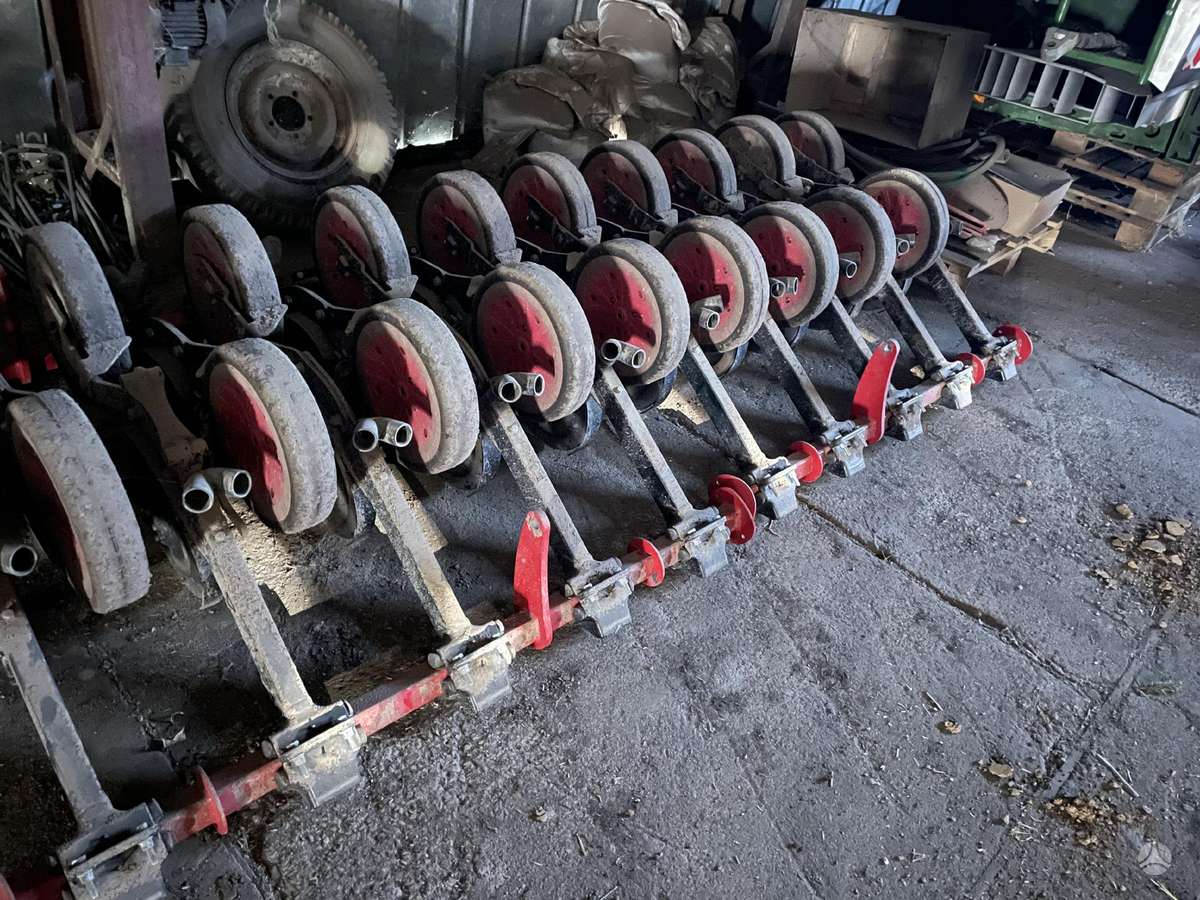

Disc seed placement coulters, 20 units;
TurboDisc seeding system pressure on the soil from 5 - 120 kg;
Sowing row spacing 30.0 cm;
Seed rate 0.7-500 kg per ha;
Fertilizer rate 0.7-500 kg per ha;
Large seed adapter;
Press wheels 7.5 cm wide, 34 cm diameter;
Seed covering harrows;
Large diameter rear tire packing roller across the full working width, 100 cm diameter;
Rear packing roller with reinforced profile HD tires 10PR, tires 210/95-24 AS;
Computer control language: Lithuanian;
Power requirement from 330 HP;
Working speed 3-14 km/h;
Hydraulic seed flow fan drive from tractor hydraulics;
Required tractor hydraulic sections: 2 units;
Recommended tractor hydraulic pump capacity from 100 l/min;
Lighting;
Disc seed placement coulters, 40 units with 15.0 cm row spacing;

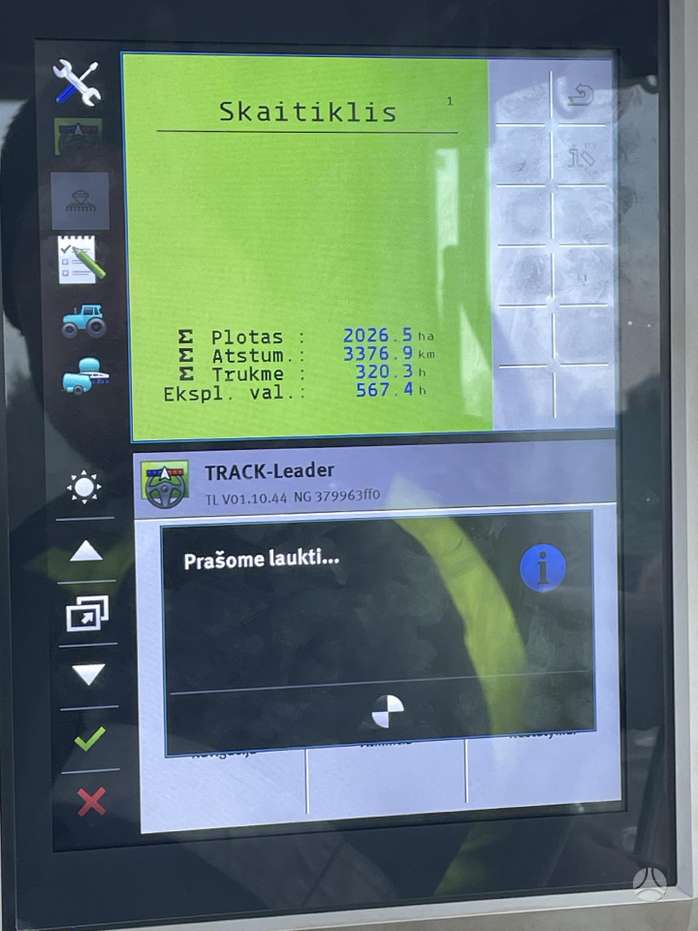

Electronic seed and fertilizer rate computer with Touch 1200 touchscreen;
Horsch Minidrill additional 400l hopper;
Double support wheels;
Electronic blockage control for seed tubes, 40 units;
Electronic blockage control for fertilizer tubes, 20 units;
Rear leveling board;
Isobus connection for the tractor as required;
Side markers;
Pre-emergence markers;
Additional 2 tramline valves; (tramline width from plant to plant 60.0 cm);
Reinforced 2.5 cm wide ULD chisels;
Country of origin: Germany.
2800 ha
