Working width 6.00 m
Transport width 2.98 m
Transport height 3.70 m
Transport length 10.40 m
Weight 9,500 kg

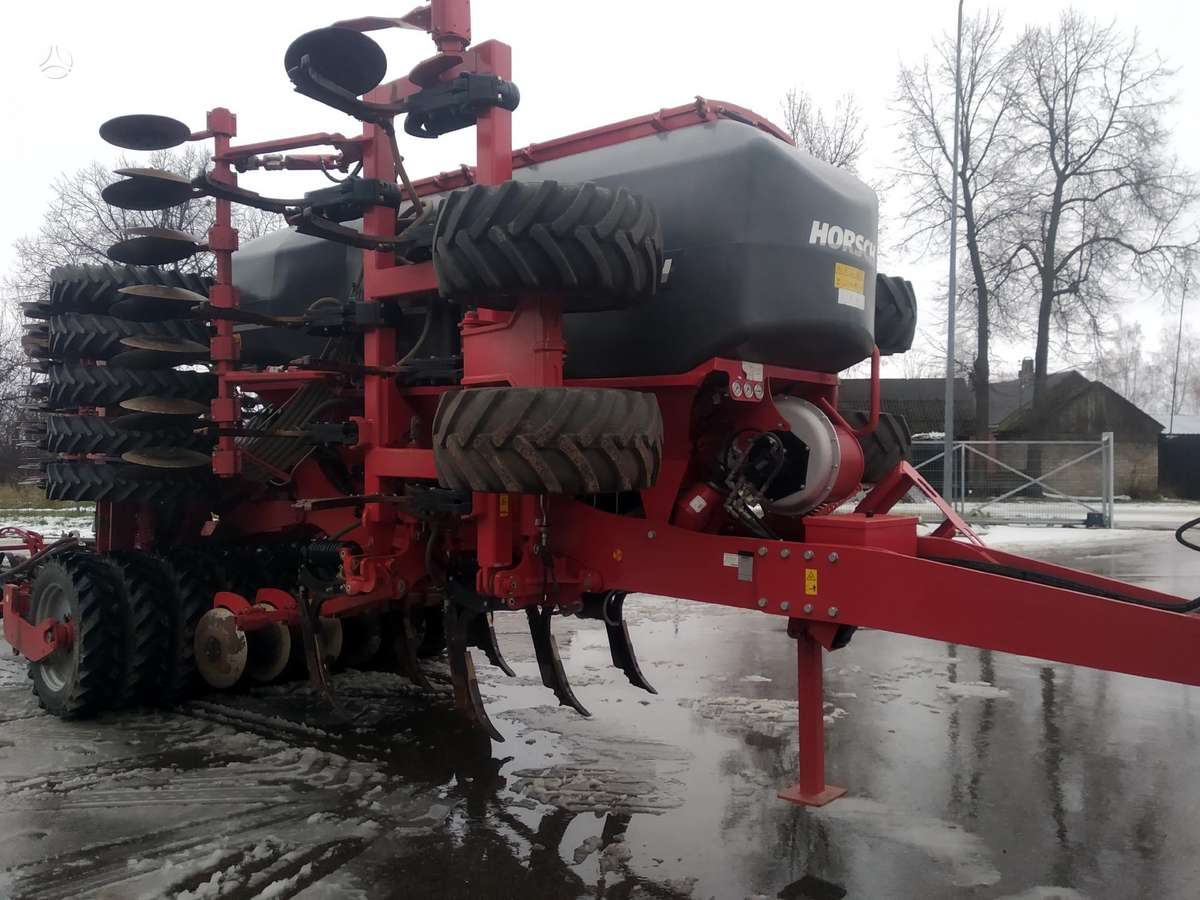

Seed/fertilizer hopper 5000 l divided into two parts at a 40:60 ratio
Hopper filling opening 0.66x1.22/0.66x1.68
Hopper filling height 2.95
Support wheels 15.0/55-17

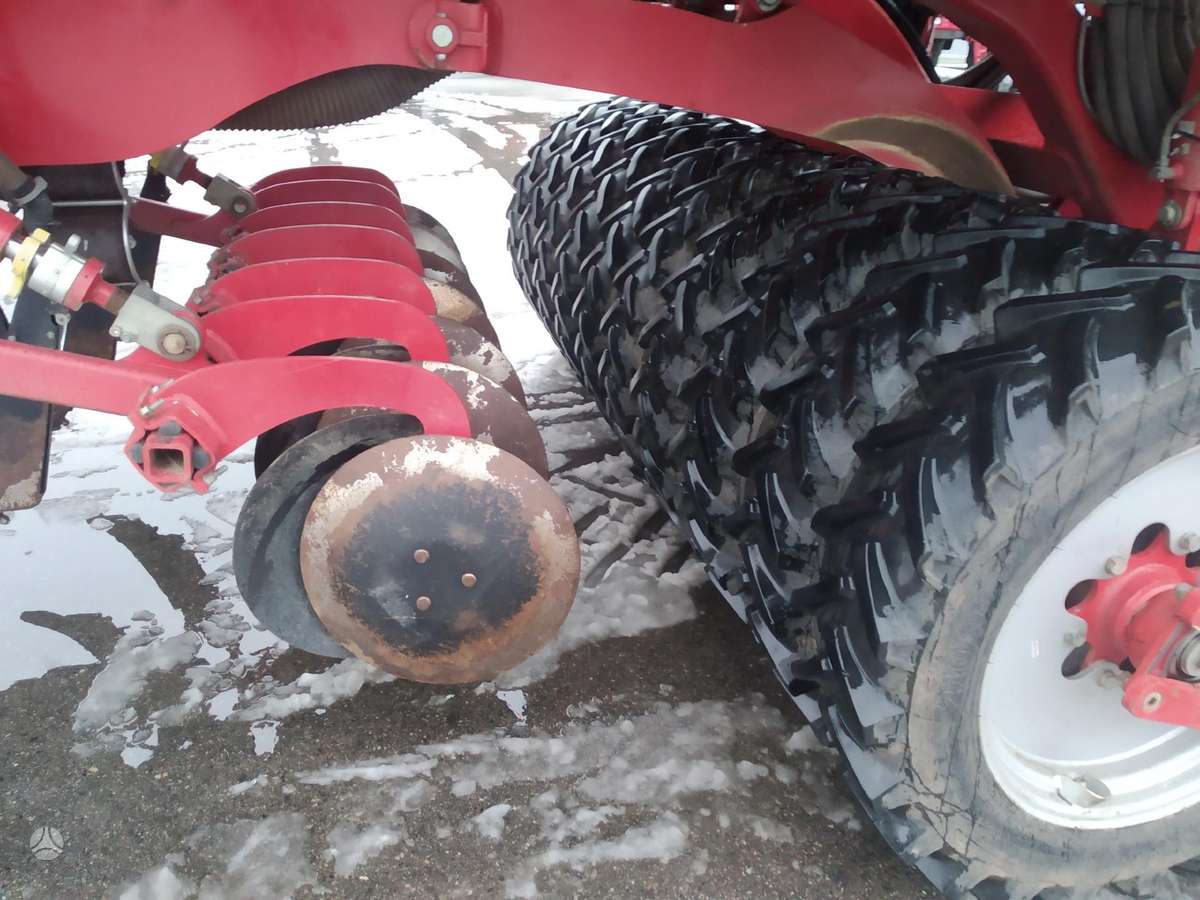

Rear tire packing roller across the full working width of the drill, 100 cm diameter
Rear packing roller with reinforced profile HD tires 10PR, tires 210/95-24 AS

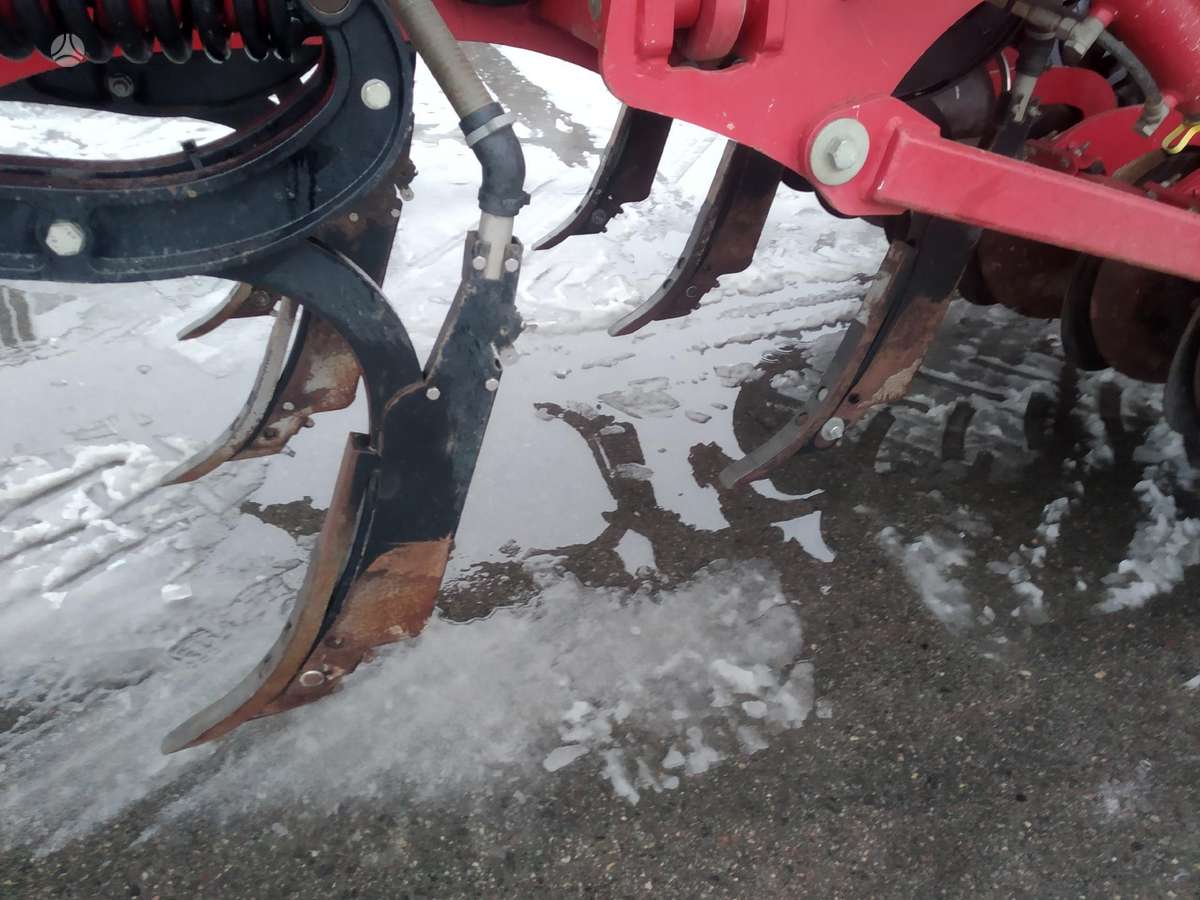

Tine fertilizer coulters 20 pcs.
TerraGrip spring tine protection
Distance between tines in a row 60.0 cm
Distance from frame to ground 75.0 cm
TurboDisc seeding system pressure on the soil from 5 - 120 kg
Category III hitch to the lower links
Electronic seed and fertilizer rate computer

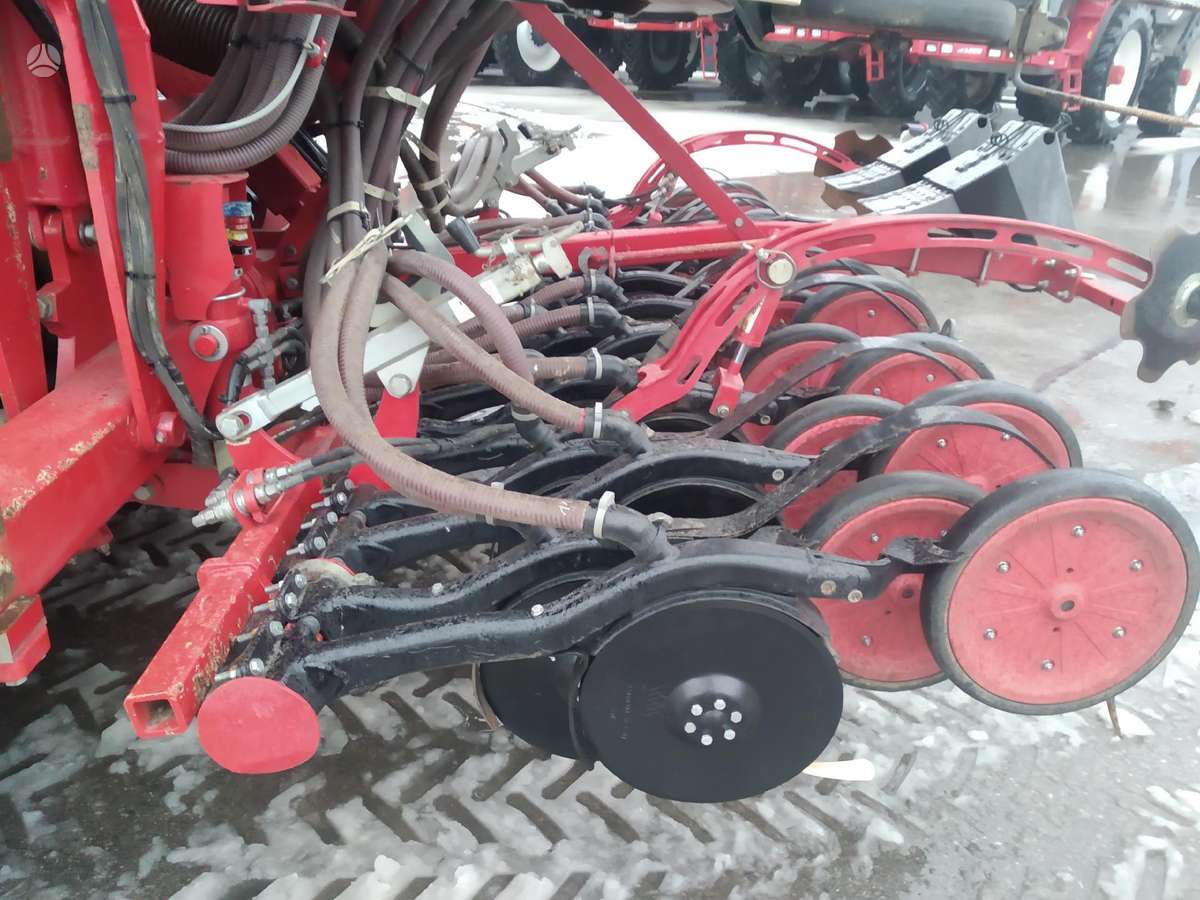

Disc seed coulters 40 pcs.
Seeding row spacing 15.0 cm
Separate seeding beam coulters 20 pcs.
Seeding row spacing 30.0 cm
Seed rate 0.7-500 kg per ha
Fertilizer rate 0.7-500kg per ha
Electronic blockage control for seed tubes 40 pcs.
Electronic blockage control for fertilizer tubes 20 pcs.
Press wheels 34 cm diameter
Seed covering harrows
Side markers
Pre-emergence markers
Tramline valves 4 pcs.
Hydraulic seed flow fan drive from the tractor hydraulics
Recommended tractor hydraulic pump capacity from 100 l/min
Lighting

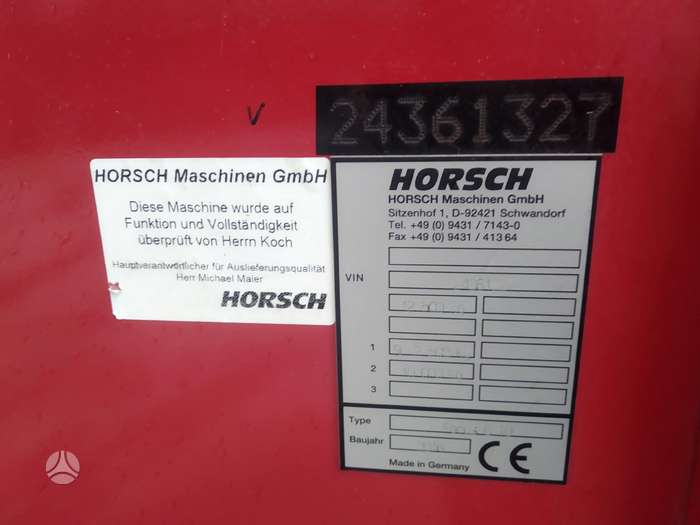

Country of origin: Germany.
4020 ha
