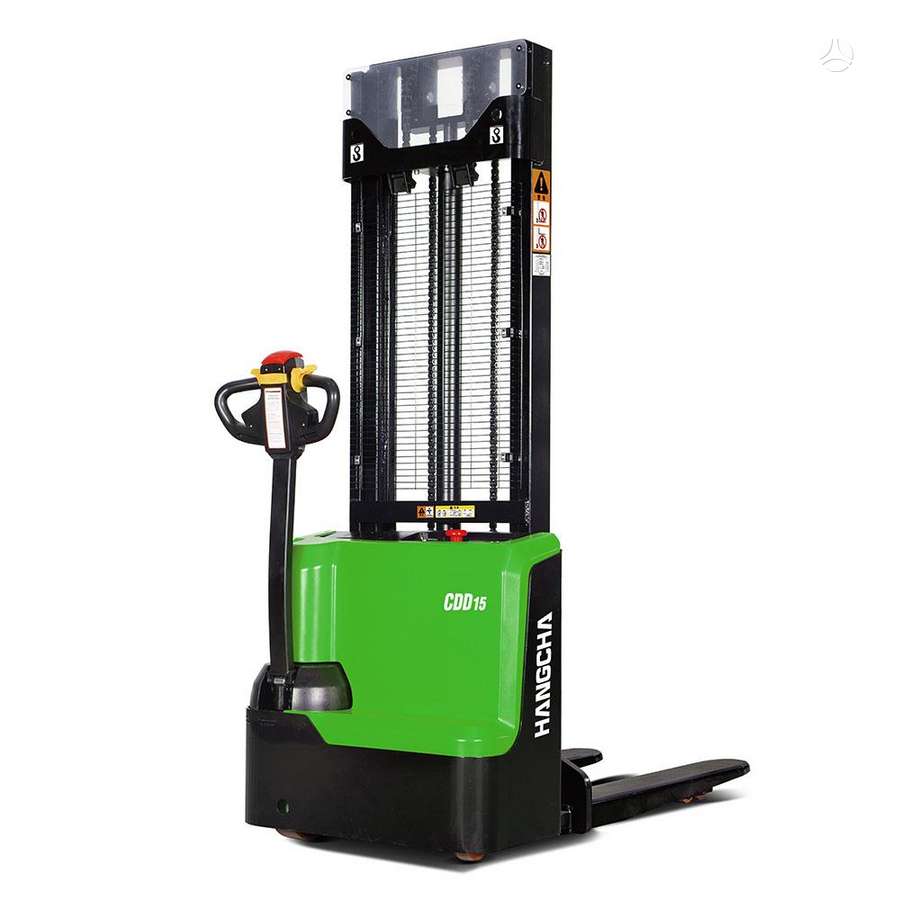

New electric pallet stacker „Hangcha CDD15-WS-I“, designed for lifting and transporting goods in warehouses and other indoor logistics areas. Compact dimensions and a 1490 mm turning radius allow for comfortable operation in limited spaces.

Lifting capacity – 1500 kg, lifting height – 3500 mm. At maximum lifting height, the lifting capacity reaches 1100 kg. The stacker is equipped with a telescopic mast and a 24 V / 60 Ah lithium-ion battery with an integrated charger.

Main technical data:

Country of manufacture - China
Lifting capacity - 1500 kg
Lifting capacity at max height - 1100 kg
Travel speed (with/without load) - 4/4.5 km/h
Maximum gradeability (with/without load) - 5%/15%
Brakes - electromagnetic
Traction motor power - 0.75 kW (DC)
Pump motor power - 2.2 kW (DC)
Mast type - telescopic
Overall height - 1480 mm
Total length of the truck - 1710 mm
Turning radius - 1490 mm
Aisle width - 1952/1997 mm
Lifting height - 3500 mm
Free lift - none
Lifting speed (with/without load) - 0.85/0.130 m/s
Lowering speed - 0.137/0.167 m/s
Fork dimensions - 70x160x1150 mm
Weight - ~550 kg
Battery - 24V 60 Ah lithium
Battery charger - yes, integrated
Hour meter - yes
Operating environment - -20°C - +40°C
Lowered fork height - 95 mm
Support leg lift - none
