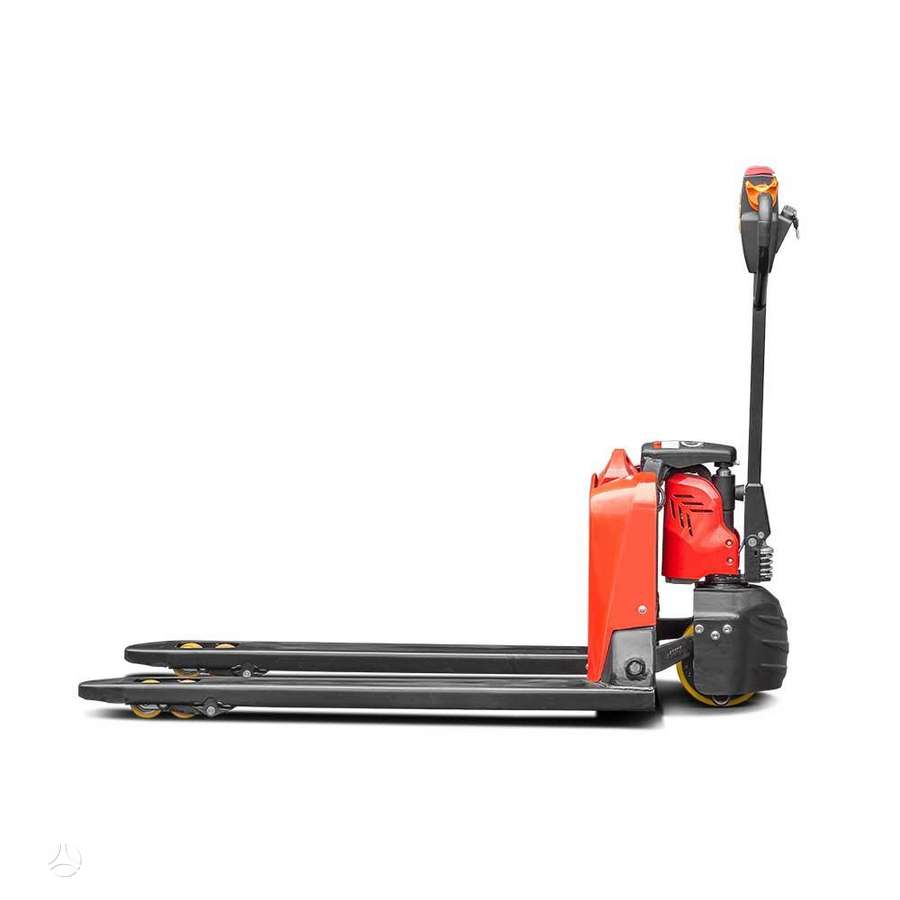

New Hangcha CBD15-JH semi-electric pallet truck for sale.

The compact JH series truck is designed for transporting pallets over short and medium distances where a small turning radius, low device weight, and comfortable operation in narrower aisles are important.

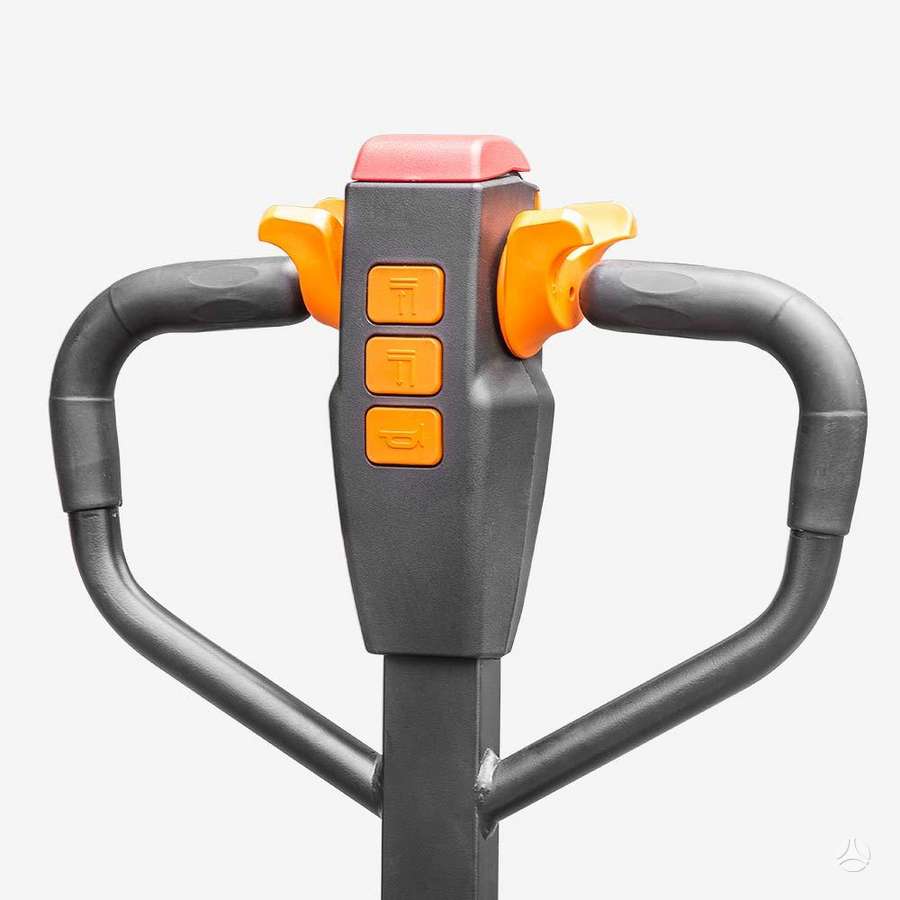

The handle features an integrated key switch, battery capacity indicator, slow speed function, and emergency reverse protection. These features help to control the truck more comfortably during daily work.

The Hangcha CBD15-JH has a removable 24 V / 20 Ah Li-ion battery. The battery is charged to 80% capacity in approximately 1 hour, making the truck convenient for intermittent work. The robust construction is adapted for regular pallet transport in warehouses, retail, and production premises.

If higher lifting capacity and a larger battery are required, the Hangcha CBD18-JH semi-electric pallet truck is also available.

Main technical data
Parameter Value
Model Hangcha CBD15-JH
Lifting capacity 1500 kg
Battery Li-ion 24 V / 20 Ah
Fork length 1150 mm
Outer fork width 550 mm
Fork lift height 200 mm
Fork lowering Mechanical
Turning radius 1398 mm
Aisle width 1804 / 1854 mm
Travel speed with / without load 4.2 / 4.5 km/h
Maximum gradeability with / without load 5 % / 10 %
Brakes Electromagnetic
Additional functions Turtle function, battery indicator, automatic speed reduction
Truck weight 142 kg
Availability In stock
