KOMATSU CARE – free maintenance up to 2000 m/h including labor, parts, materials, and travel to the excavator (excluding valve adjustment at 2000 m/h).

Description:
WEIGHT
- approx. 14.8 t;

ENGINE
- Komatsu SAA4D95E-7, turbo diesel engine, meeting EURO 4 emission standard;
- 72 kW / 97 HP at 2050 rpm, 4 cylinders, 3.26 l displacement;
- Fuel tank capacity – 200 l;
- AdBlue tank capacity – 21.1 l;
- Engine oil capacity – 11.5 l;
- Coolant capacity – 16.1 l;

TRANSMISSION
- Hydrostatic;
- Speeds - 2.9 / 5.1 km/h;
- Maximum drawbar pull – 12500 kg;

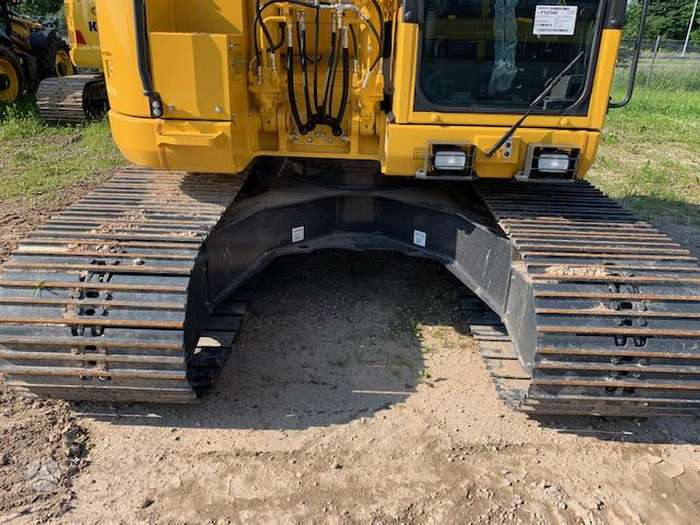

TRACKS
- 700 mm;

BRAKE SYSTEM:
- Hydraulic;

BOOM
- Mono boom type, maximum digging arm length - 3000 mm:
1.1. Maximum digging depth – 5900 mm;
1.2. Maximum digging height – 9700 mm;
1.3. Maximum reach – 8720 mm;

HYDRAULIC SYSTEM:
- KOMATSU HidrauMind;
- Variable displacement hydraulic pump, flow rate 242 l/min;
- Hydraulic tank capacity – 69 l;
- Additional hydraulic outlets, two pairs;

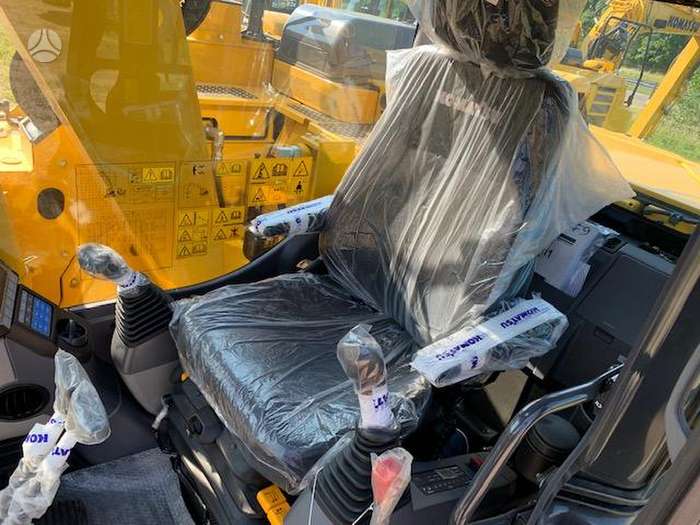

CABIN

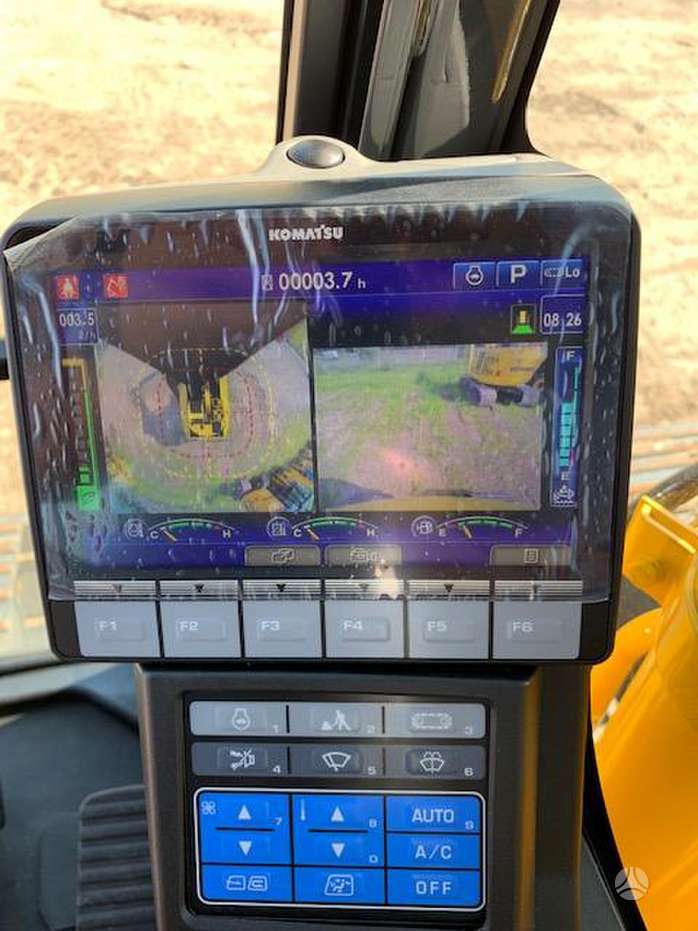

- SPACE CAB TM - ergonomic, heated, ventilated (automatic climate control) and sealed operator's cabin with higher internal air pressure (for dust prevention). Sun protection, adjustable seat with safety belt, 12V outlet for accessories. Integrated, multifunctional LCD monitor with detailed technical information about the main operating units of the machine, and the ability to select individual working modes. Six individual working modes – Power, Economy, Attachment Power, Attachment Economy, Lifting, and Breaker modes.
- POWERMAX function – instantaneous hydraulic power boost.
- Two-stage air filtration system with dust indicator.
- Automatic fuel line bleeding.
- Preventive engine overheating system.
- Automatic engine pre-heating system.
- Engine start blocking with a selected password.
- Electronic overload notification.
- Reversing alarm.
- Audio system with MP3 input.

OTHER EQUIPMENT:
- KOMTRAX – satellite-based, 3G-supported, wireless excavator parameter monitoring system;
- Rear and side view cameras;
- Additional hydraulic line;
- Central lubrication system;
- Isothermal box;
- Auto-idle function;
- External storage box.
