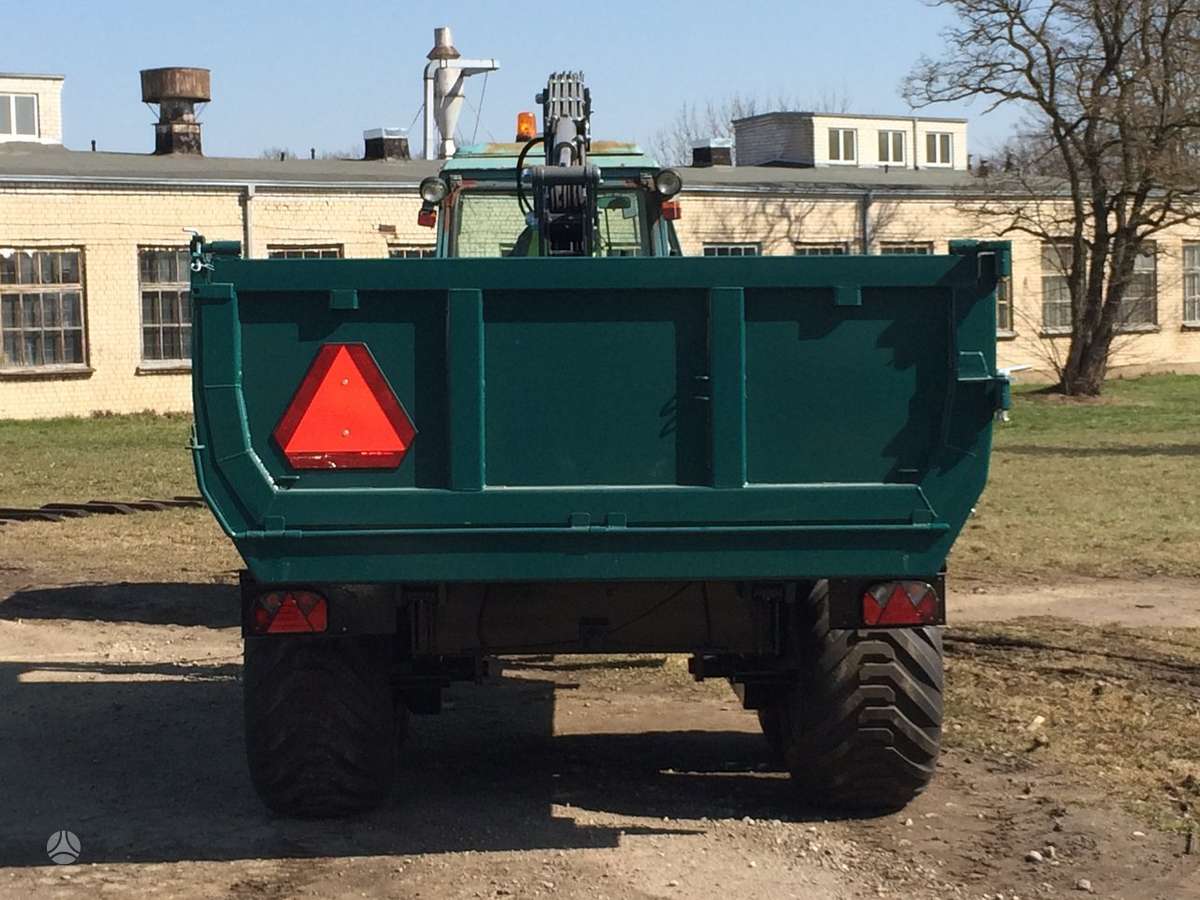

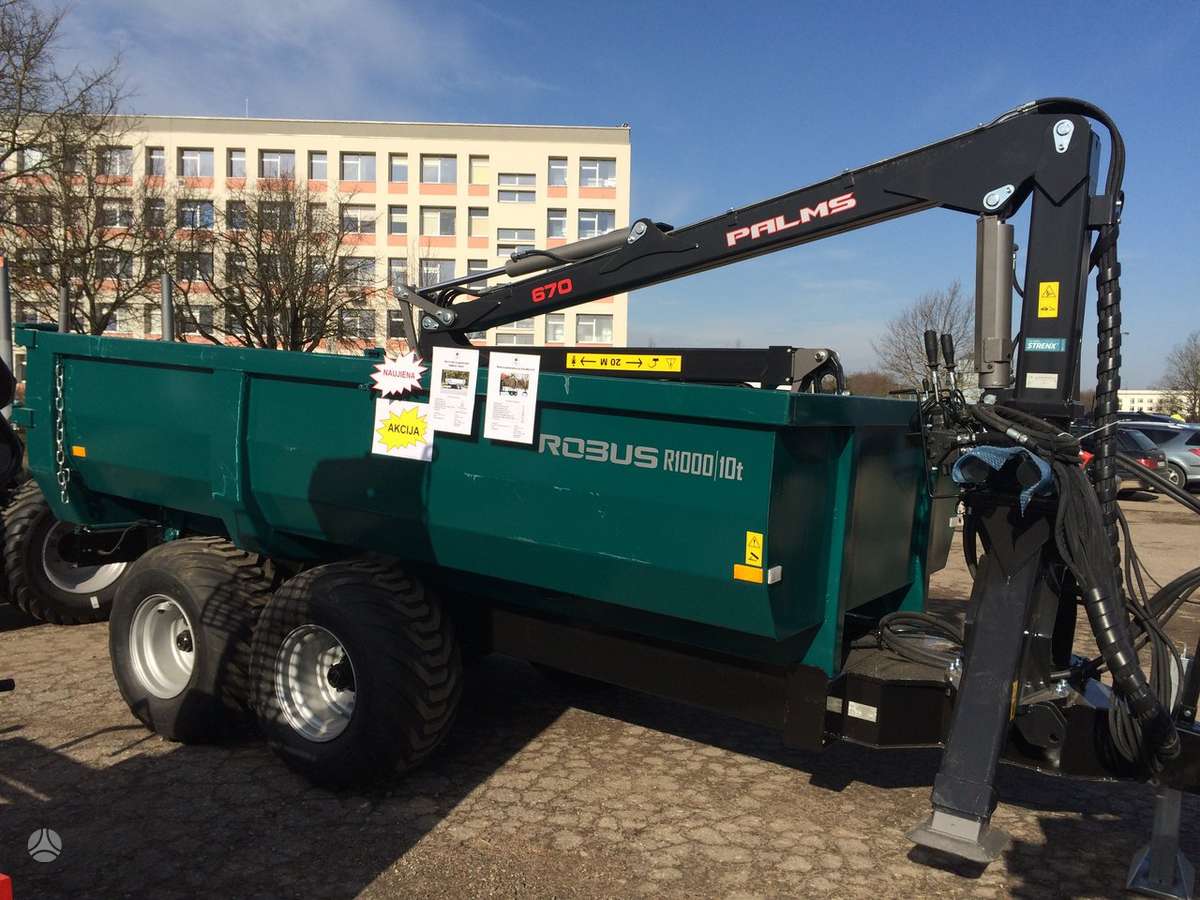

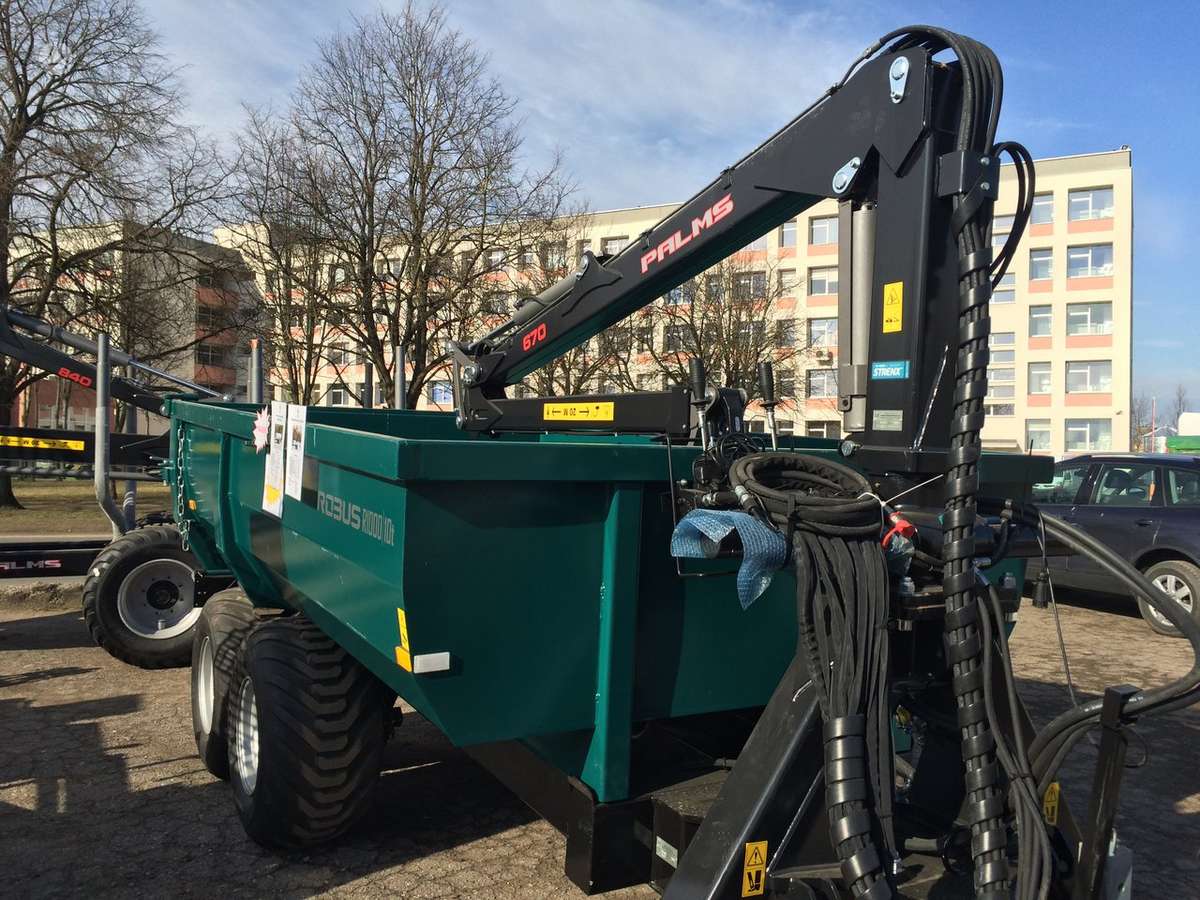

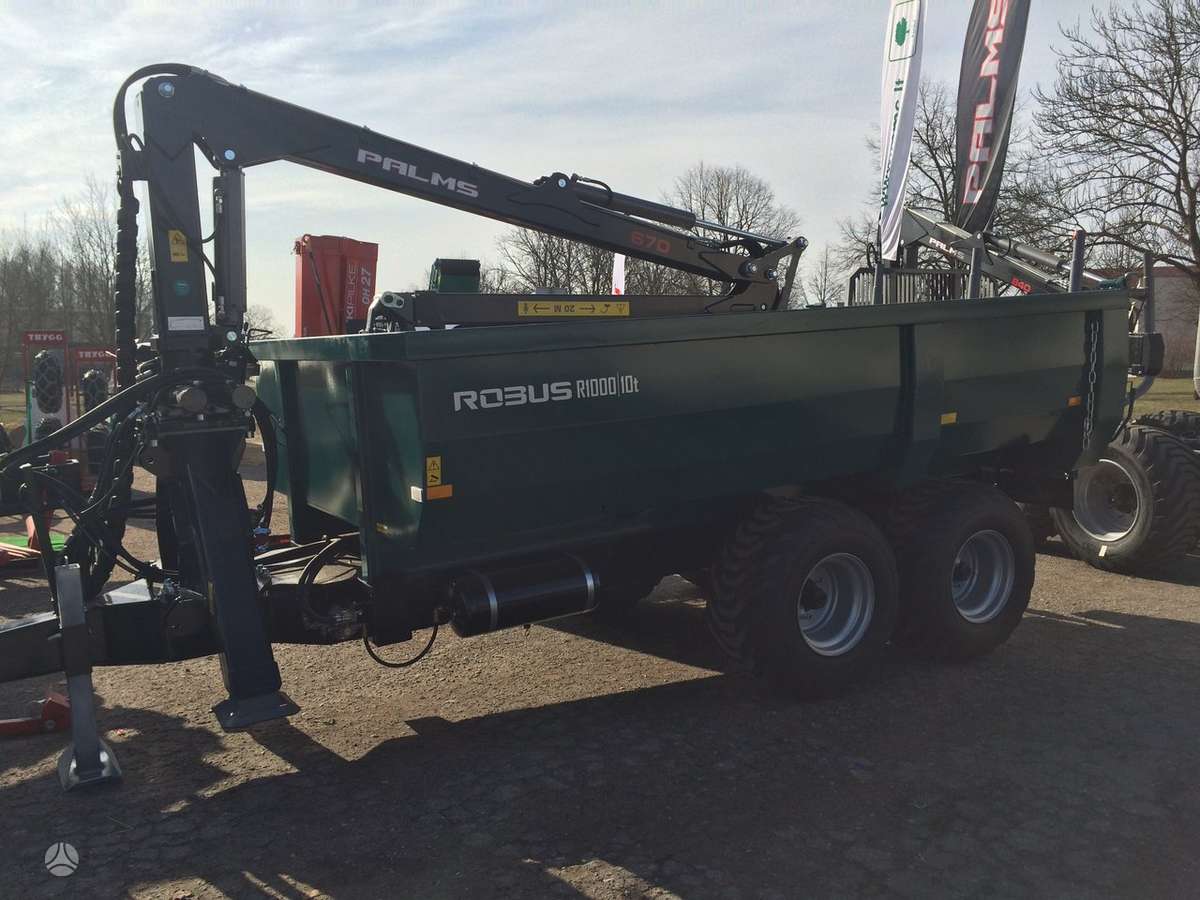

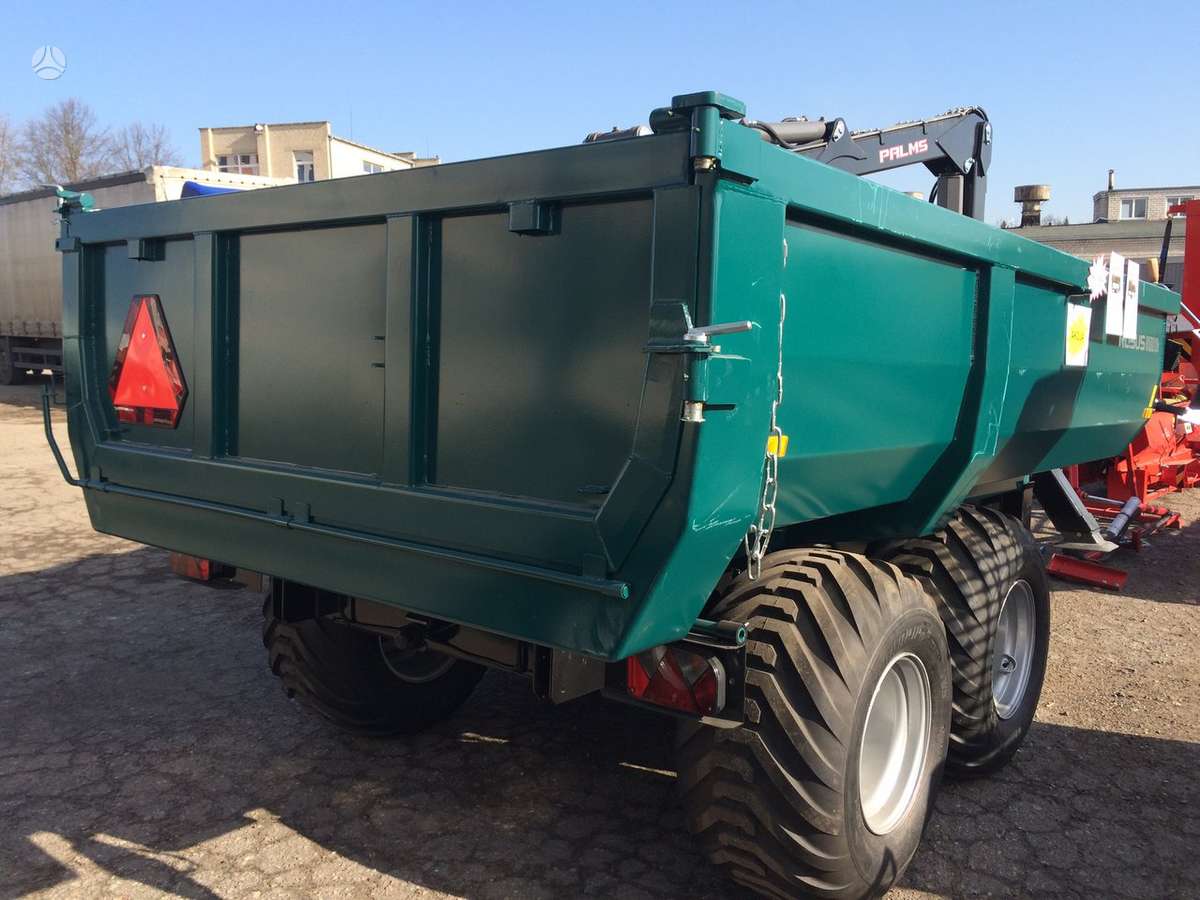

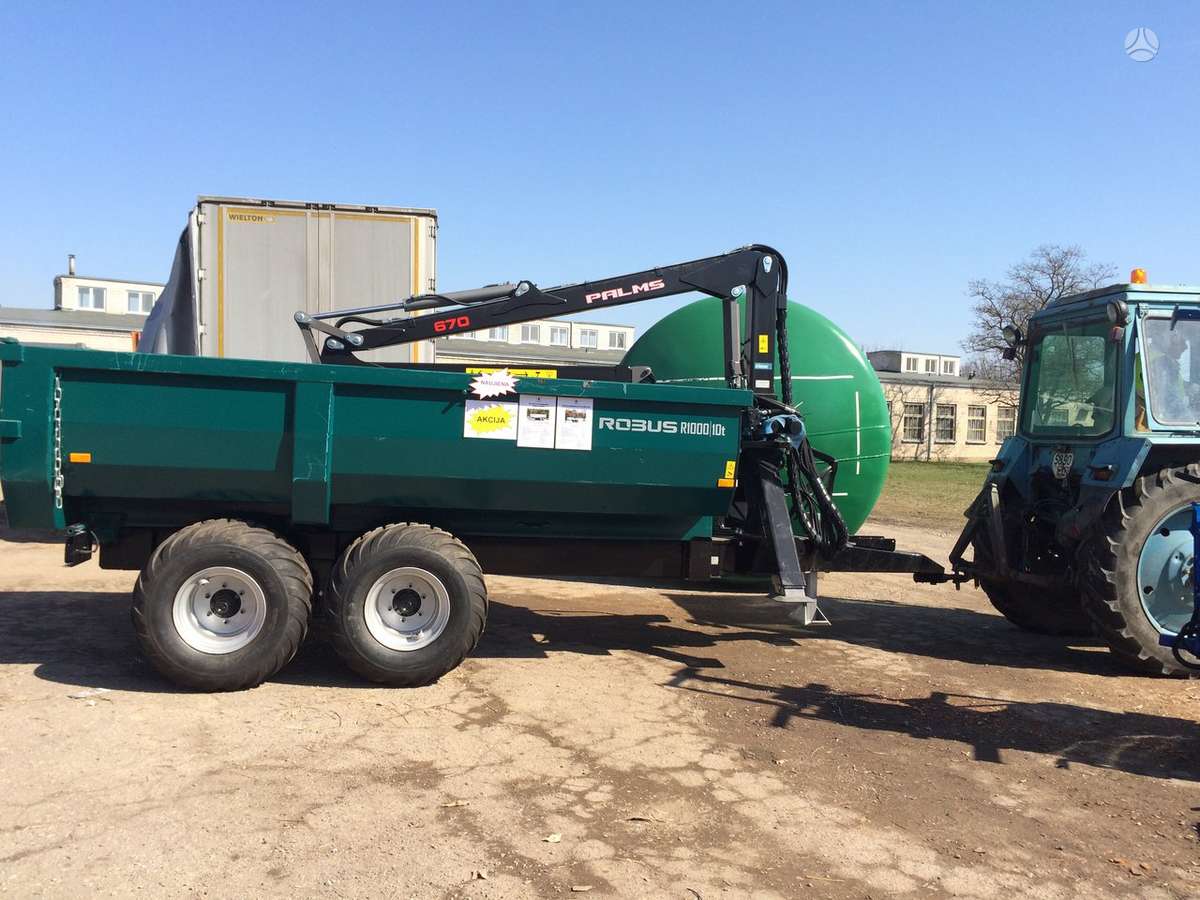

We offer for purchase an Estonian-made universal self-loading tipping dropside trailer ROBUS R1000T with a PALMS 3.67 hydraulic crane.

Technical data and specification:
Trailer R1000T
Lifting capacity, kg 10000
Trailer weight, kg 2350
Trailer height, mm 1891
Trailer width, mm 2550
Trailer length, mm 5685
Side wall height, mm 800
Platform dimensions, mm 3970x2310x800
Capacity, m³ 7.4
Drawbar eye load, kg 1800
Permissible axle load, kg 5275
Number of axles 2
Single axle brakes Pneumatic+hydraulic
Tipping cylinder NAS 4
Right-opening hanging rear tailgate Yes
Hydraulic system operating pressure, bar 180
Axle/number of nuts 70x70/6
Maximum speed, km/h 40
Wheels 400/60-15.5

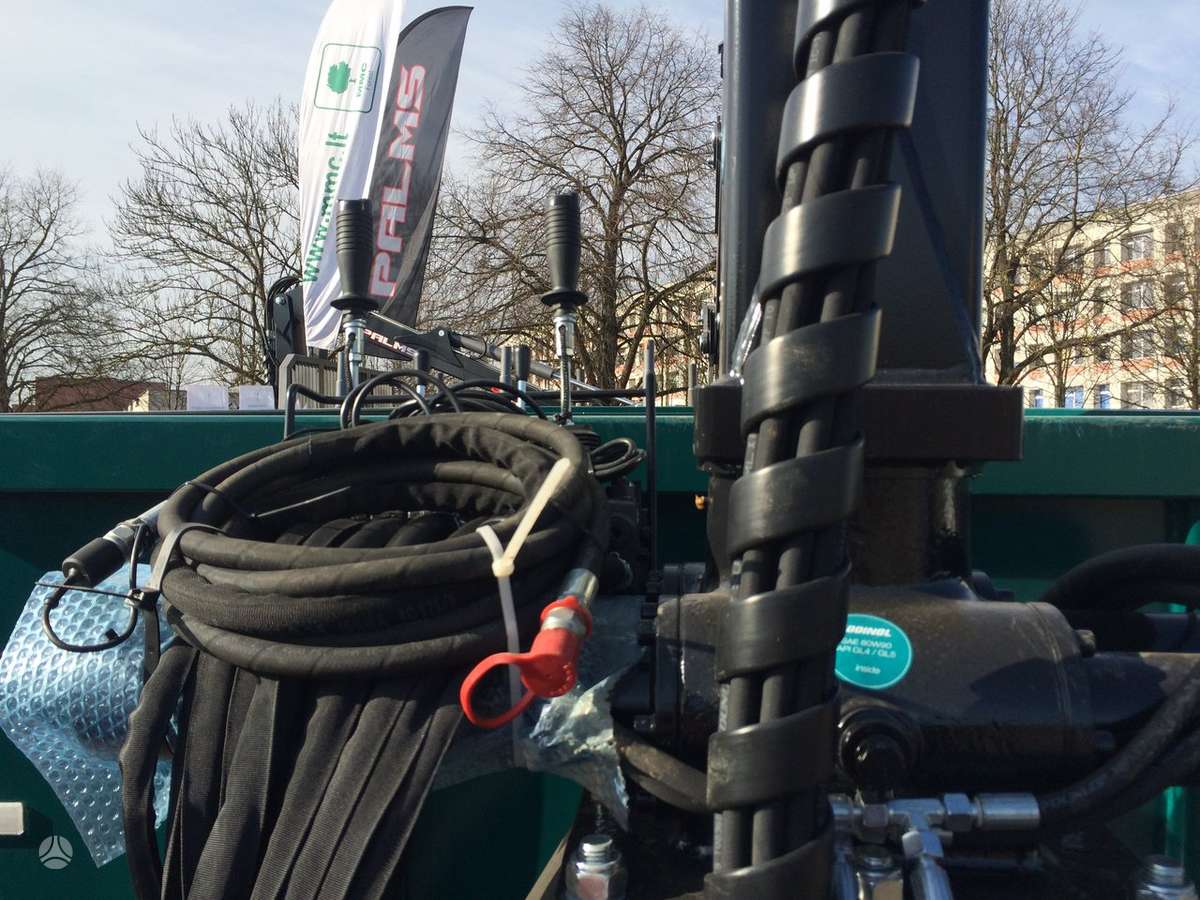

Hydraulic crane PALMS 3.65
Boom reach, m 6.5
Lifting torque, kNm 37
Required min hydraulic oil pump capacity, l/min. 30-45
Hydraulic system operating pressure, bar 190
Grapple 0.18
Boom slewing cylinders, pcs. 4
Boom slewing angle, ° 370
Rotator rotation angle, degrees unlimited
Lifting capacity at 4 m, kg 710
Lifting capacity at full reach, kg 420
Control valve HC 4/8 XY+el. on/off
Support legs A-type

Trailer price without hydraulic crane from - 11000 EUR + VAT

Other PALMS hydraulic cranes are also available for selection
PALMS 3.67
PALMS 4.70
