Official PALMSE Mehananikakoda OU (Estonia) factory representative in Lithuania UAB MMC Forest offers for purchase a compact and efficient self-loading timber trailer PALMS 8S with an affordable but powerful hydraulic crane P3.63

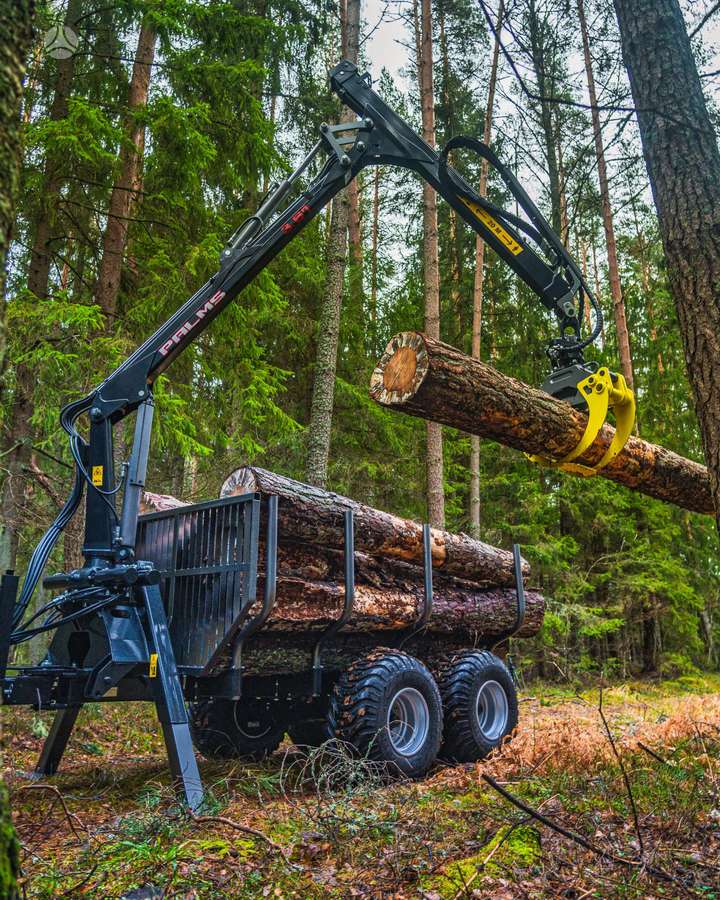

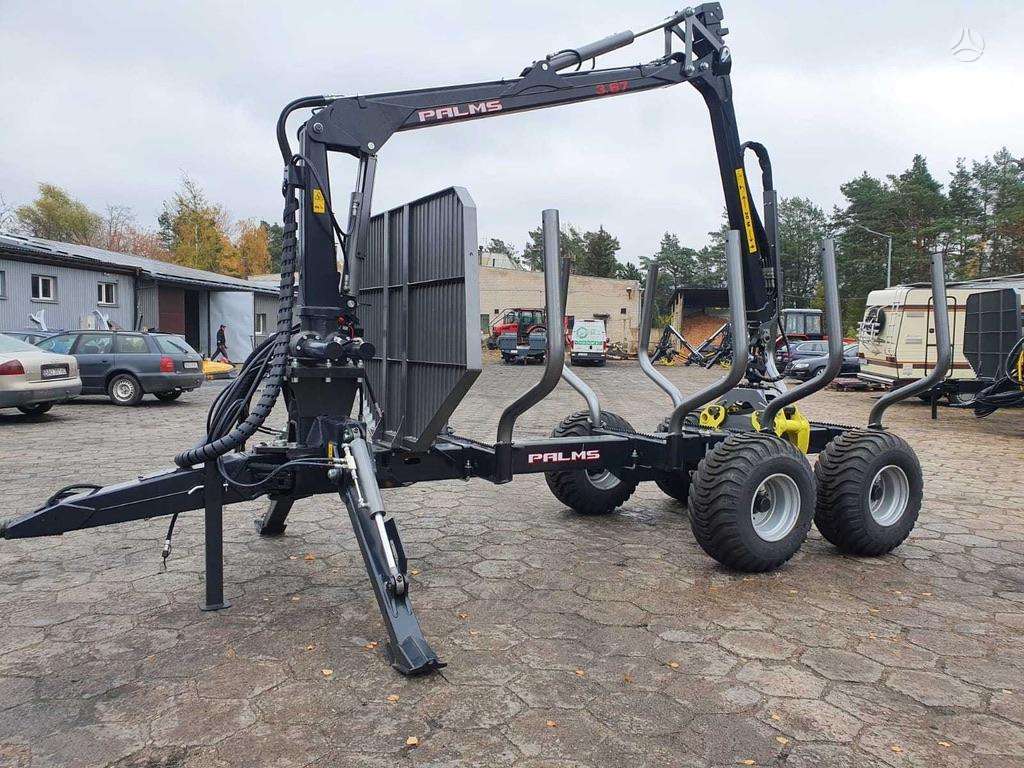

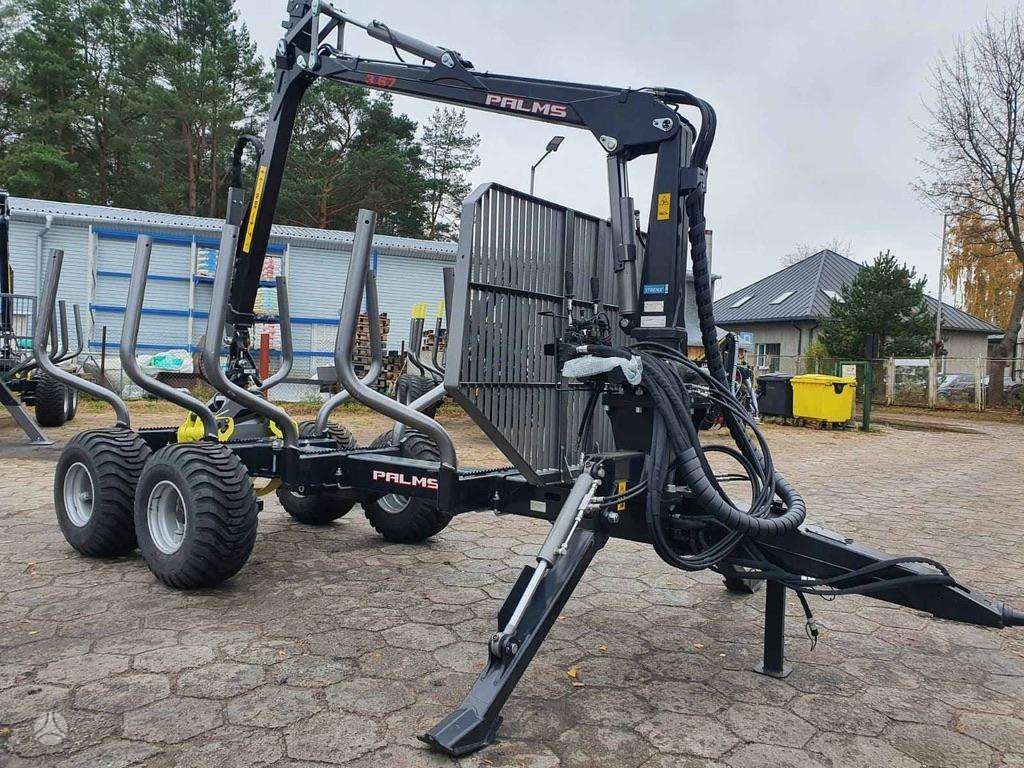

Hydraulic crane PALMS 3.63

Boom reach, m 6.3
Lifting torque, kNm 36
Required min hydraulic oil pump capacity, l/min 20-35
Hydraulic system working pressure, bar 190
Grapple area, m² 0.16
Boom slewing cylinders, pcs. 4
Boom slewing angle, degrees 370
Rotator rotation angle, degrees unlimited
Lifting capacity at 4 m, kg 655
Lifting capacity at full reach, kg 355
Mechanical control valve 5/7 XY
Telescopic support legs included
Weight, without support legs and control valve, kg 415

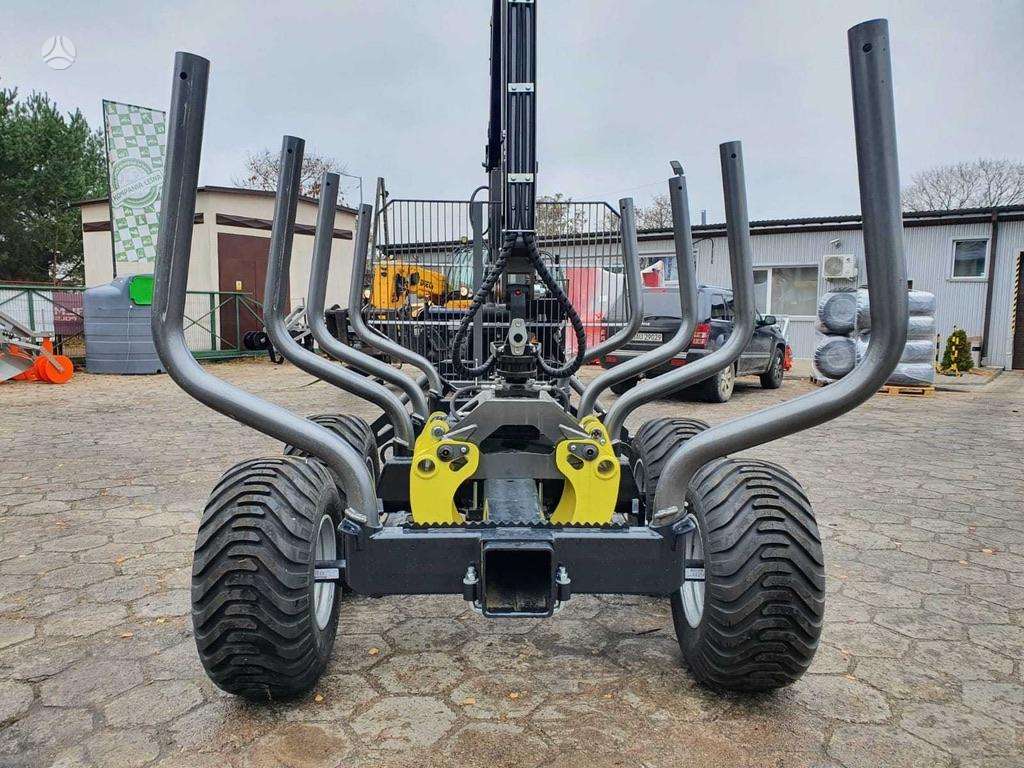

Timber trailer PALMS 8S

Payload, kg 8000 +
Trailer weight, kg 1180
Frame construction single-beam
Frame 1x160x160x8
Number of bunks, pcs. 8
Trailer width, mm 2070
Trailer length, mm 5690
Loading area (cross-sectional area), m² 2.0
Loading area length without frame extension, mm 3550
Wheels 400/60-15.5
Drawbar steering cylinders, pcs 2

Leasing options available.

We provide a 36-month warranty for the mechanical part. We guarantee post-warranty service and supply of spare parts.

We also offer Scandinavian forestry machinery from other companies.
You can find more information on our website: www.mmc.lt and www.palms.eu
