Hydraulic top link, Cat.1 (19.2mm) toplink

Description

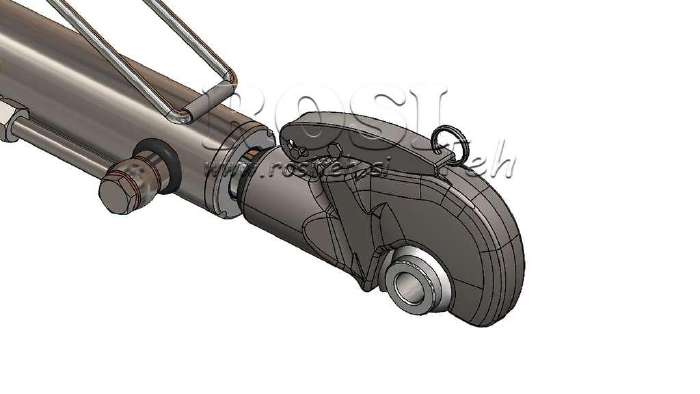

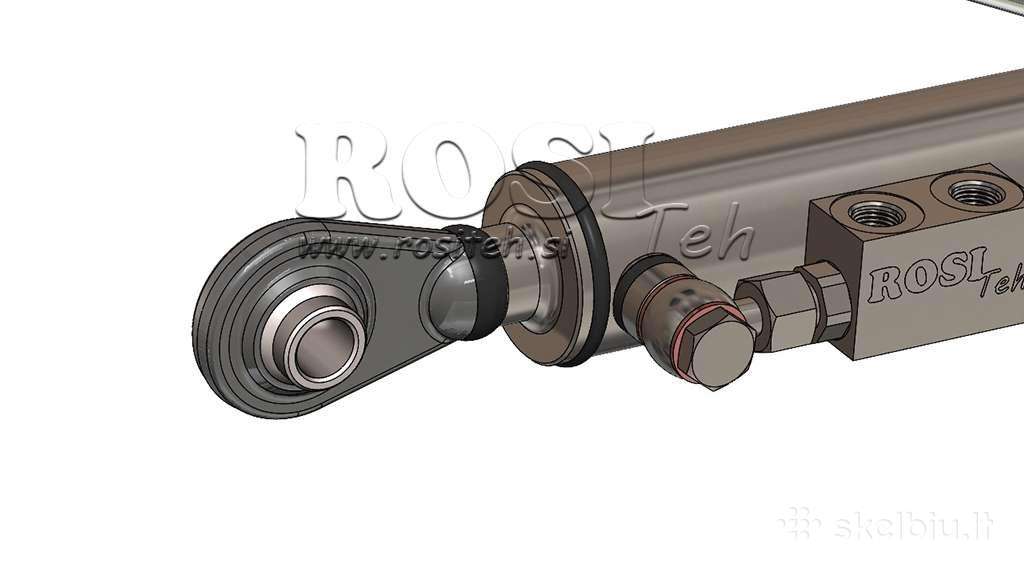

Hydraulic third link with spherical eye and locking hook (welded), with automatic locking check valve. Operates in both directions.

All hydraulic links are also hot-dip galvanized.

Category 1 – designed for tractors from 20 HP to 55 HP
Spherical eye diameter: fi 19.2 mm
Cylinder piston: fi 50 mm (outer diameter fi 60 mm), piston rod: fi 30 mm

Stroke and length:

Stroke 160 mm (length: min. 485 mm – max. 645 mm) – 171.00 €

Stroke 210 mm (length: min. 535 mm – max. 745 mm) – 176.00 €

Stroke 280 mm (length: min. 605 mm – max. 885 mm) – 178.00 €

Stroke 400 mm (length: min. 725 mm – max. 1125 mm) – 183.00 €

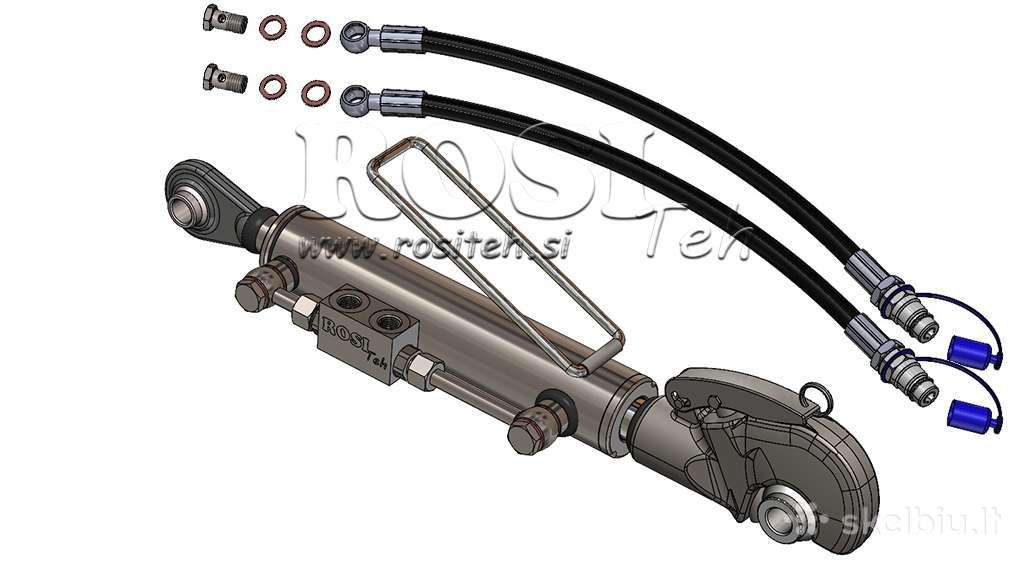

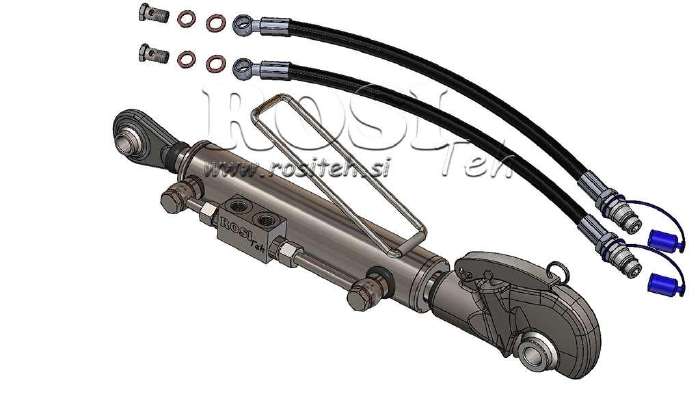

Hydraulic hose kit included for free!

All prices include statutory VAT, shipping costs are extra.

The cylinders in the offer are new, tested products with a 2-year warranty.

Fast delivery available.

For orders or additional information – call the provided number, write via email, WhatsApp, or order online (link below):
