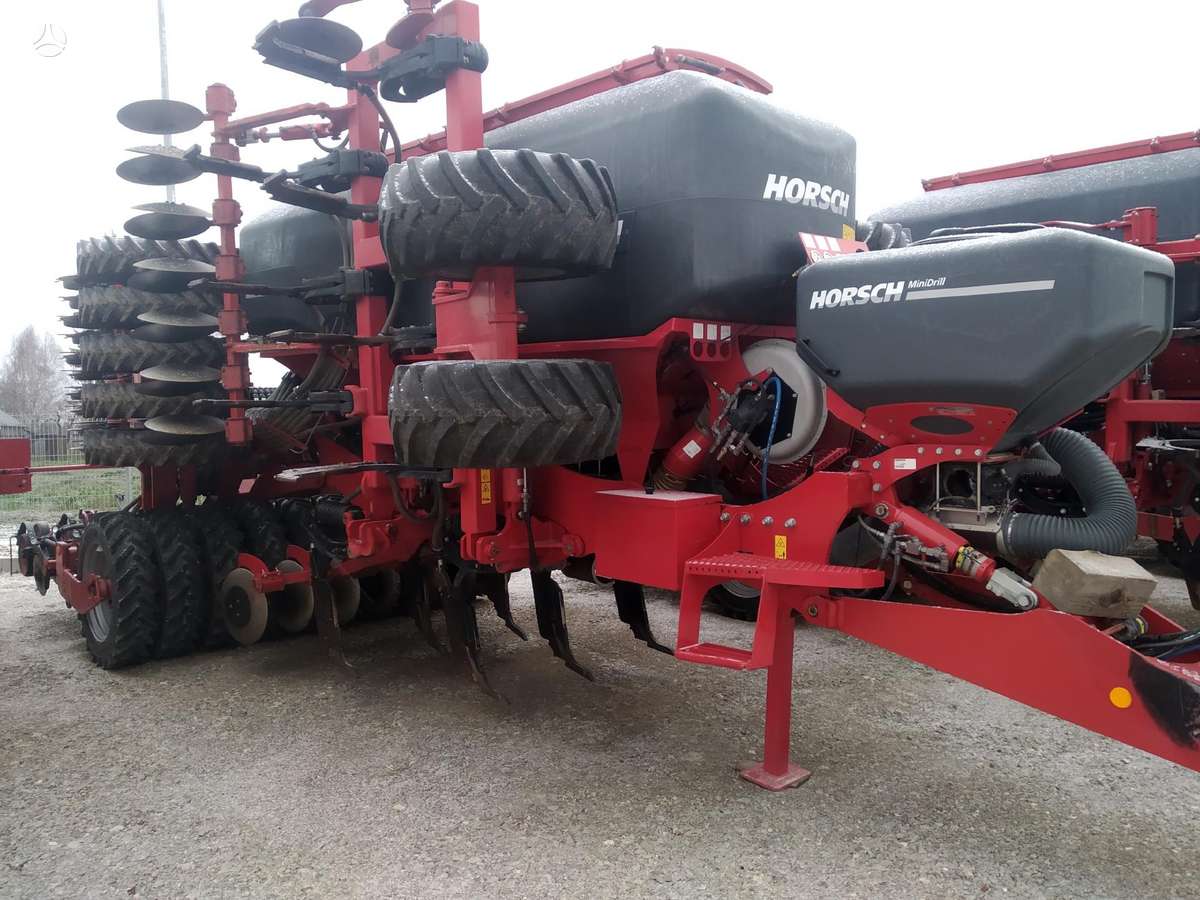

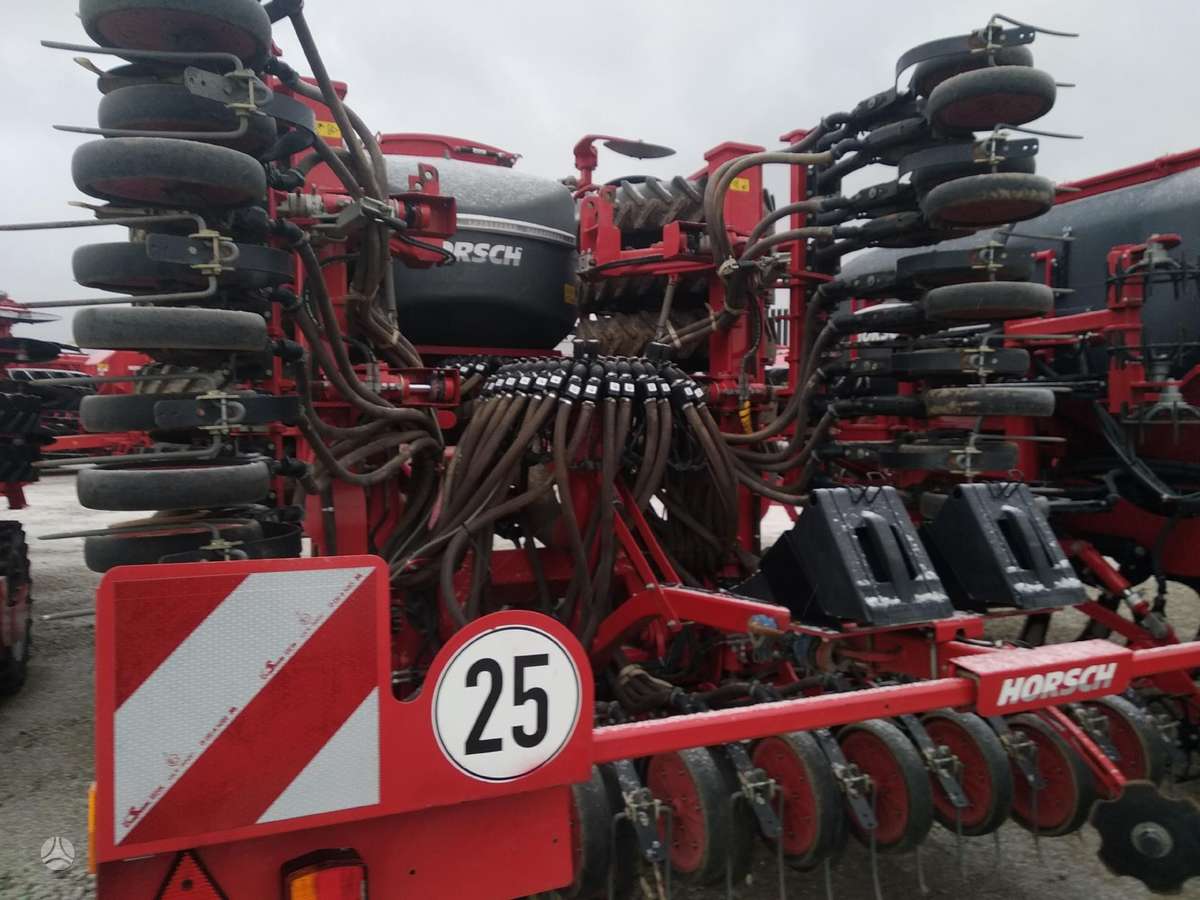

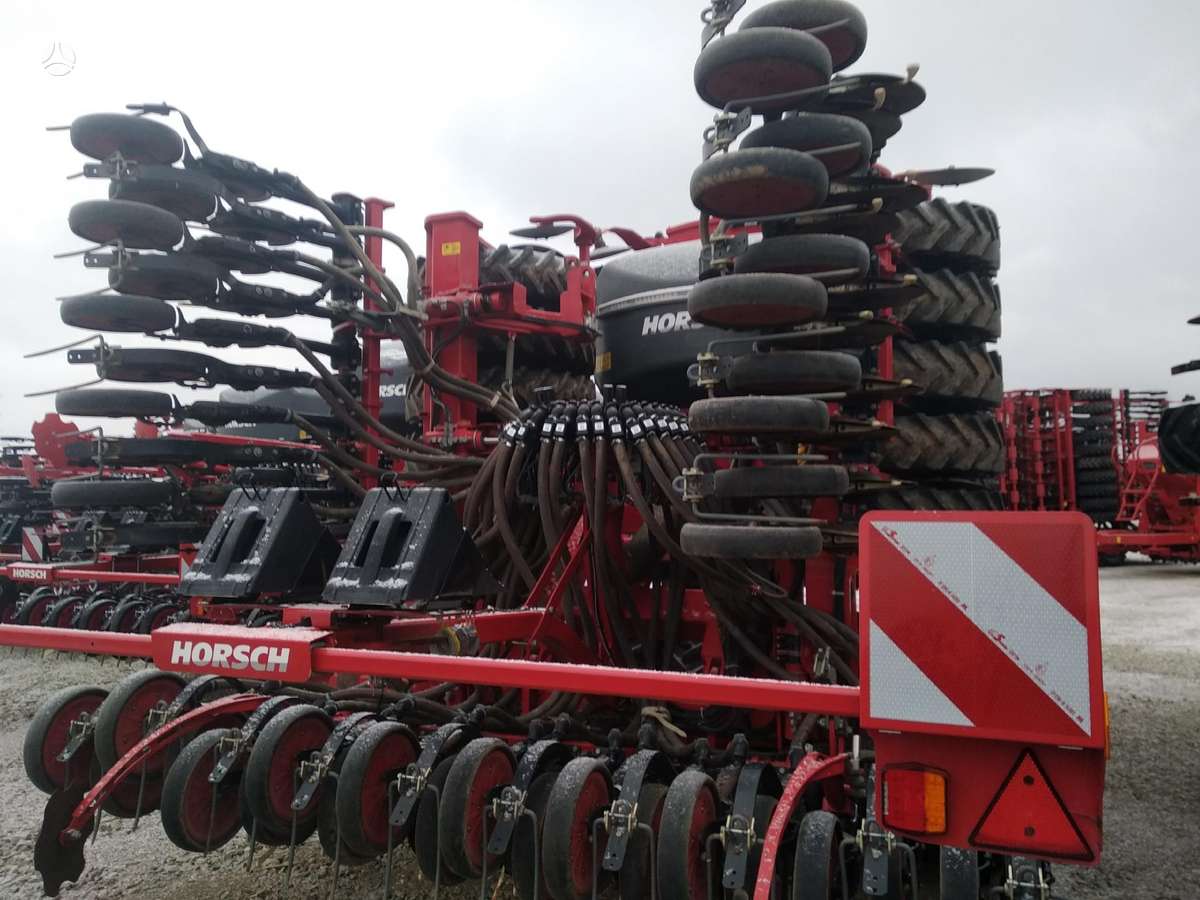

HORSCH Focus 6TD
Working width 6.00 m
Transport width 2.98 m
Transport height 3.70 m
Transport length 10.40 m
Weight 9,500 kg
Seed/fertilizer hopper 5000 l divided into two parts at a 40:60 ratio
Hopper filling opening 0.66x1.22/0.66x1.68
Hopper filling height 2.95
Support wheels 15.0/55-17
Rear tire compaction roller across the full working width of the drill, 100 cm diameter

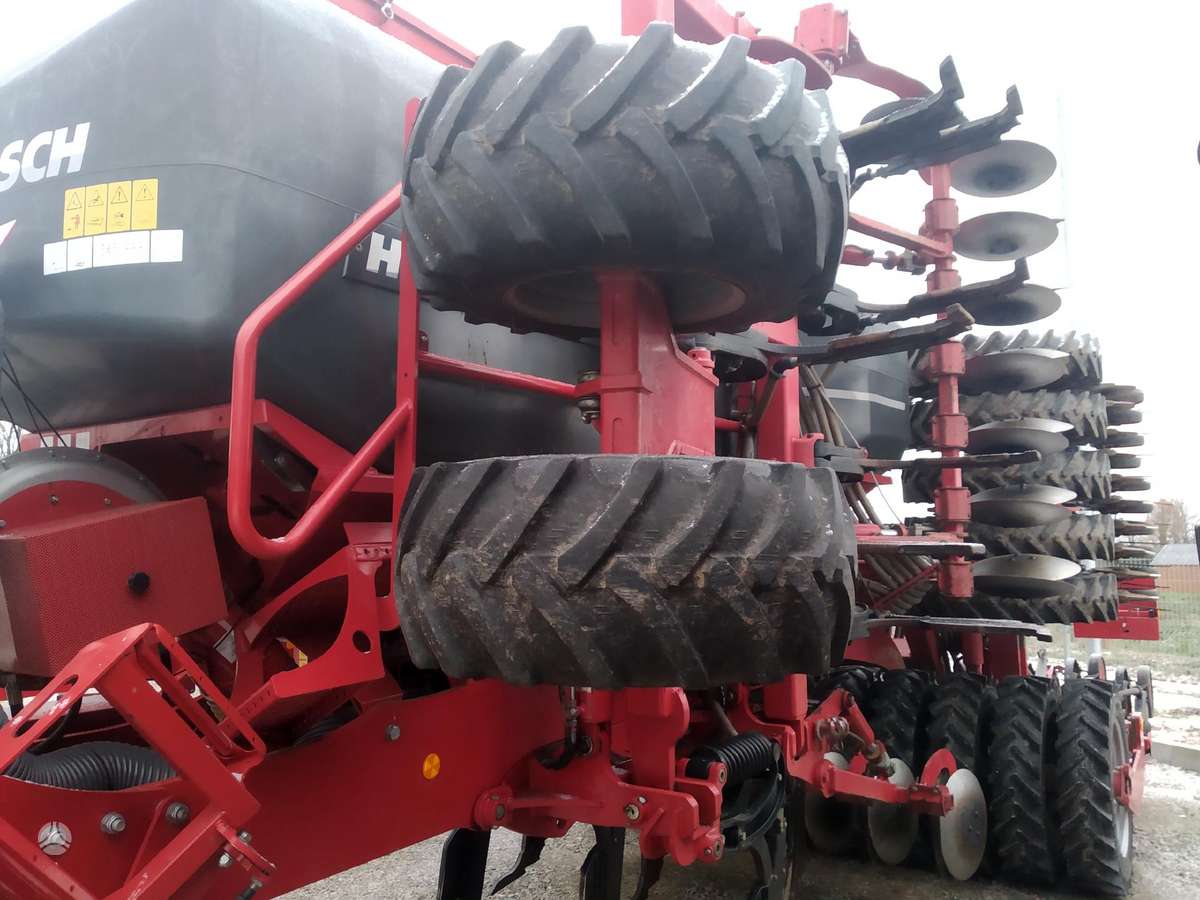

Rear compaction roller with reinforced profile HD tires 10PR, tires 210/95-24 AS

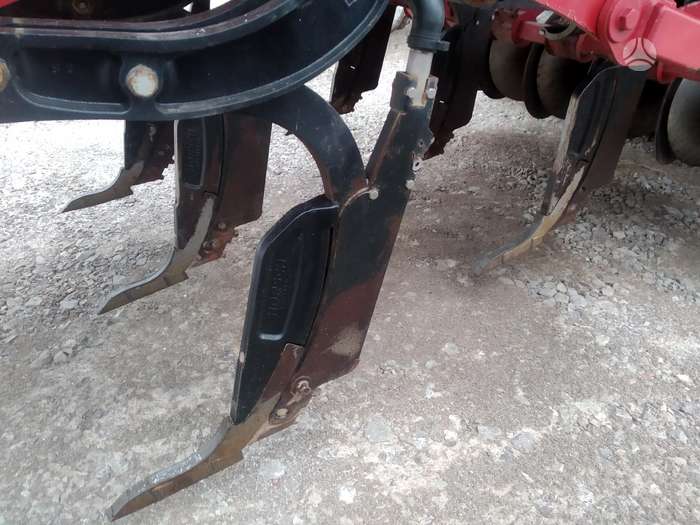

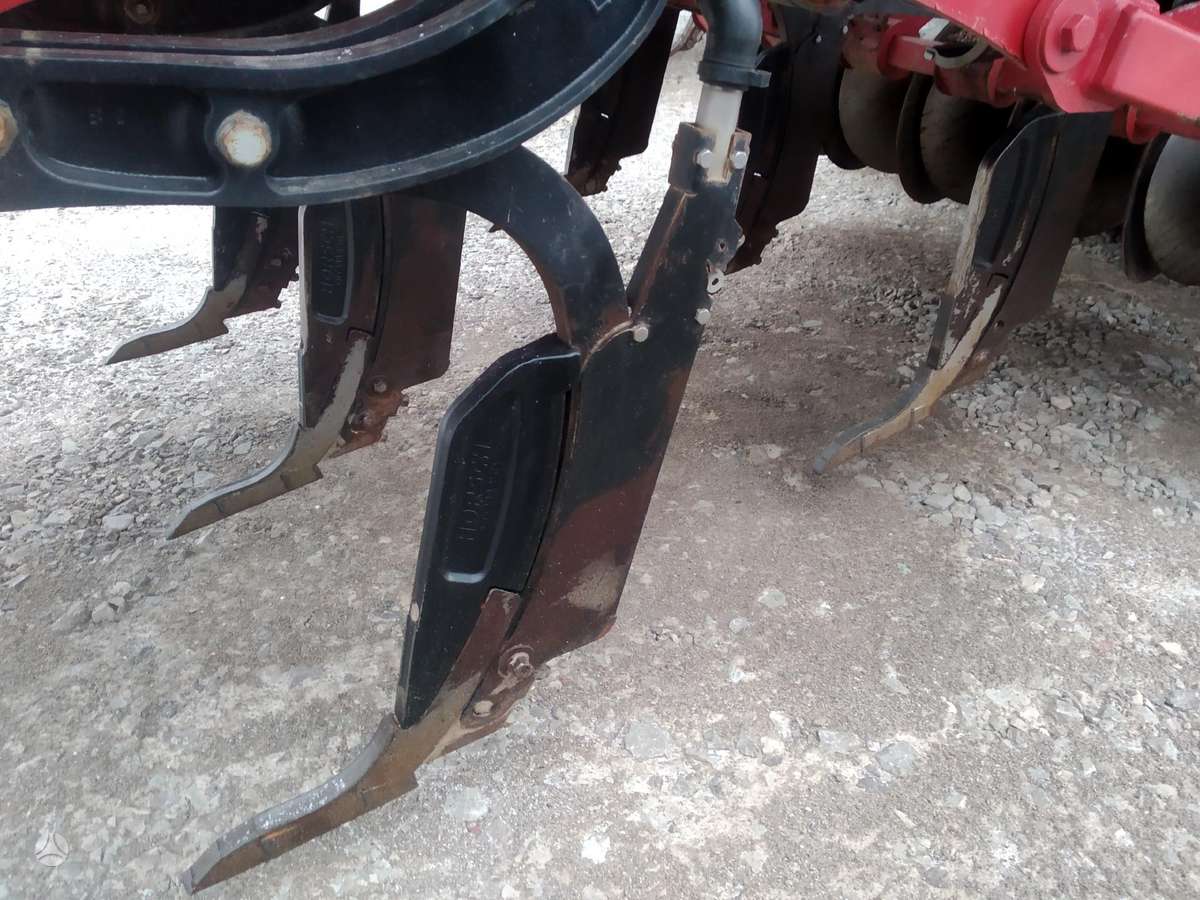

Tine fertilizer placement coulters 20 pcs.
TerraGrip spring tine protection
Tine spacing in a row 60.0 cm
Distance from frame to ground 75.0 cm
TurboDisc seeding system pressure on soil from 5 - 120 kg

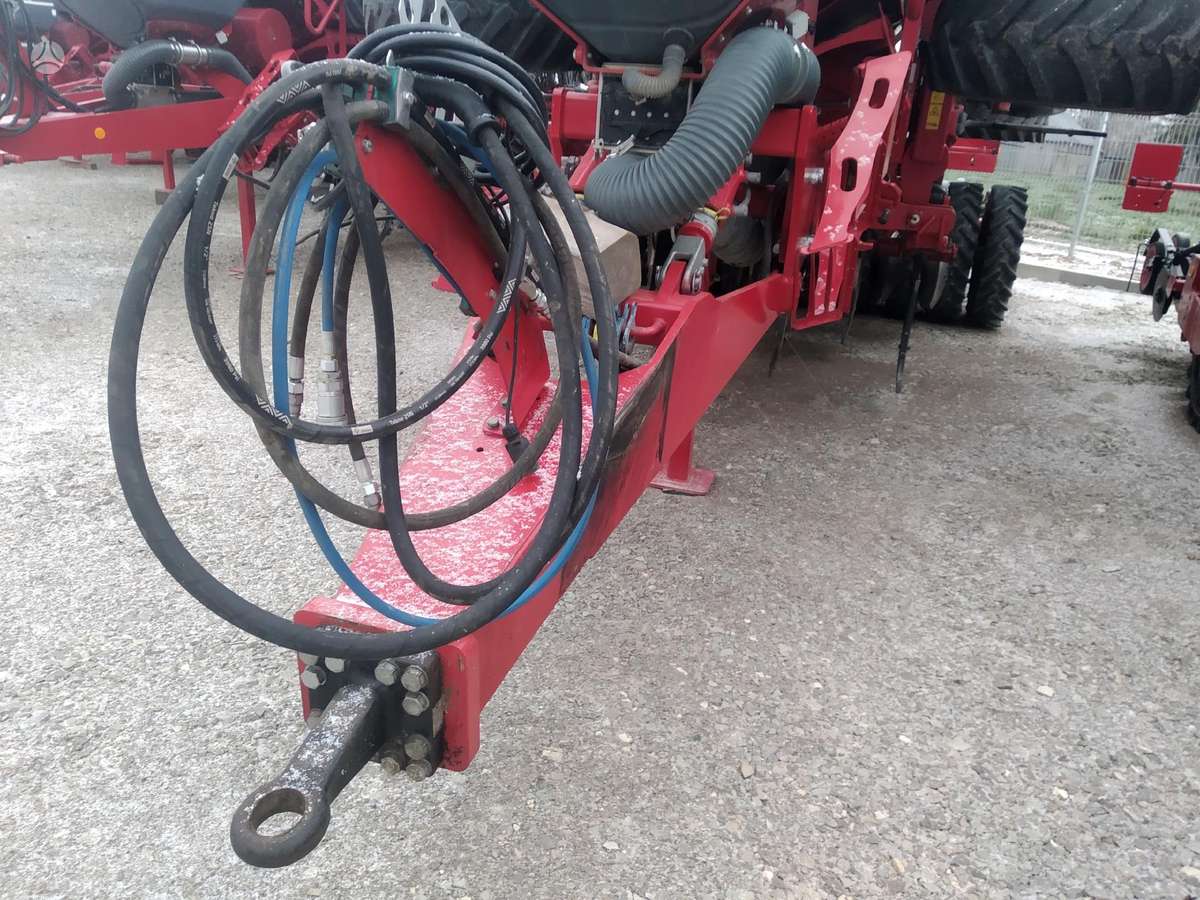

Coupling Category III to the lower links
Additional small seed hopper MiniDrill (capacity 400 l)
Electronic seed and fertilizer rate computer

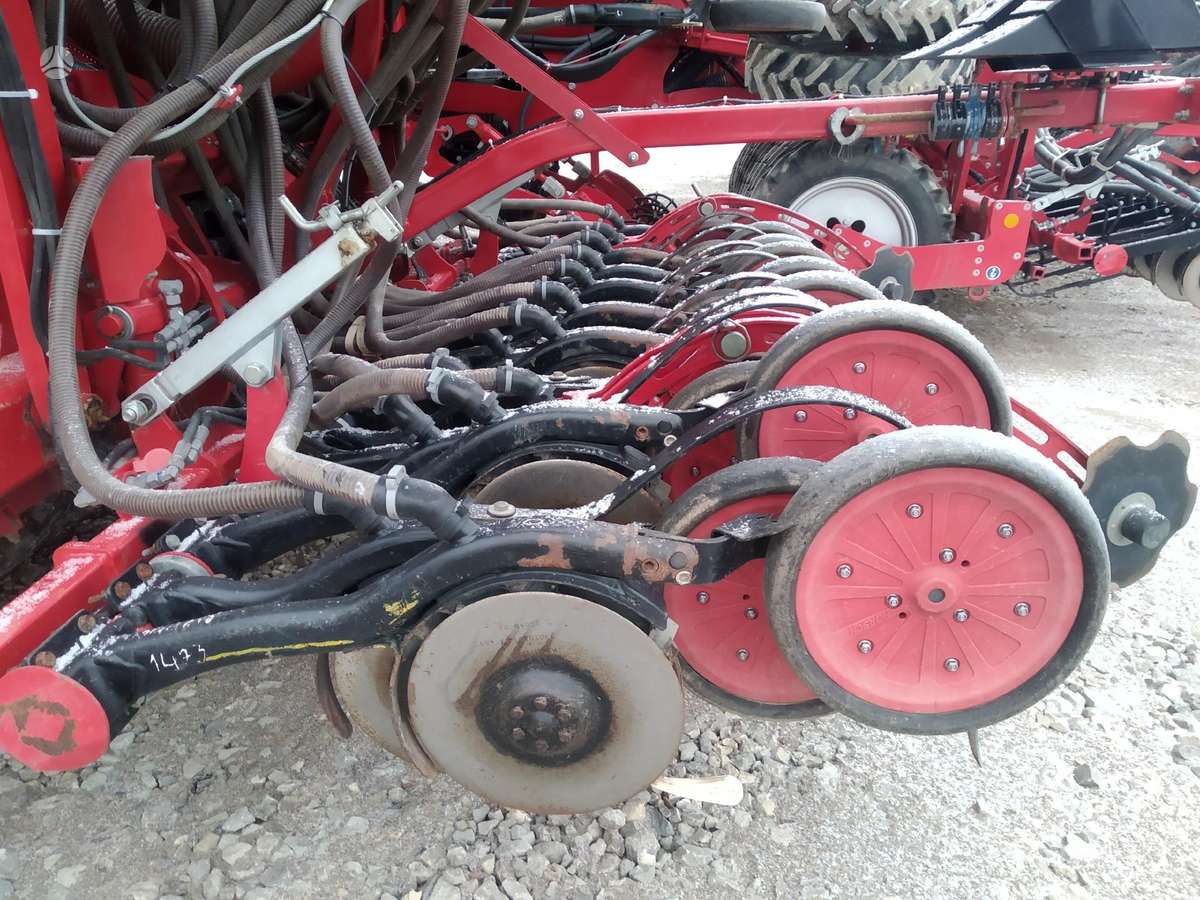

Disc seed placement coulters 40 pcs.
Sowing row spacing 15.0 cm
Separate seeding beam placement coulters 20 pcs.
Sowing row spacing 30.0 cm
Seed rate 0.7-500 kg per ha
Fertilizer rate 0.7-500 kg per ha
Electronic blockage control for seed tubes 40 pcs.
Electronic blockage control for fertilizer tubes 20 pcs.

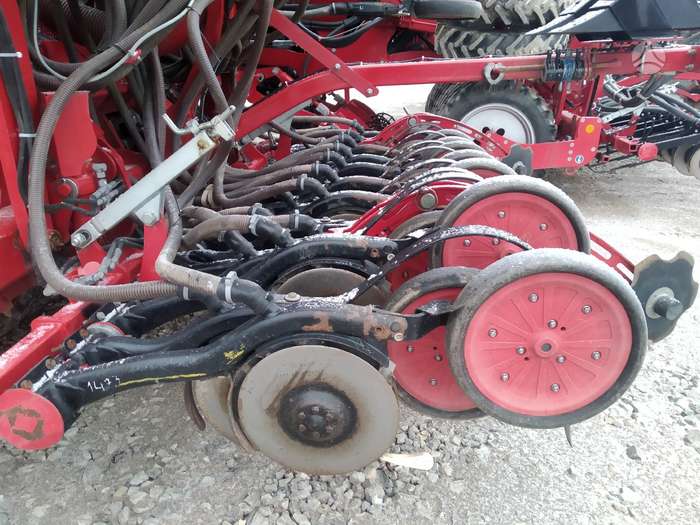

Press wheels 34 cm diameter
Seed covering harrows
Pre-emergence markers
Tramline valves 4 pcs.
Hydraulic seed flow fan drive from tractor hydraulics
Recommended tractor hydraulic pump capacity from 100 l/min
Lighting
Country of origin: Germany.
4982 ha
