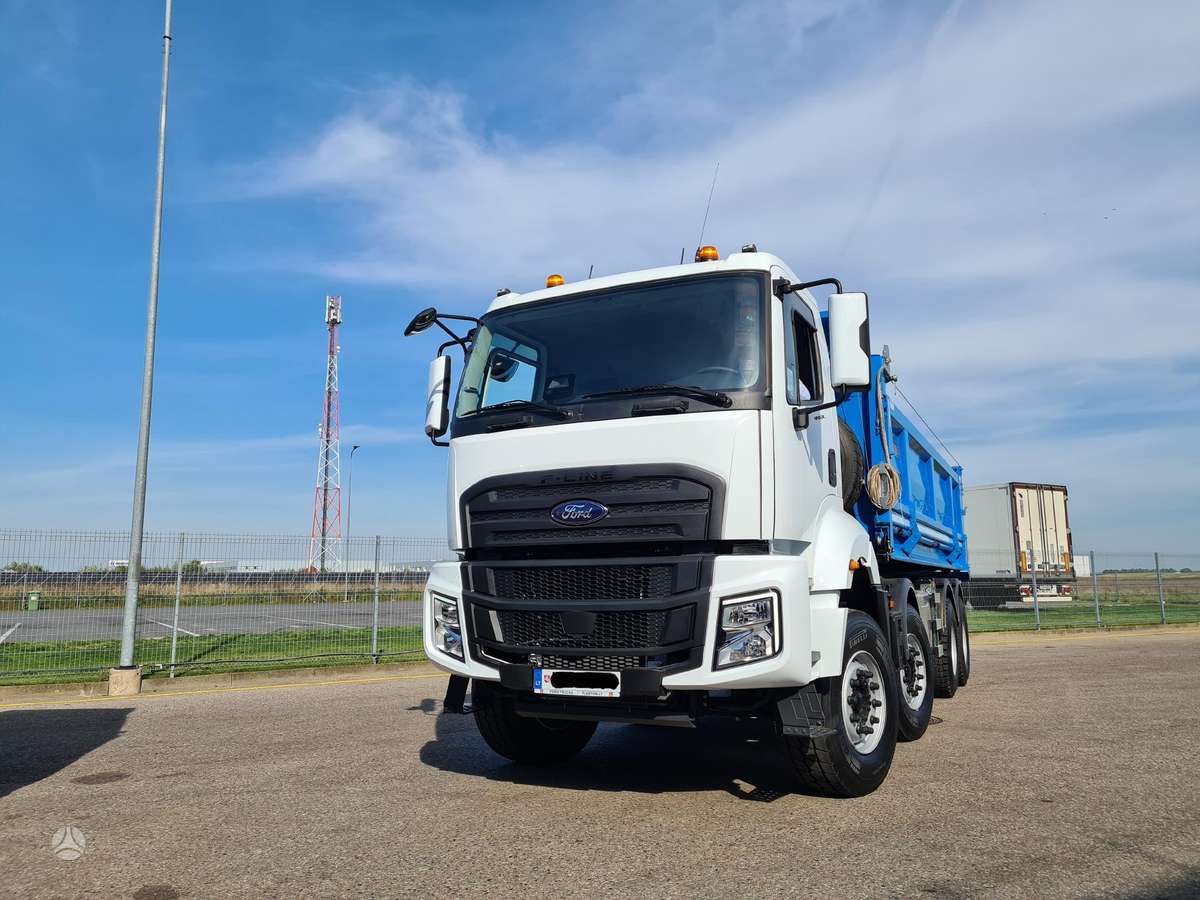

Main information:
• Model: Ford 4145D L

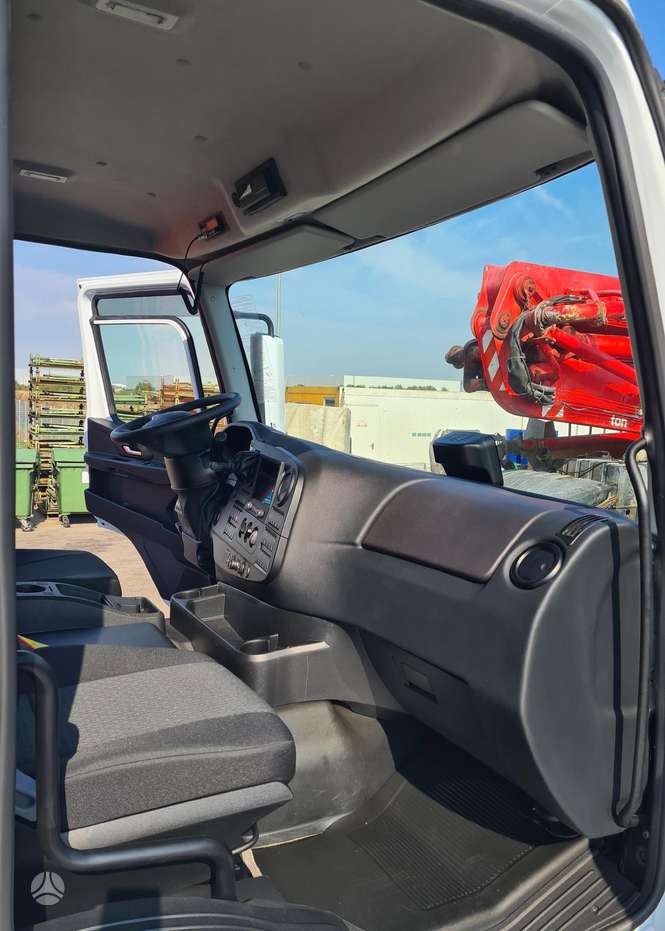

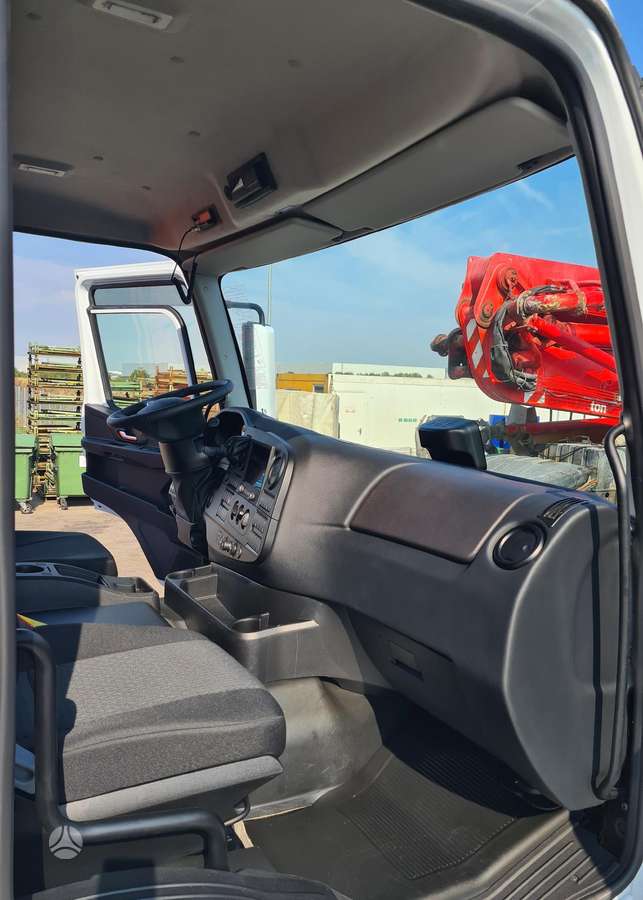

• Cab: day cab, without sleeper berth
• Seats: 2 (driver + 1 passenger)
• Gross weight (legal): 32,000 kg
• Technically permissible mass: 37,000 kg
• Axle configuration: 8x4
• Wheelbase: 5100 mm
• Cab color: WHITE

Engine:
• Type: Ford Ecotorq 12.7 l
• Displacement: 12,740 cc
• Power: 450 HP (330 kW) at 1,800 rpm
• Torque: 2,500 Nm at 1,100-1,200 rpm
• Emission standard: Euro 6E

Gearbox:
• Automatic transmission, Ecotorq 16S 2600 OD (14.107 - 0.823)

Chassis:
• Frame thickness: 8 mm, reinforced
• Frame strength: 500 MPa
• Suspension (front / rear): 90 mm parabolic leaf springs / parabolic suspension
• Tyres: front 385/65R 22.5, rear 315/80 R 22.5, rims 22.5 x 9 steel

Other:
• Brakes: disc, 430 mm x 45
• Engine brake: max. 320 kW
• Batteries: 24V, 2 x 12V, 225 Ah
• Alternator: 130 A, 6.5 kW
• Fuel tank: 315 l, aluminum
• AdBlue tank: 55 l

Standard equipment:
• Air conditioning

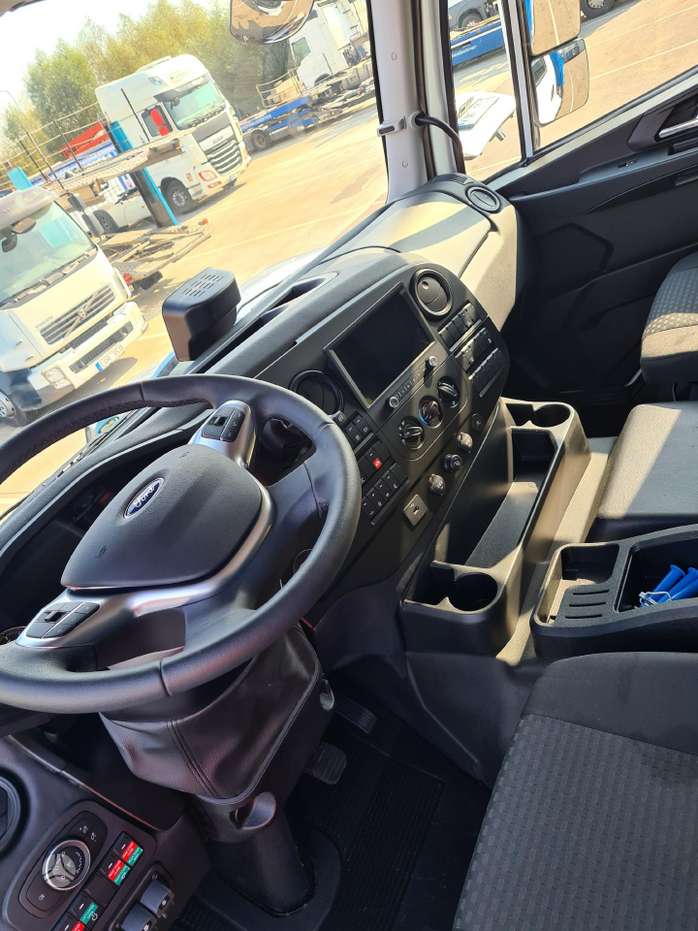

• Multimedia system with 9‘‘ touchscreen, navigation, BT, USB, Apple CarPlay, Android Auto
• Pneumatic cab suspension
• Gearbox power take-off with in-cab control (PTO)
• Cruise control
• Engine brake
• Disc brakes
• Electric windows
• Electrically adjustable and heated main side mirrors
• Electrically adjustable low beam height
• Adjustable steering column (height + depth)

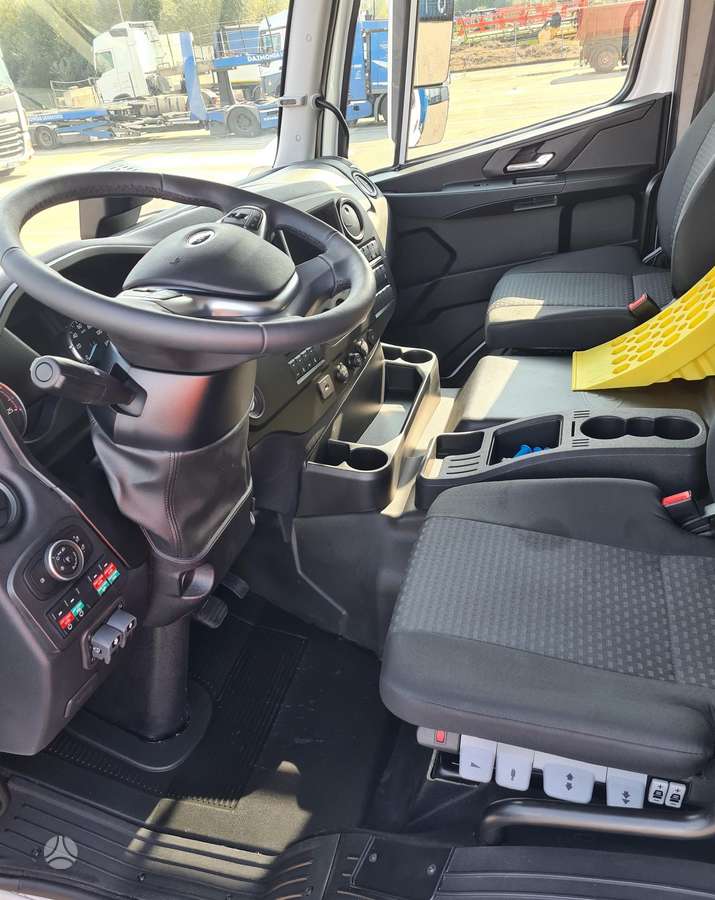

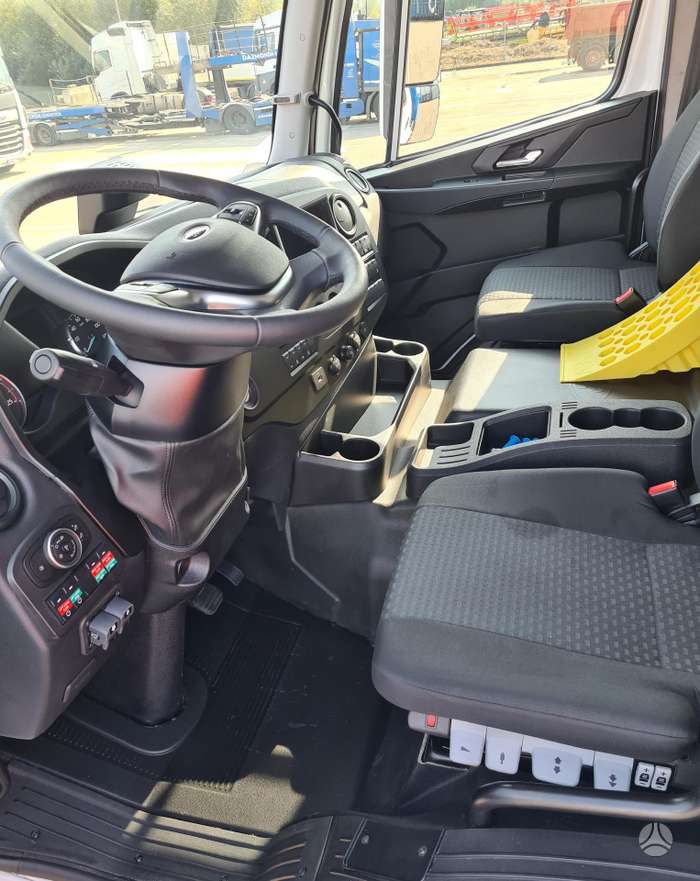

• Pneumatic, heated driver's seat with adjustable lumbar support
• Clutchable air compressor (for fuel economy)
• Anti-lock braking system (ABS)
• Brake pad wear indicator
• Immobilizer
• "Follow-me-home" lights
• Rear differential lock
• Digital tachograph
• Front towing hooks
• Short bumper
• Automatic Traction Control (ATC)
• Electronic Braking System (EBS)
• Advanced Driver Assistance Systems (ADAS system):
• rear view camera,
• moving-off information system,
• blind spot indicators,
• tyre pressure sensors,
• emergency braking signaling,
• alcohol interlock pre-installation,
• traffic sign recognition,
• driver alert signaling,
• lane departure warning
• Ford ConnecTruck telematics function

Additional factory equipment:
• Winter pack: fuel delivery system adapted for cold climates
• Coupling device - trailer hitch with electrical and air connections
• Orange beacons
• Reinforced wheel rims
• 8T load capacity front axles
• Wide front axle tyres 385/65R22.5

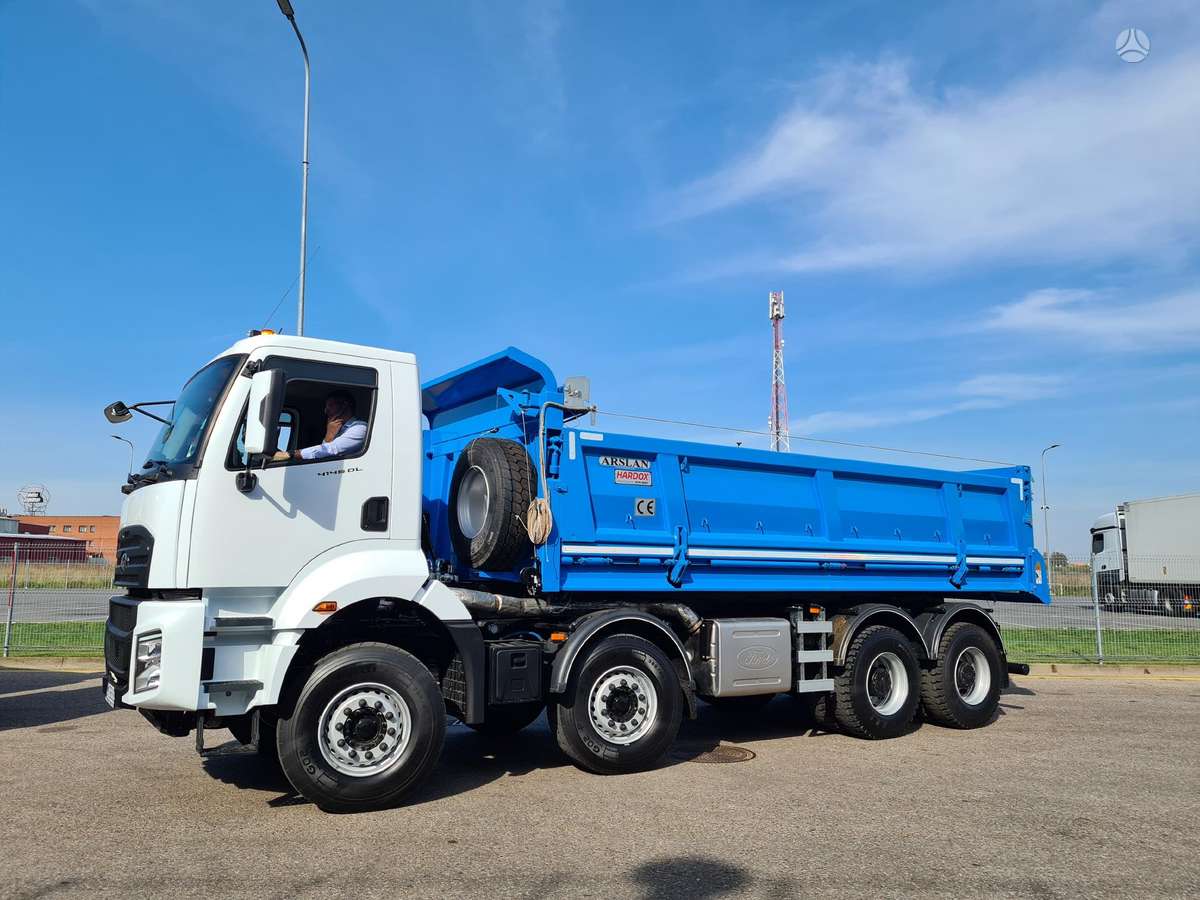

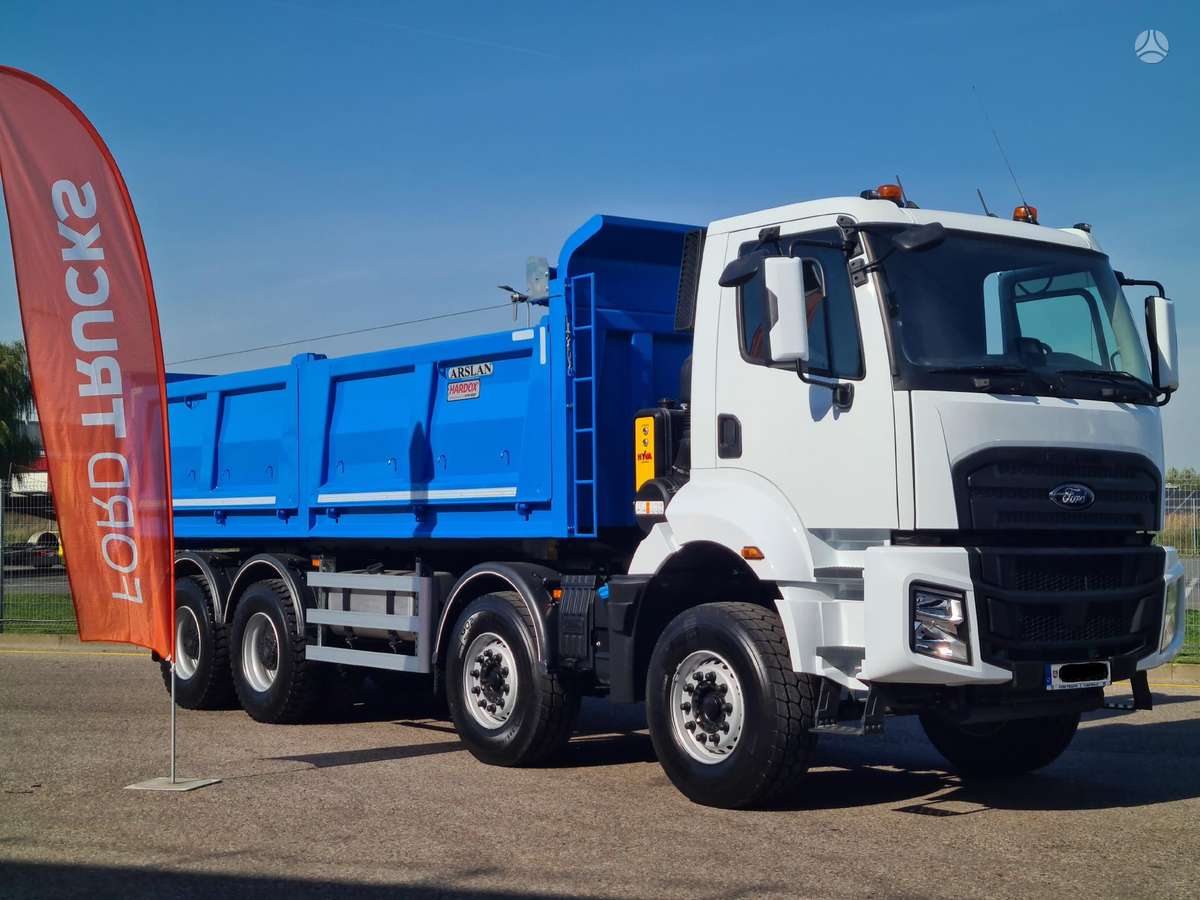

Three-way tipper superstructure with Bordmatik on the left side

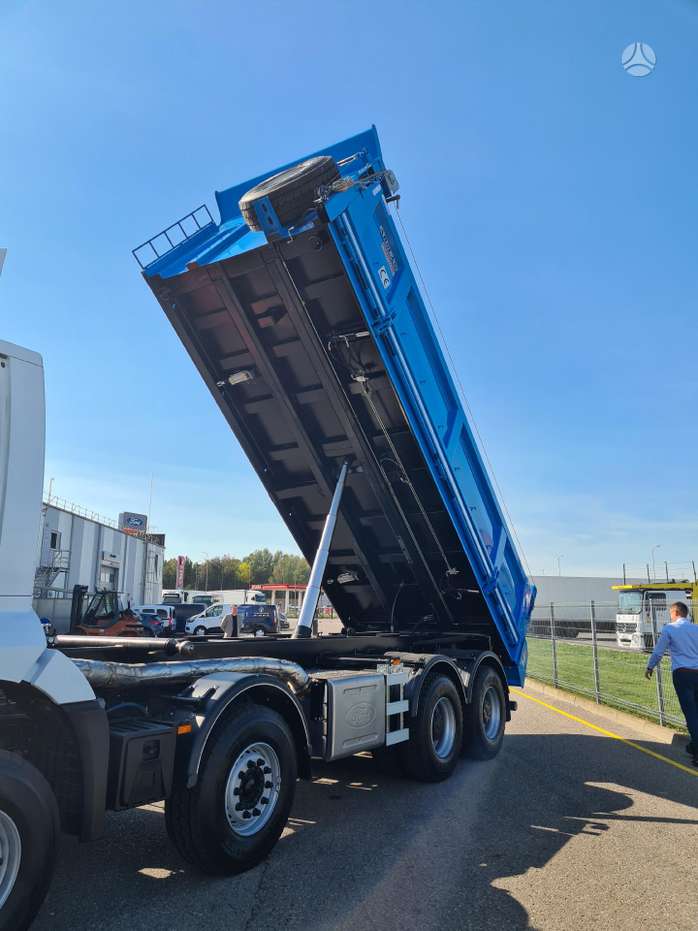

• Type: three-way tipping (to the rear and both sides, Bordmatik on the left side).
• Volume: approx. 14 m3.
• Internal dimensions (approximate):
• length 6300 mm;
• width 2,350 mm
• depth 1000 mm;
• Body material: Hardox 450 steel.
• Steel thickness:
• floor – 6 mm;
• front, rear, and side boards – 4 mm.
• Side boards: right side - swinging, left side – automatic opening "Bordmatic"
• Tailgate: swinging opening, mechanical.
• HYVA hydraulic system:
• hydraulic cylinder: Three-way tipping telescopic HYVA cylinder with safety valve;
• hydraulic pump;
• oil tank;
• PTO in the driver's cab.

Standard equipment:
• Mudguards over rear axles
• Toolbox
• Reflector on the tailgate
• Side protection rails
• Hooks for tarpaulin cover
• Side lighting
• Working light
• Folding rear bumper
• Automatic tarpaulin (rolling from front to back)
• Asphalt extension
