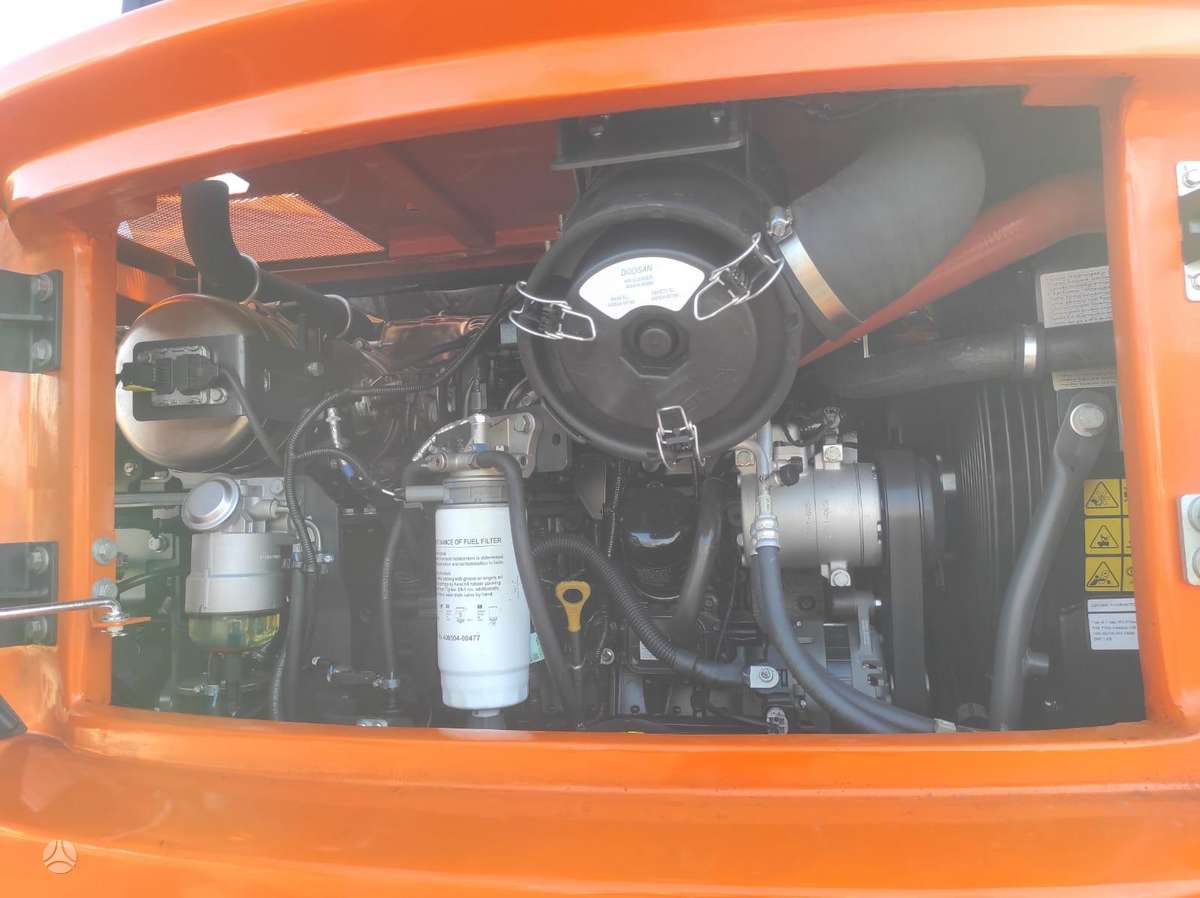

Engine Model: Doosan D34
Number of cylinders: 4 units, displacement 3409cm³
Power: 75kw/100 HP
Emission: Stage V
Transmission: Hydrostatic transmission (HST)
2 speeds with creep function, maximum speed 37 km/h.
Tractive effort 4220kgf
Hydraulic system Load-sensing system with e-EPOS (Electronic Power Optimising System)
Main hydraulic line 200 l/min
Travel hydraulic line 110l/min
Steering + braking hydraulic line 36+13l/min
Excavator system maximum pressure 295bar
Fuel tank – 160 Ltr
Cab Noise level according to EU Directive LpAd (ISO 6396:2008) 73 dB(A)
General parameters Excavator overall height at cab (D): 3011mm
Excavator overall height in transport position (C) 3952mm
Wheelbase (J) 2240mm
Excavator overall length in transport position (A) 5687mm
Excavator width at wheels (B) 2450mm
Ground clearance (F) 328mm
Digging parameters Bucket rotation angle (d) 178°
Maximum reach (A) 7820mm
Maximum digging height (F) 8265 mm
Maximum digging depth (C) 4245 mm
Digging arm 2250mm
Total excavator weight 10967kg

• Cab with heating and automatic climate control

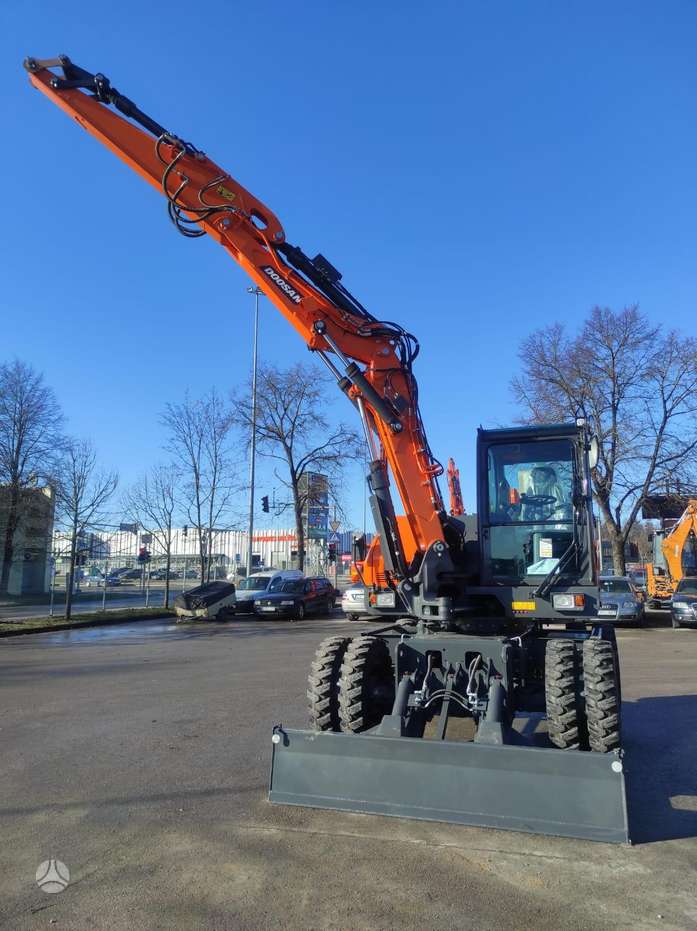

• Dozer blade

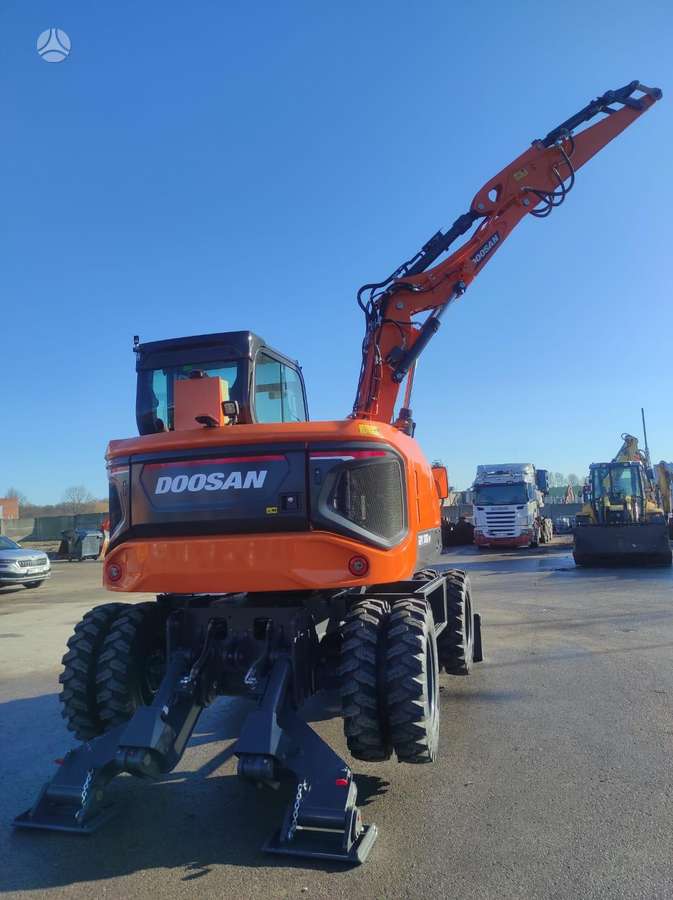

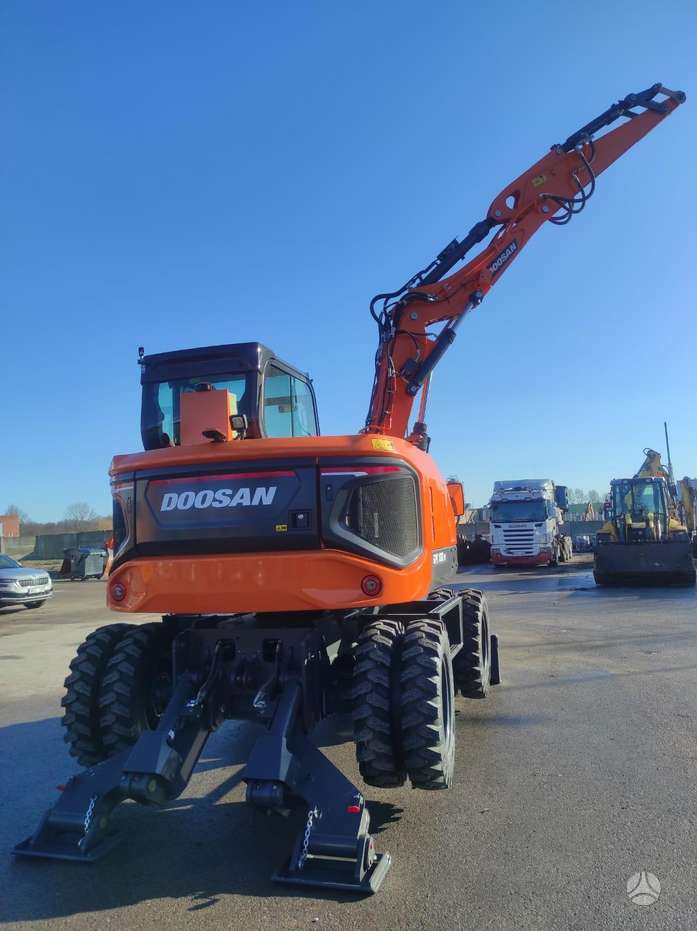

• Stabilizers
• Cruise control system
• 4-wheel steering
• Easy turning in tight spaces.
• Hydrostatic HTS gearbox
• Pump control system
• Electro-hydraulic servo control
• 3 selectable power levels (Digging, crane, travel modes)
• Independent control of the blade and each stabilizer
• Hydrostatic travel and swing braking
• LED work lights on the cab

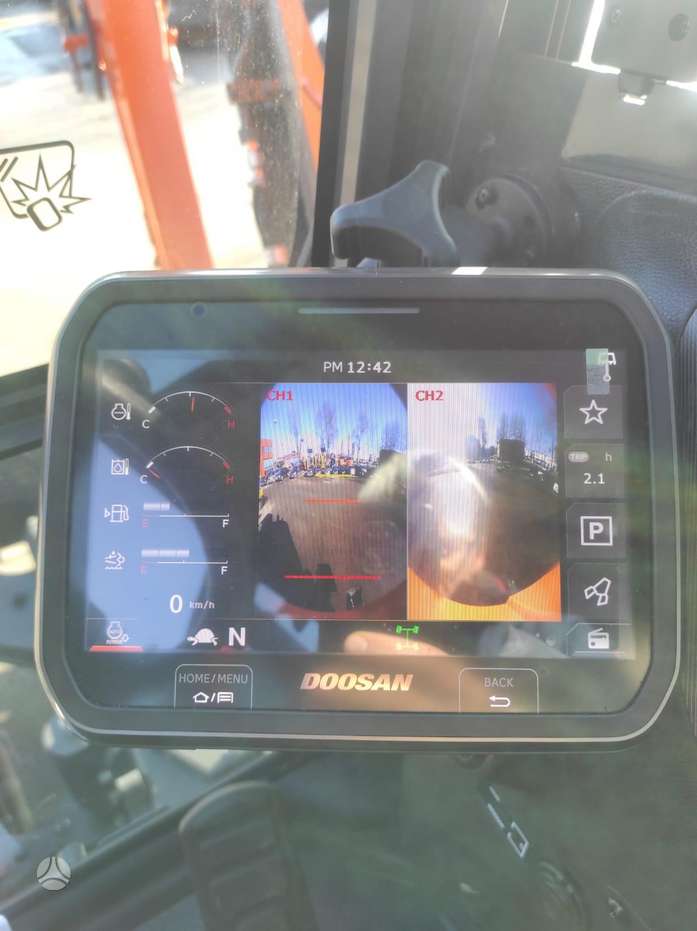

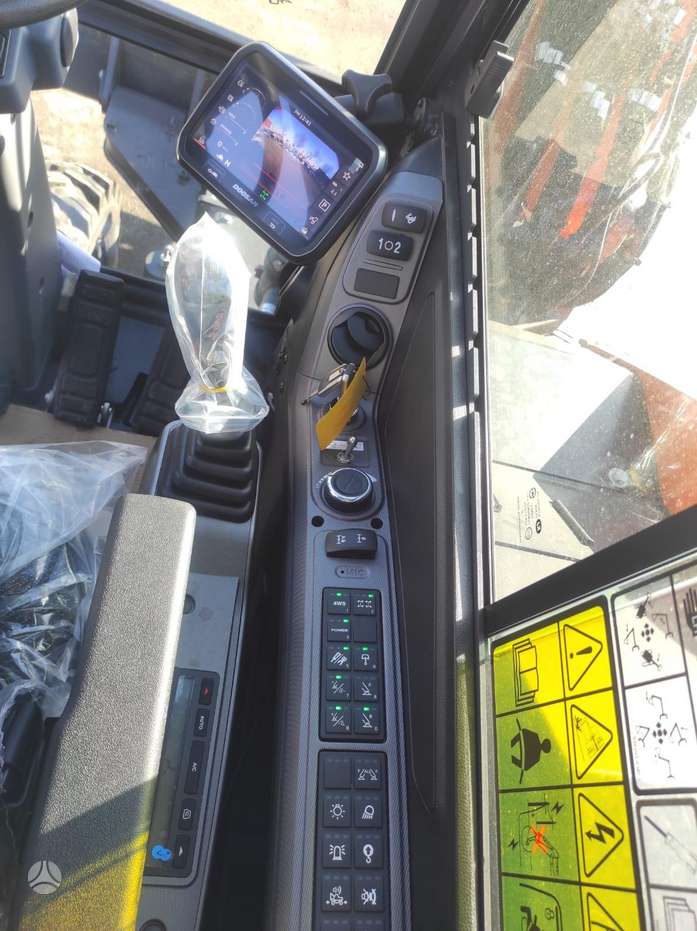

• Color LCD computer screen

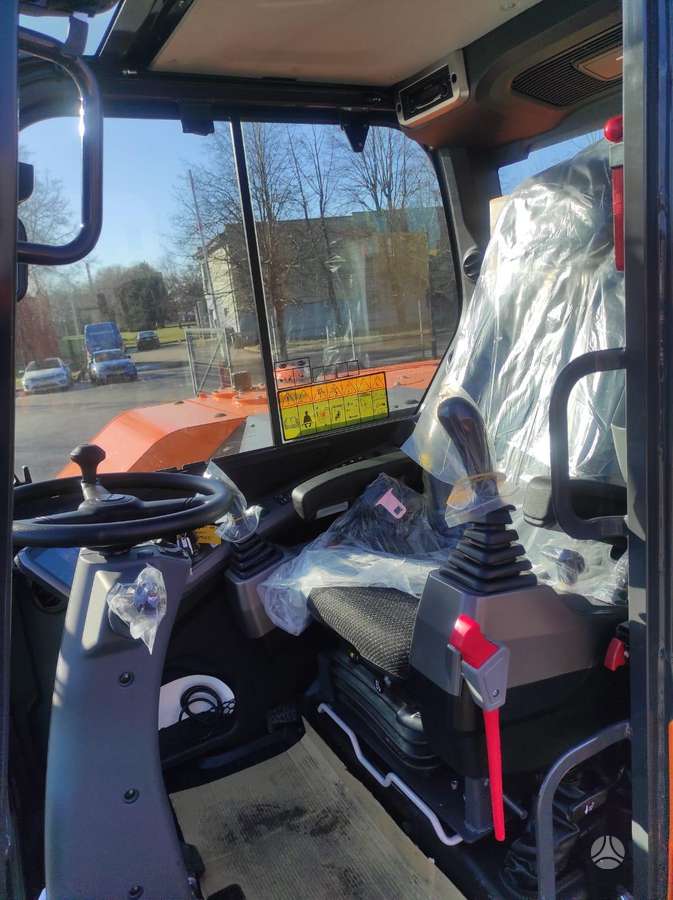

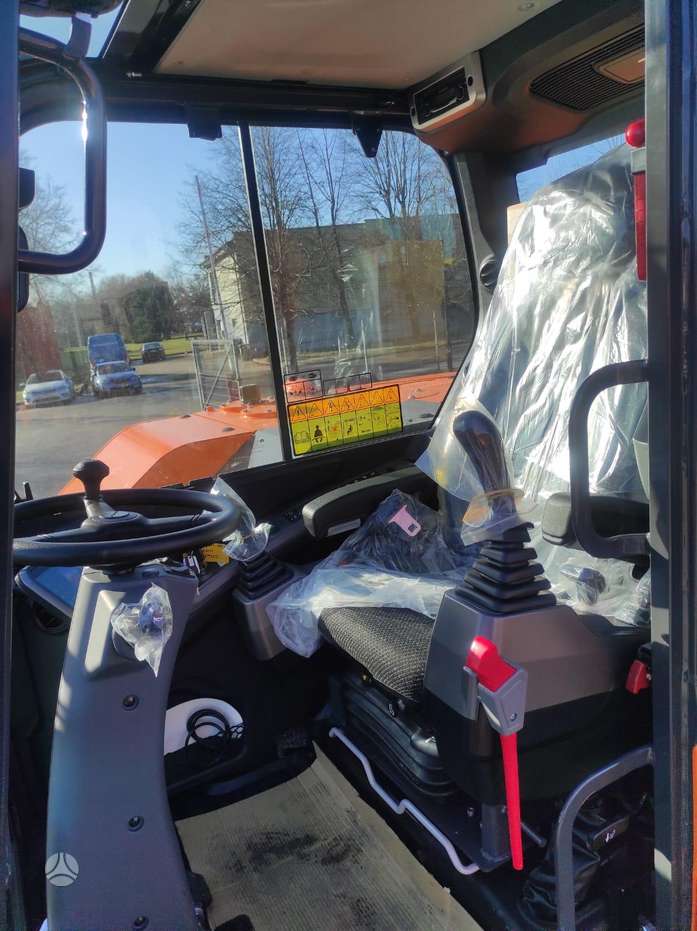

• Air suspension seat
• Overload warning
• Dual tires 8.25 - 20-14 PR
• Standard counterweight
• Beacon light
• Fuel refueling pump
• Rear view camera
• Hydraulic lines for grading bucket and Hammer hydraulic line

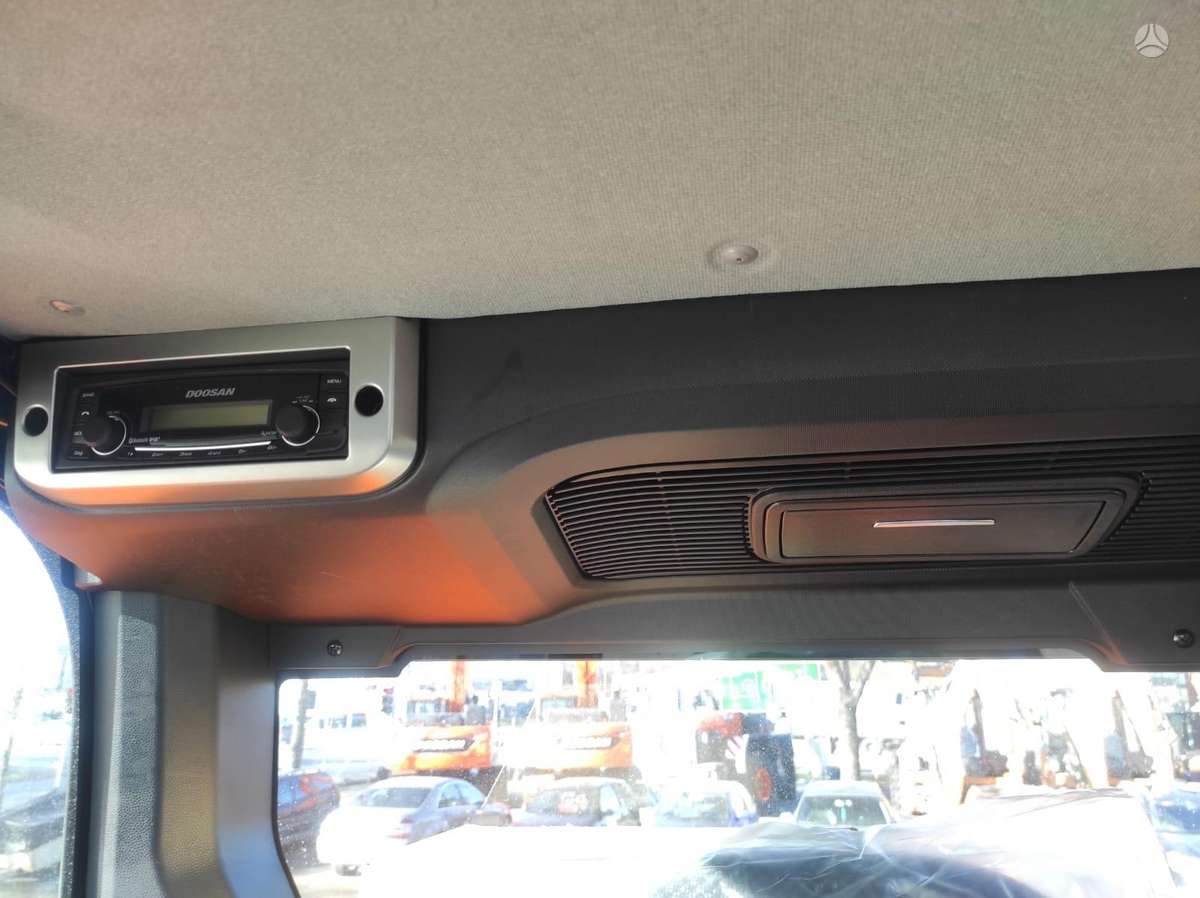

• Radio with USB
• Speed 37 km/h
• Free Doosan Connect telematics system
