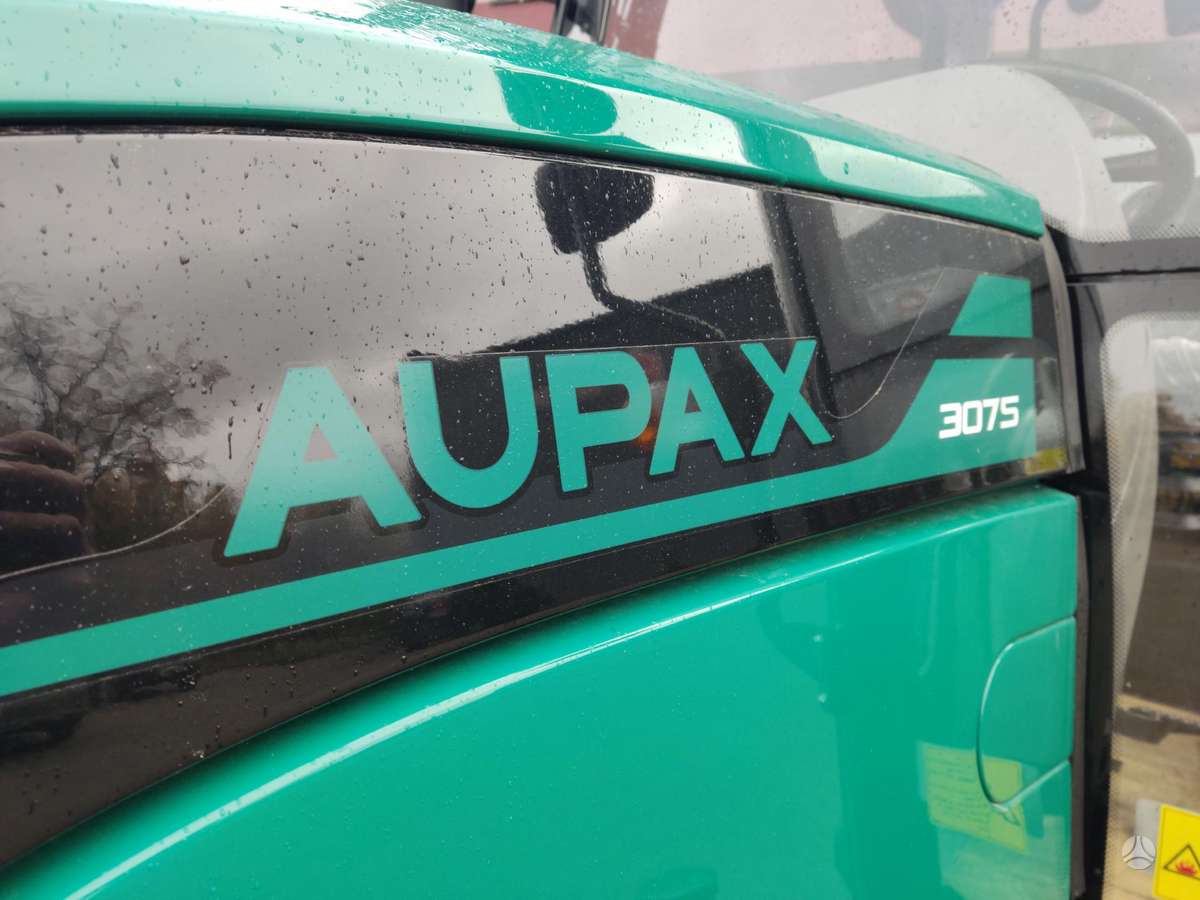

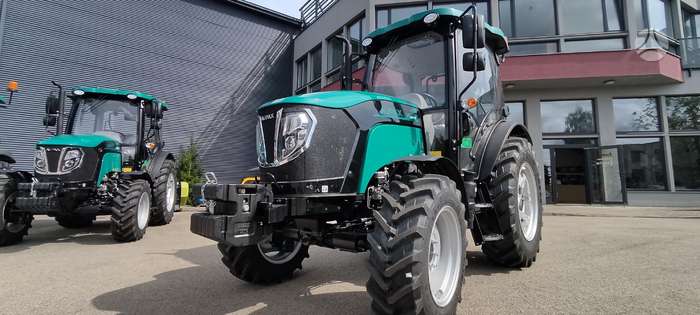

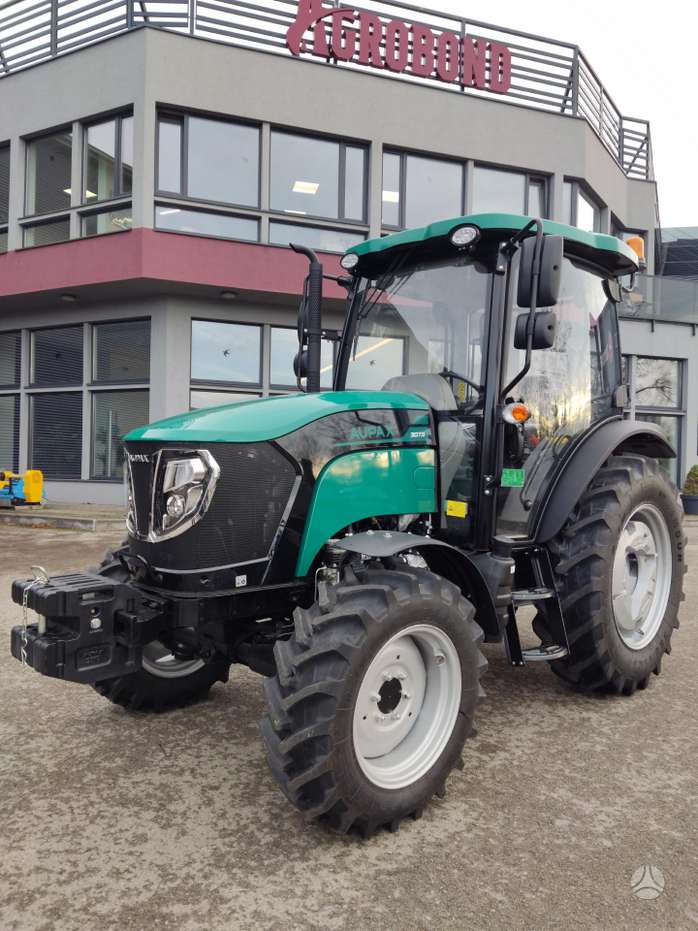

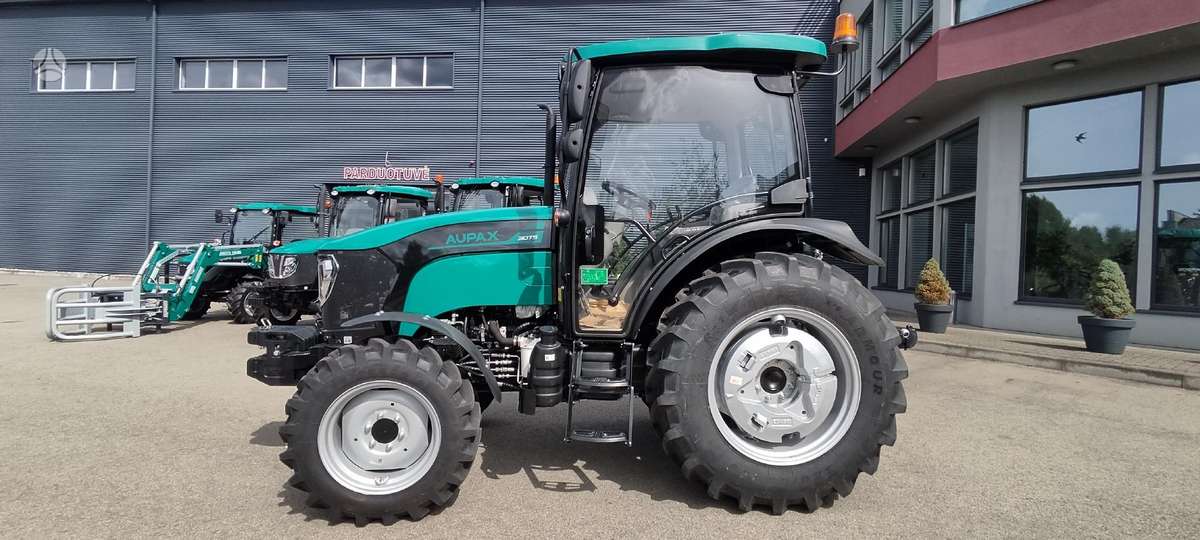

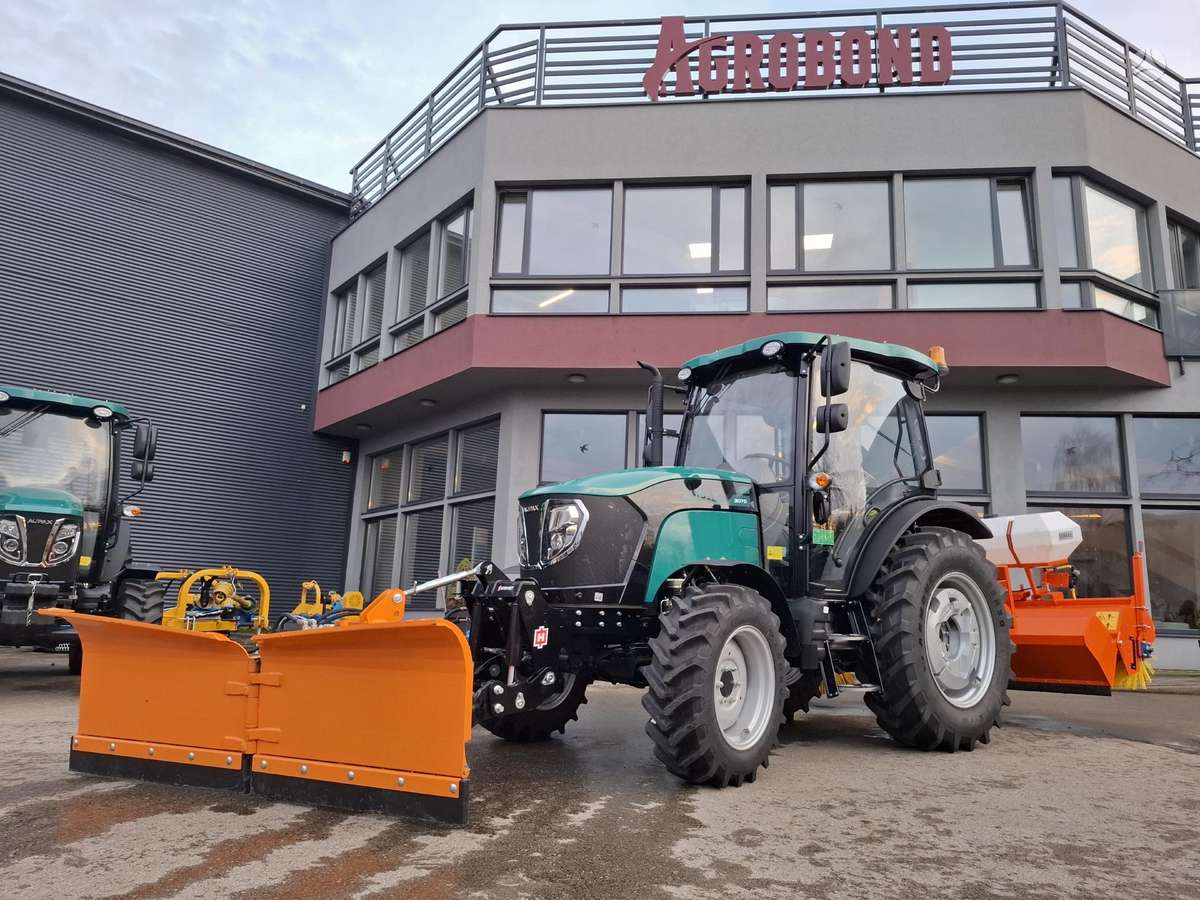

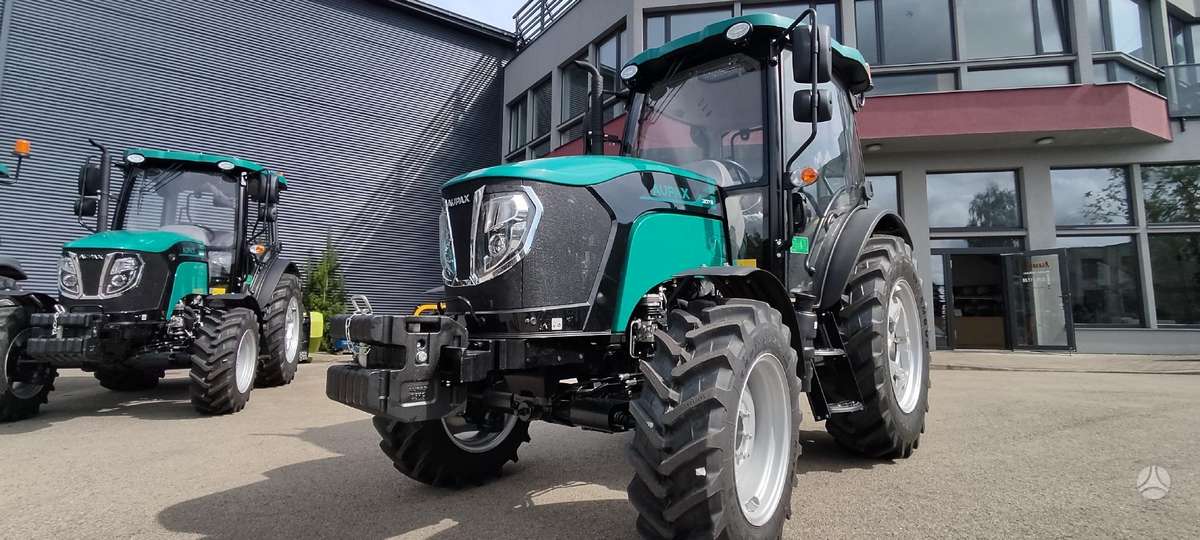

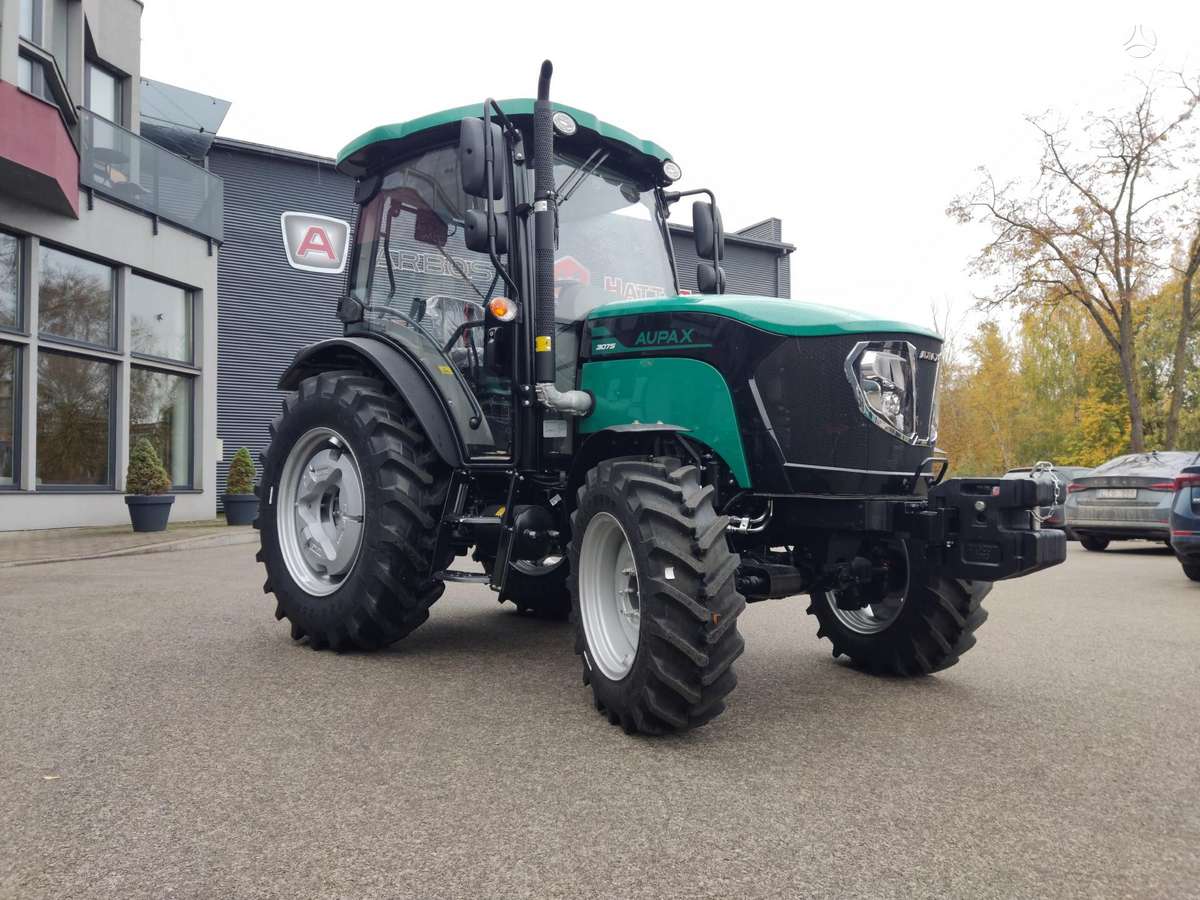

ARBOS / AUPAX 3075 - a 75 HP tractor designed for universal farm work. This tractor is perfectly suited for medium-sized farms and various agricultural sectors - from soil cultivation and sowing in the fields to orchard maintenance and farm transport tasks.

ENGINE:
Manufacturer: Doosan
Model: D24
Power: 75 HP
Displacement: 2.4 l
Torque: 320 Nm / 1600 rpm
Emission level: Stage V
Fuel tank capacity: 60 l

TRANSMISSION:
Transmission type: Mechanical, with four-wheel drive (4WD)
Clutch type: Dry type
Number of gears: 12+12, synchronized
Reverse: Mechanical
Clutch control: Mechanical
Maximum speed: 40 km/h

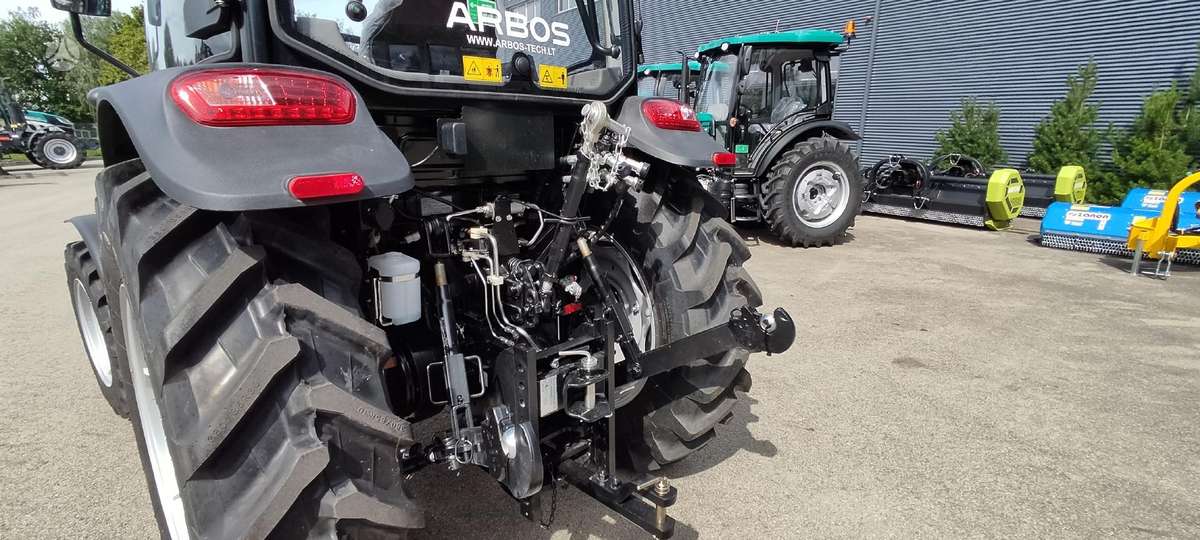

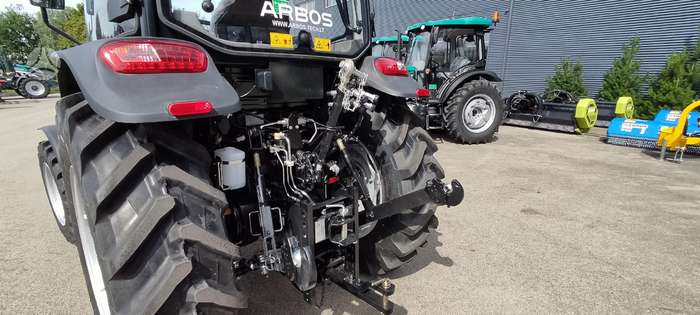

REAR THREE-POINT HITCH / HYDRAULIC SYSTEM:
Control: Mechanical
Lifting capacity: 2600 kg
Hitch category: Cat. II
Hydraulic pump capacity: 15 + 41 l/min

POWER TAKE-OFF (PTO):
Type: Independent
Number of splines: 6
Control: From the cabin, electro-hydraulic
Speeds: 540 / 1000 rpm

SIZE AND WEIGHT:
Wheels:
Rear: 380/85R30
Front: 300/70R20

Weight without ballast: 2865 kg
Front weights: 150 kg
Rear weights: 360 kg

Length: 4105 mm
Width: 1803 mm
Height: 2910 mm
Ground clearance: 400 mm

BASE CONFIGURATION:

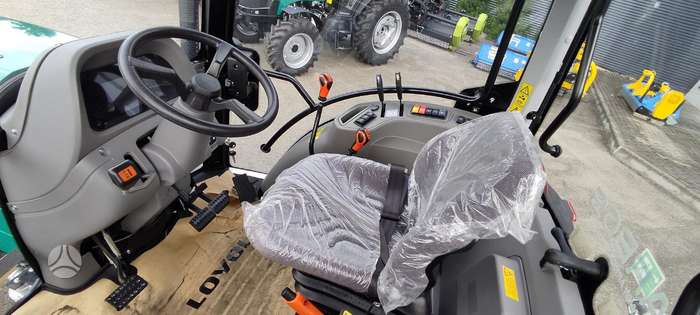

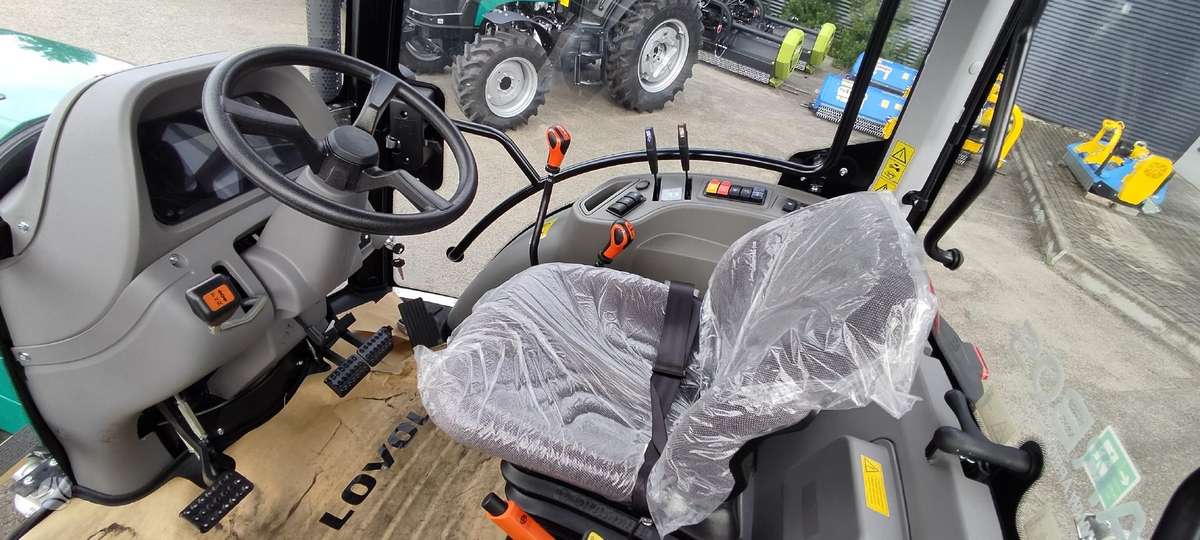

Mechanical seat

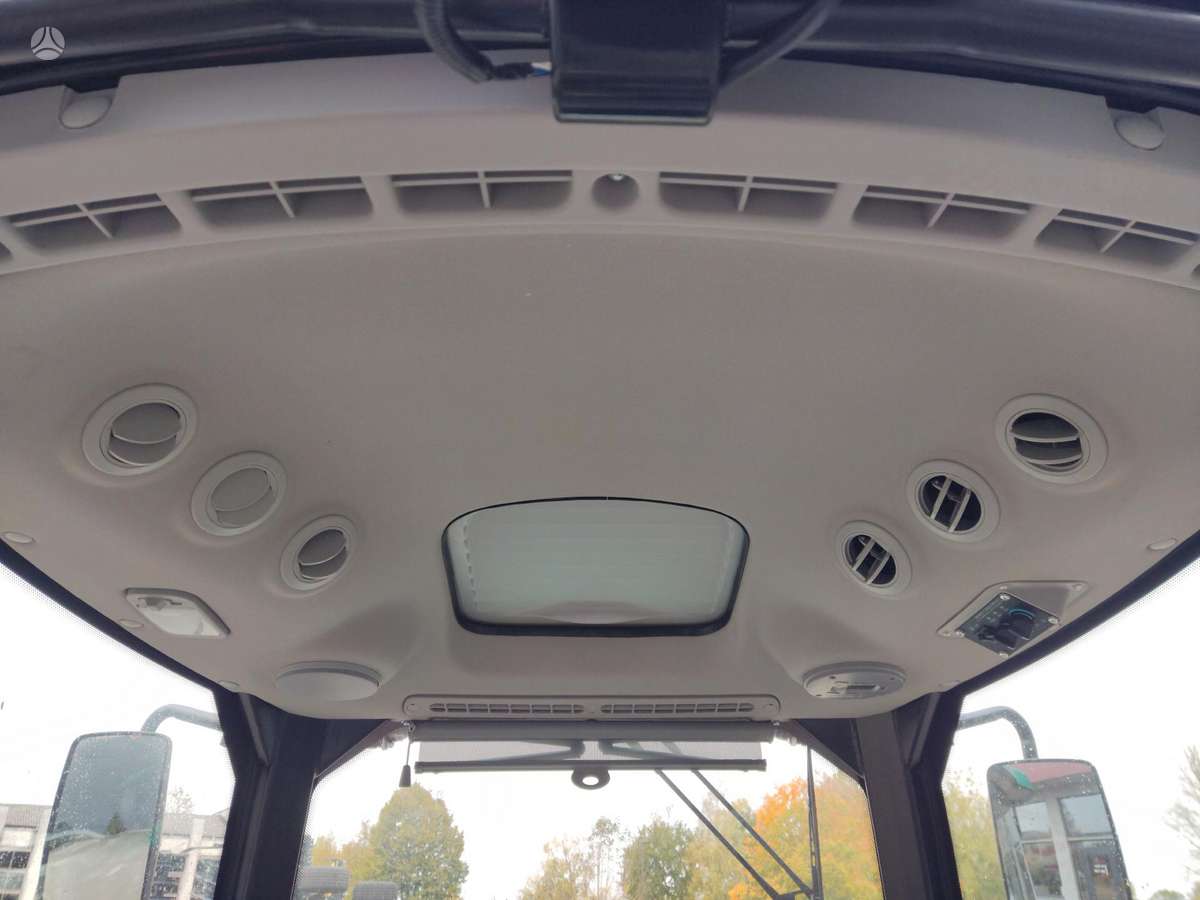

Air conditioning
Front ballast weights
Rear ballast weights
Air trailer brakes

24-month manufacturer's warranty
Delivery throughout Lithuania
